Oryx Solar Energy Pimpri Chinchwad, Pune, Maharashtra

A solar water pump has a mini power house at its heart and consists of a calibrated and matching solar array of modules – tuned with the equivalent power of pump for that particular application. The solar water pumping system is capable of running all types of electrical water pumps with applications varying from irrigation to household demands. Irrigation pumps such as submersible, surface or deep well can also be coupled with drip irrigation systems to enhance the returns from this configuration. A typical solar water pumping system is known by the sum total of solar array size that is required to run the attached pump. A 1000 Wp solar water pump is capable of drawing and pumping approximately 40,000 litres of water per day from a source that is up to 10 meters deep. This is sufficient to irrigate about 2 acres of land with regular crops. A 1000 Wp solar water pump helps save up to Rs 45,000 when compared to equivalent use of a diesel-operated pump over a year. Each solar array has a number of solar modules connected in parallel or series. Every solar PV panel generates current by converting solar radiation to electrical energy. The electrical energy from the entire array is controlled, tuned and directed by the inbuilt controller in DC pumps or through the Variable Frequency Driver(VFD) and enables the connected pump (may be submersible or surface) to draw water and feed the delivery pipelineS. The water thus drawn from ponds, rivers, bore wells or other sources by a solar water pump is pumped to supply water as required. It can be stored in tanks from where it is later channelled to fields or the supply from the pump may be coupled with drip irrigation systems to provide optimised water to fields directly.

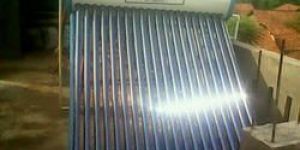

Evacuated Tube Collector Manifold is made of double layer borosilicate glass tubes evacuated for providing insulation. The outer wall of the inner tube is coated with selective absorbing material. This helps absorption of solar radiation and transfers the heat to the water which flows through the inner tube. System Capacity varies from :- 100 LPD - Infinity

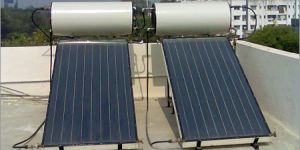

The solar radiation is absorbed by Flat Plate Collectors which consist of an insulated outer metallic box covered on the top with glass sheet. Inside there are blackened metallic absorber (selectively coated) sheets with built in channels or riser tubes to carry water. The absorber absorbs the solar radiation and transfers the heat to the flowing water. The capacity varies from :- Standard- 125 LPD-3000 LPD Non Standard - 125 LPD - Infinity

Evacuated Tube Collector is made of double layer borosilicate glass tubes evacuated for providing insulation. The outer wall of the inner tube is coated with selective absorbing material. This helps absorption of solar radiation and transfers the heat to the water which flows through the inner tube. The product range veries from 100LPD-500 LPD

Solar powered LED street lights uses Promptec LED Lights, which are the best model in its category in the world and saves 60 to 70% energy when compared to conventional lights. Highly Optimized thermal design for guaranteed LED life Dust and water protection design meeting IP65 standards Available in A/C, D/C solar and hybrid models High precision constant current LED driver (Greater than 90% efficiency) Optimized electrical and thermal design to deliver life greater than 15 years Integrated with industry leading LED's of 120 to 150 Lumen / Watt with LM80 certifications Highly optimized photometry to achieve greater than 80 Lm / Watt efficiency with LM79 Certification

There is no end to the ways solar energy is making a difference to our lives. For example we can slap solar panels on our roofs to get free energy, and power small items like calculators via their small inbuilt panels. We have following solar gadgets:- solar all in one street light solar garden light solar reading lamp with torch & radio solar lanterns with torch & radio solar study lamps solar motion sensor light solar lanterns with radio & tv solar foldable panels solar task lights solar portable led bulbs solar home light solar power bank solar emergency lights solar bags solar portable fans solar eccodiva

The system is provided with battery storage backup sufficient to operate the light for 10-11 hours daily. The system is provided with automatic ON/OFF time switch for dusk to down operation and overcharge / deep discharge prevention cut-off with LED indicators. Oryx Solar Energy CFL lights are the best in its category in the world It is built with International Standards in consideration Highly Economic and Reliable Efficient Design with the best technology Designed with the best technology with all weather and climate conditions in consideration Micro controller based charger and CFL inverter Solution Intelligent input battery voltage and current monitoring Built-in Lamp current and voltage Limitation Function During ignition Mode

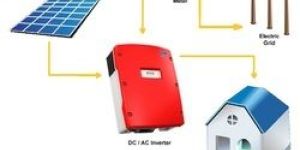

Grid-connected or utility-interactive PV systems are designed to operate in parallel with and interconnected with the electric utility grid. The primary component in grid connected PV systems is the inver ter, or power conditioning unit (PCU). The PCU converts the DC power produced by the PV array into AC power consistent with the voltage and power quality requirements of the utility grid, and automatically stops supplying power to the grid when the utility grid is not energized. This allows the AC power produced by the PV system to either supply on-site electrical loads, or to back feed the grid when the PV system output is greater than the on -site load demand. At night and during other periods when the electrical loads are greater than the PV system output, the balance of power required by the loads is received from the electric utility This safety feature is required in all grid-connected PV systems, and ensures that the PV system will not continue to operate and feed back onto the utility grid when the grid is down for service or repair.

An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners that have access to the grid, off-grid solar systems are usually out of question. Here`s why: To ensure access to electricity at all times, off-grid solar systems require battery storage and a backup generator (if you live off-the-grid). On top of this, a battery bank typically needs to be replaced after 10 years. Batteries are complicated, expensive and decrease overall system efficiency. The capacity varies from :- As per customer specification Advantages: Off-grid systems allow home owners to build in remote areas where there are no power lines or limited access to power utilities. They can be thousands of dollars cheaper than having power cables installed. No electricity bills No electric rate hikes You�ll have access to power when grid-reliant customers face power outages, grid outages and rolling blackouts. � You�ll reduce your carbon footprint and decrease your dependence on energy through more efficient use of power.
