Paper Band Filters Dealers in Pune

• Filter Type: Cartridge Filter
• Filter Medium Material: Metal
• Flow Rate (cubic meters/hr): 0-500

Clients can approach us for placing orders, timely deliveries of the same are guaranteed with us. Following the strict packaging guidelines, we make sure that the range of products we offer are packed sternly to evade loss/damage. By this, we ensure that the products are in safe condition during handling, warehousing and transportation.   Specifcation : As per customized Features : Corrosion resistance Sturdiness Durability

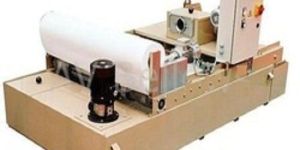

PAPER BAND FILTER  The paper band filter is a combination of a wire supported mesh with straight rod conveying the filter paper as the filtration medium. This is the fully automatic & includes a clean coolant tank, dust bin, non woven synthetic filter fabric (normally called as filter paper) driving system, control system.  Flow rates from 40 to 850 litres/min.  Various grades of filter media. Integral coolant pump option Gravity feed from as little as 400mm from floor level. APPLICATIONS :-  For the separation of particles from all types of liquids.  Machines such as grinding machines, washing machines,lathes, rotary and inline transfer machines, honing machines, tube drawing machines, process waters and all types of solidsliquid separation.  Water treatment and effluent control, etc. ADVANTAGES:-  Low Running Costs The power required is minimal, as the filter only operates when the filter medium is contaminated, so only operates a few times a day. Rolls of filter paper may last many months and are competitively priced.  Easy to Install The unit is free-standing and only needs gravity inlet connection, return pipework to the machine (flexible or rigid pipe) and a mains electrical connection. In all, three to four hours work.  Liquid Life Coolant life is greatly extended with reduced topup.  Bacterial growth is inhibited by the efficient removal of contamination  Labour Saving The roll of filter paper and collection bin only require occasional attention. PRINCIPLES OF OPERATION:-  The coolant enters the filter via a flow dispenser and falls directly onto the filter media bed, which is retained in a pool state by an endless steel mesh belt. The coolant passes through the media which retains the solids and flows directly into the clean tank where it can be pumped back to the machine head. When the media is contaminated, the liquid level rises raising with it a ball float, which in turn actuates a switch and causes the endless belt to move forward via a reduction geared unit. The contaminated filter media is discharged into a waste bin. Whilst the belt is moving forward, the clean media is brought on, thus allowing the coolant to pass freely and the float to fall.

• Power Source: Electric
• Automatic Grade: Automatic
• Brand: Drasla
• Flow Rate: Upto 1200 LPM
• Frequency (Hz): 50 Hz
• Material: Steel
• Paper Size: 1300 mm

We are leading Paper Band Filter supplier in Pune. our product is suitable for excellent filtration, Compact design, Efficient filtration. which are available at a wholesale rate.

We manufacture eco type paper band filters that are mounted on rollers for ease of shifting during tank cleaning. They do not have any electrical panel. The dirty filter paper is wound on a mandrel for easy disposal while the dirt collected is stored in a bin. They are suitable for fine coolant filtration for honing, grinding, lapping, gun drilling, etc. For small individual machines. Working fluid with dirt is exposed to finned magnetic separator first. After magnetic separation the fluid drops in paper band filter trough. A float-actuated clutch derives motion from a common drive & indexes dirty filter paper.

Band filter are the simplest and oldest form of filters. Because of its simplicity in design it is still preferred choice for many application. Also check ourCompact Vacuum filter   Filter media is laid on conveyor. This is fitted on tank. Dirty fluid drops on the media. Clean fluid is collected in the tank below and pumped back. When media chokes, level starts rising above the media. This is sensed by a level switch. Dirty media is conveyed out by geared motor.   Features and Benefits Suitable for fine filtration. Filtration capacity: 50 l/min to 300 l/min. Without conveyor. Very Low maintenance. Mounted on rollers. – Tank can be cleaned easily. Fits in 150 mm above tank level. Dirty paper wound on separate mandrel. Totally automatic operation. Common drive for magnetic separator. Very Compact Design. Ideal for individual machines Applications  Diesel Injector Nozzle  Cylinder Liner Honing  Ball Bearing  Taper Roller Bearing  Cylindrical Bearing  Tapping  Crankshaft Cast Iron Machining   Piston Rod Grinding  Water pump shafts Grinding  Diesel Injection Nozzle Grinding  Cylinder Head Cast Iron Machining  Cylinder Block Cast Iron Machining  Breakliner Cast Iron Machining  Bearing Inner Race and Outer Race Grinding

Very compact. Magnetic separator & band filter combination is accommodated within • 150 mm above the tank top, reducing the floor area for same volume of tank. • Band filter unit is mounted on rollers for ease of shifting during tank cleaning. • Common drive for magnetic separator & paper band filter, makes it economic. • No electrical panel hence reduced cost & maintenance. • Dirty filter paper is wound on a mandrel for easy disposal while the dirt collected is stored in a bin.

• Filtration capacity: 50 l/min to 300 l/min.

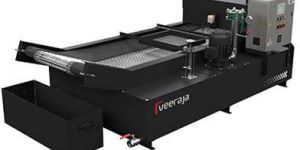

Band filter are the simplest and oldest form of filters. Veeraja ECO Band filter is one more step towards additional simplicity. This band filter does not have a moving conveyor. This eliminates the maintenance concerns of jamming and breaking of conveyor. A standard magnetic separator can also be added to improve on the efficiency of the band filter.
