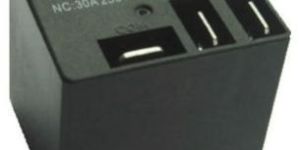

PCB Relay Dealers in Pune

• Type: Pcb Relay
• Condition: New
• Current Type: DC
• Country of Origin: India
• Brand Name: Tara Relays

hp90 co 12v 40a pcb relays t typehp90 co 24v 40a pcb relays t typehp90 no 12v 40a pcb relays t typehp90 no 24v 40a pcb relays t type series hp90 contact configuration 1 form a, 1 form b, 1form c current rating (no/nc) 40a/30a at 240v ac electrical life* 50,000 ops coil voltages various dc voltages dielectric (kv ac) between contacts 1.5 between coil and contacts 2.5 / 4 typical applications ups, stabilizers, automation, accl, air conditioners, hvac, pump controllers, domestic appliances etc. special features international standard footprint 4 kv dielectric version available versions unenclosed dust protected flux proof wash tight termination pcb mounting style pcb size (lxbxh) mm 32.2x27.2x20.1 weight (approx. ) gms 25

• Packaging Type: Carton Box
• Overall Weight: 10KG
• Usage: Factories, Power Plants
• Specialities: Stable Performance
• Size (Inches): 2-4INCHES
• Overall Dimension: 275x90x285mm
• Witdh: 50-80mm
• Relay Height: 30mm
• Relay Length: 20mm
• Brand Name: LEONE
• Material: Plastic
• Shape: T
• Color: Black
• Voltage: 12V
• Condition: New
• Finishing: Polished
• Phase: Single Phase
• Current Type: AC
• Mounting Type: PCB Mount
• Power Consumption: 2W-5W
• Number of Poles: 3 Pole
• Terminals: 6 Terminal

• Brand Name: TARA
• Country of Origin: India

The entire range of 90, 91 and 93 relays in 20,30and 40A. Various coil voltages available. UL certified range also available.

• Insulation Resistance: 100 M Omega
• Dielectric Strength(Betweem Coil & Contacts): 1500VAC
• Electrical Life: 1 * 10 to Power 5
• Mechanical life: 1 * 10 to Power 6
• Operating Temperature: -25 Degree C
• Terminal Type: PCB
• Weight: 28gm Approximately
• Contact Form/Resistance: 1C / 100 M Omega Max. @ 1A/ 6VDC
• Contact Material: Ag Alloy
• Contact Capacity: 40A @ 250VAC / 40A @ 28VDC
• Coil Volatge(DC): 12
• Coil Power Consumption: 0.9W
• Dielectric Strength(Betweem Open Contacts): 1200VAC
