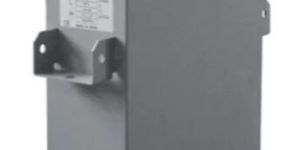

Polypropylene Capacitor Dealers in Pune

• Power: 5-50Kvar
• Application: Power
• Voltage Rating: 415-800v
• Capacitance: 41.1mfd to 410mfd

• Application: POWER FACTOR IMPROVEMENT
• Frequency: 50 Hz
• Phase: 3
• Features: Highest inrush current with standing capacity .
• Rated Voltage: 5 to 50 KVAR
• Power Source: Electric

•  Standard Voltage Range:  415 / 440 / 480 / 525 / 600 VAC
•  Other Voltage Range:  up to 1000 VAC
•  Frequency:  50 HZ / 60 HZ
•  Impregnant:  NPCB
•  Insulation Level:  3 KV
•  Dielectric Loss:  <1.0 watt / KVAr
•  Capacitor Loss:  <2.0 watt / KVAr
•  Connection:  3 Ph, Delta
•  Safety:  Self Healing Property
•  Life Expectancy:  9,00,000 Hrs for normal Duty, 1,25,000 Hrs  for Heavy Duty.
•  Max. Permissible  Over Voltage:  110% of Vn Normal Duty  120% for Heavy Duty
•  Max. Permissible  Over Current:  130% of in for Normal Duty  130% for Heavy Duty

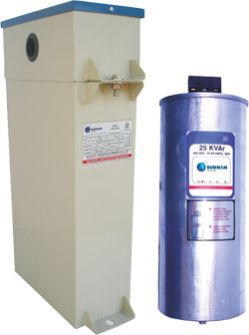

Metallized Polypropylene Film Capacitor, metallized film capacitor
