PRECIMAKE AUTOMATION Bhosari, Pune, Maharashtra

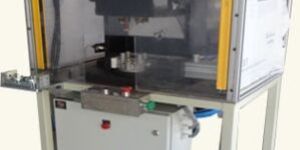

This machine manufactured by PRECIMAKE AUTOMATION is designed for FILTER HEAD valve opening and indicator testing machine. The machine operation is controlled by PLC based control panel.   a. Switch ON the control panel power supply.b. Ensure inlet Air Supply of 5 bar.MACHINE SPECIFICATIONS1. Machine overall size: 800×550×17502. Operating Height: 950mm from ground level3. Job loading/unloading: SEMI AUTOMATIC4. Power supply: 1Ǿ, 230V,50Hz, 2KVA approx. AC Supply5. Supply Air Pressure: 0.5MPa or 5barSEQUENCE OF OPERATION 1. Place the job in the fixture2. Remove both hands3. Press two hand push buttons4. Clamping cylinder clamp the job5. Sealing cylinder seals the job6. Continuity checking cylinder comes down7. Air valve open to filling the air8. Check for the ok or not ok part9. Sealing and continuity cylinder will go to home10. If part ok then punching cylinder punch on the job and declamp11. If part not ok then buzzer will on and clamping cylinder not go home12. After pressing reset button job will decamp

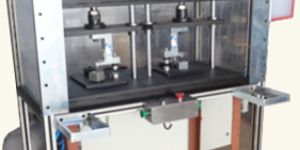

This machine manufactured by PRECIMAKE AUTOMATION is designed for tube flaring machine. The machine operation is controlled by PLC based control panel. Through HMI flaring time will be set.a. Switch ON the control panel power supply.b. Ensure inlet Air Supply of 5 bar.MACHINE SPECIFICATIONS1. Machine overall size : 1080×1550×5802. Operating Height : 950mm from ground level3. Job loading / unloading : Manually by operator4. Power supply : 1Ǿ, 230V, 50Hz AC Supply5. Supply Air Pressure : 0.5MPa or 5barSEQUENCE OF OPERATION 1. Set the flaring time from HMI and load all child parts carefully2. If home condition not satisfied before cycle start the machine will indicate the fault ( buzzer will turn on ) simultaneously HMI will display the fault occurred3. Before cycle start insure that operators hand will be removed 4. On cycle start Flaring cylinders goes down 5. After flaring time it will goes up 6. Machine is ready for next cycle

• High Pressure Leak Testing Machine Upto 200 Bar• Low Pressure Leak Testing Machine Upto 6 Bar• Hydro Leak Testing Machine

This machine manufactured by PRECIMAKE AUTOMATION is designed for tube flaring machine. The machine operation is controlled by PLC based control panel. Through HMI flaring time will be set. a. Switch ON the control panel power supply. b. Ensure inlet Air Supply of 5 bar.

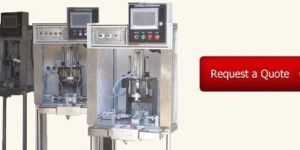

This machine manufactured by PRECIMAKE AUTOMATION is designed for tube flaring machine. The machine operation is controlled by PLC based control panel.   a. Switch ON the control panel power supply.b. Ensure inlet Air Supply of 5 bar.MACHINE SPECIFICATIONS   SEQUENCE OF OPERATION 1. Fill the fins carefully in chute2. Place the bottom side plate at specified location3. If home condition not satisfied before cycle start the machine will indicate the fault (buzzer will turn on) simultaneously HMI will display the fault occurred4. Before cycle start insure that operators hand will be removed5. On cycle start gripper grips the fin6. If fin correct then slide cylinder will placed at the assembly position7. If fin is incorrect then it automatically.8. After fin location press the top plate9. Machine is ready for next cycle    SEQUENCE OF OPERATION 1. Fill the fins carefully in chute2. Place the bottom side plate at specified location3. If home condition not satisfied before cycle start the machine will indicate the fault (buzzer will turn on) simultaneously HMI will display the fault occurred4. Before cycle start insure that operators hand will be removed5. On cycle start gripper grips the fin6. If fin correct then slide cylinder will placed at the assembly position7. If fin is incorrect then it automatically.8. After fin location press the top plate9. Machine is ready for next cycle
