Progressive Distributor
Get Price Quote
Our company is an eminent name, which is counted among the top Manufacturers and Suppliers of Progressive Distributor. One can use it as primary as well as secondary distributor. The input quantity of lubricant is divided as per the outlet ports combinations in Progressive Distributor. The best thing about this distributor is that it works on progressive principle according to which, no lubricant goes to next outlet unless metered quantity of lubricant is delivered from previous outlet. We make available Progressive Distributor in Model 2, 4, 6, 8, 10 & 12 outlets with respect to output in CC from 0.2 CC to 0.5 CC/outlet/cycle. All the models of Progressive Distributor are equipped with an indicator pin which moves to and fro in one cycle.
progressive blocks
Get Price Quote
Progressive Distributor Blocks are one of the most effective, reliable and foolproof distributors which are used in for lubrication. The feature that makes Cenlub Systems progressive so reliable is that if any of the lubrication point is blocked the entire Progressive Distributor Blocks stops functioning. With suitable monitoring device, this blockage is sensed and suitable warning is given to avoid running the machine without proper lubrication system. This way Cenlub Systems Progressive Blocks give a prior warning through which blockage can be detected and break downs can be avoided. Common Applications Steel Plants, Paper Plants, Heavy-Duty Power Presses, Printing Machines, Textile Machines, Packaging Machines, Metal Working, Material Handling Equipments, Injection Molding Machines, Mobile Equipments, Chassis Lubrication etc.
Best Deals from Progressive Distributor Block
DUAL LINE DISTRIBUTOR BLOCKS
3,500 - 8,500 Per Nos
1 Nos (MOQ)
Progressive Distributor Block
Get Price Quote
Centralised Lubrication systems by using progressive distributor block is a self monitoring and reliable method against severe operating conditions. The Oil / Grease is metered and uniform irrespective of piping lengths. The progressive block consists of plunger moving to and fro in precision bore. The movement of the piston is governed by the oil flow. The lubrication point gets dosages of oil / grease in progressive manner. Indicator pin moves forward and backward after completion of one cycle. Any failure in the system can be sensed with the help of proximity switch. The safety switch is either electrically connected in the series with the main motor starter or to a buzzer or Lub fault signal can be obtained and damages to the machine can be avoided by taking corrective action The system can be used as intermittent as well as continuous lubricating system by connecting return line to the reservoir. The standard (One Piece) progressive blocks are available in 6, 8, 10, 12, 14 & 16 outlets. Special combined blocks are made available in 14,16,18,22 &24 outlets. The modular type progressive blocks is assembly of number of blocks. They are in two sizes 60 x 80 called Primary / Master Block second is 45 x 55 size called secondary progressive blocks. For each progressive block there is an indicator pin which operates once after completion of a cycle. And it helps to pin point from which block the oil supply has failed. The system can be restarted after taking corrective action.

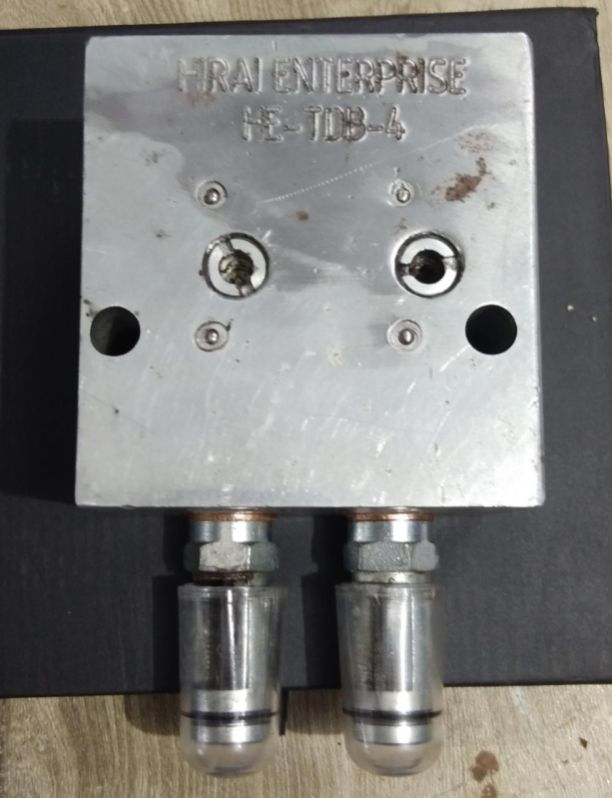

Progressive Block With Indicator Pin
Get Price Quote
Progressive Block With Indicator Pin, hydraulic tube fittings
