Proximity Switches Dealers in Pune

• Brand: SMARTsaa
• Output Voltage: 0 -10 V DC
• Current: 4-20 mA
• Sensing Distance: 2-7 mm
• Size: M 18, M30
• Shape: Cylindrical, Slot Type, Square, Miniature

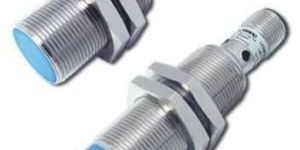

We offer an exclusive and wide range of magnetic proximity switch, which senses the presence of magnetic field which gets activated when metal approaches the switch and sends specified signal. Also offered is a non-contact, piston detection sensor for use with steel hydraulic cylinders. These magnetic sensors offer reliable piston magnet detection and are easily mounted, without the need for mounting slots or holes in the cylinder.

Prominent & Leading Exporter and Supplier from Pune, we offer Proximity Switches such as Capacitive Proximity Switches, Inductive Proximity Switches, Ultrasonic Proximity Sensor Switch, Photoelectric Proximity Switches and Magnetic Proximity Switches.

• Type: Proximity Switches
• Material: NBR
• Application: Magnetic Use
• Voltage: 200VDC
• Frequency: 50HZ, 60Hz
• Power: 0-5Amp
• Temperature: 0Dig C To + 60Dig C

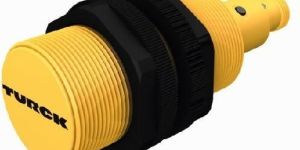

Capacitive sensors can detect metallic, non-metallic, transparent, opaque, liquid and solid, conductive and non-conductive substances reliably without the need for contact. They are thus well suited to detecting diverse objects or also bulk goods and liquids.

• Material: Metal
• Type: Proximity Switch
• Application: Magnetic Use
• Voltage: 200VDC
• Frequency: 50HZ
• Power: 0-5Amp
• Temperature: 0Dig C To + 60Dig C
• Setting Range: 0-1500pF

 Superior quality, high efficacy and long service life are the highlights of the Proximity Switches provided by us. These Proximity Switches are engineered to perfection by employing ultramodern technology and quality-certified material, at our vendor’s end. We facilitate the global buyers by doling out the Proximity Switches in required specifications at affordable prices. From Pune, we are one of the sought after Exporters and Suppliers of Proximity Switches.

Capacitive sensors work contactless, reactionless and wear-free. Thanks to their high sensitivity and the ability to detect electrically conductive as well as non-conductive objects, they can be used in many different applications. They even detect levels of liquids or solids. In addition to position measurement, further important application areas are overflow protection, dry run protection of pumps and leakage detection.

It senses non-metallic, metallic objects as well as liquid; Low counting speed. These are offered in tubular threaded housing from size M12 to M80. Has rugged construction along with IP-68 grade of protection; Very useful for liquid level monitoring applications.

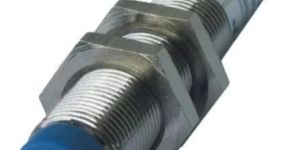

Protocontrol offers new range of long rang proximity switches. These switches are available in inductive & photoelectric types. Inductive proximity switches in size m 80 with sensing range of 40 mm, while photoelectric switches in diffuse type with sensing range of 1500 mm, and 25 mtrs in through beam version are now available. protocontrol also developed proximity switches with higher sensing range in specific size. Standard m 18 inductive switch is having sensing distance of 6-8 mm where as m 18 with higher range will give sensing distance of 12 mm. inductive proximity switches are generally used for position sensing of metallic parts. these switches are exclusively used for position, speed sensing and counting. Switches from size m 6.5 to m 80 are offered having sensing range up to 50 mm. photoelectric sensors are exclusively used in spm and pharmaceutical machinery. Long range, sensor are used in heavy industries like crane. Sensors with fiber optic cables are available to sense tablet, print mark, pouches and caps. special long range anti-collision sensor developed by protocontrol offers sensing range of 5 mtrs in diffuse mode and 20 mtrs in retro reflective mode making it unique for crane industry. protocontrol introduces a new series of ultrasonic distance sensors with outstanding characteristics. These sensors are used for distance measurement, level measurement, and control of winding and unwinding, loop control, positioning, width measurement, presence detection, collision protection, & counting.

Introduction Sai Control System offers optical proximity switches with modulated Infra Red beam consisting of transmitter and receiver. The state of the art modulation and detection circuit ensures reliable operation of sensor in hostile environment and are unaffected by temperature variation and stray light. Applications These are widely used for sensing metals and non metals like wood, glass, paper and water etc. These switches are used for automation in various industries like pharmaceuticals machines, packaging machines, food processing, textile machines, conveyor system, automobile engineering industries, cement plants, safety and security appliances.

We are offering proximity switches. sens pro's proximity switches are v0ery compactable for limit space installation. features: - ac/230v/ 2 wire ,dc 3-wire (10-30v dc) - available for flat and vertical pack, shield and unshield - plastic case for general automation industry applications: - measuring, counting, rpm measuring in mechanism, paper manufacture light industry, etc.

• Non Flush Switching Distance: 8mm
• Diameter: M18
• Max Load Current: 250mA
• Supply Voltage: 10-30 voltDC
• Switching Frequency: 100Hz
• Response Time: 1.5ms/1.5ms
• Protecting category: IP67
• Operating Temperature: -25ºC- +70ºC
• Short Circuit Protection: Yes
• Connecting Type: 2mtrs,3core pvc cable

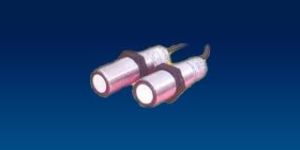

These switches are ideally suitable for level monitoring applications. The sensing range can be from 0.2 m to 20 meters. These sensors have the ability to perform in dry and dusty environments. These sensors are immune to electrical noise levels generally present in the typical industrial environment. The ultrasonic sensors find applications for Anti-collision detection for cranes, Level controller for liquids and solids, Detection of moving object, Opening Closing of doors by detecting motion.

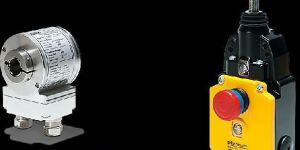

• Specialities: Non-contact detection when metallic objects approach (PSENini)

The safe proximity switch PSENini monitors positions safely without actuator, because it responds to metallic objects thanks to its inductive mode of action. On the other hand the magnetic safety switch PSENmag and the coded safety switch PSENcode are suitable for monitoring positions with an actuator.

• Brand Name: Micro Epsilon
• Operating Temperature: -269 degree Celsius to 200 degree Celsius
• Usage/Application: clean room and ultra high vacuum
• Installation height: 4mm
• Feature: Best temperature stability, Special sensor designs, Standardized production process
• Advantage: Special sensor designs

We are offering capacitive height sensor.

• Temperature: -20 to +70C
• Output: PNP / NPN
• Cable/Connector: Both
• Housing Body: Stainless-steel V2A
• Supply Voltage: DC 10-30vdc

• Material: Stainless Steel
• Short Circuit Protection: Yes
• Operating Temperature: -25 to 70 Degree C
• Storage Temperature: -40 to +85 Degree C
• Response Frequency: 1.5 kHz

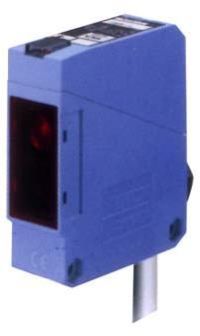

We are offering infrared photoelectric switches for automation in pharmaceutical machines, formfillseal or packaign machines, food processing, textile machines, conveyer systems, automobile engineering industreis. Chemical paint plants, film paper plants, ceramic tiles plant, safety and security applications etc.

• Material: Stainless Steel
• Shape: Cylinderical
• Brand Name: Schneider
• Current Rating (Amps): 200 mA
• Power/Voltage (V): 20 to 132 Vac
• Repeat accuray: 0.02 mm
• Use: End-of-stroke sensing of pneumatic and hydraulic cylinders

Inductive Proximity Detectors - AEROSPACE     Today inductive proximity switches/sensors manufactured by CROUZET can be found on the Major programs such as:   Airbus family: A319, A320, A321, A330, A340 Boeing 717 ATR 42/72 Falcon 50, 900, 900EX, 2000 Bombardier Challenger, Global Express, CRJ700 NH90 FOKKER 70

• Type: Capacitive Sensor
• Material: Plastic
• Application: Automobile Use, Industrial Use
• Color: Black, Red, White
• Power: 15w, 20w, 25w
• Warranty: 1year, 2years, 5years
• Alarm Range: 1.5mtr, 1mtr, 2.5mtr, 2mtr

SensPro's Proximity switches are very compactable for limit space installation. Features AC/230V/ 2 wire ,DC 3-wire (10-30V DC) Available for Flat and Vertical Pack, Shield and Unshield Plastic case for general automation industry Application Measuring, Counting, RPM measuring in mechanism, paper manufacture light industry, etc Specification Connection : Cable Type (DC Scores Dia. 4mm) Supply Voltage : 230v AC / 10-30VDC Output Mode : NPN, PNP Output Type : Normal open, Normal close??? Output Current (MAX) : 200mA Current Consumption : 8mA Leakage Current : 0.1mA Residualvoltage : 1.5VDC Response Frequency : 500Hz Reverse Polarity Protection:Equipment Short Circuit Protection : Not Equipment Hysteresis : 10%Ambient Temp/ Humidity : 25"C to SS"C/25% to 90% RH IP Protection Category : IP67 Slle (L/W/H) : L/W/H 30/11/8mm; L/W/H 30/11/11mm Remark : Suppiy power SVDC Type is available
