Purvatech Solutions Sadashivpeth, Pune, Maharashtra

Purvatech Solutions Offers indigenously developed designed Wall Mounted Enclosure with good international look for various applications. It is ideally suited for small networking installations, machine tool controllers and telecommunication applications FEATURES : • Double Hollow Aluminium Extrusions for best rigidity • Adjustable mounting rails both on front and rear • Cable entry at the top and bottom • Front Perspex door with lock • Available in two versions, single section and double • Load capacity 25 kgs SCOPE OF SUPPLY CABINET WITH PERSPEX DOOR : • Wall Mounting brackets 4 numbers • Adjustable mounting angles 4 numbers

PT 11 series, Twin rack with wooden common table top and Two keyboard trays on teleslides.

These slide into special grooves in the aluminium profile to allow fixing Front panels, Facias and Modules. These strips can be with M 2.5 and M 3 tapped holes. Maximum length 84T, Cross Section 2 mm/6 mm. Made of M.S or S.S. 304 duly electropolished.

Alluminium Three Section Ball Bearing: Support upto 70 kgs at full extension + Corrosion Resistant Ball Bearing High Quality in Stainless Steel: Capacity : Upto 30 kgs

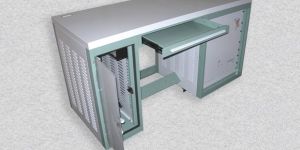

PT 11 series - Table racks with cutomised hinged side covers, with or without Leg space.   Ideal for comfortable working in sitting posture.   Keyboard and mouse tray and enclosure for computer either tower type or 19 inch rack mountable.   Can be made into various sizes.

Table racks with cutomised hinged side covers, with or without Leg space.Ideal for comfortable working in sitting posture. Keyboard and mouse tray and enclosure for computer either tower type or 19 inch rack mountable.Can be made into various sizes.

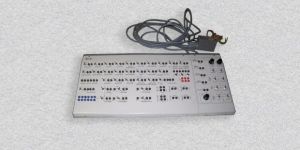

Sturdy aluminium keyboard from extruded aluminium profiles and sheets, giving a robust housing for the electronics and can be designed and custom fit to any size and type of keyboard, depending on the components All pages of the modular can open with a screwdriver. Dustproof enclosure, robust, with stand industrial and harsh use. Lightweight. Anodizing or powder coating. Screen printing available.

PT 11 Series – Stand for LED monitor and keyboard. Material MS. Offres the flexibility in mounting the monitor and keyboard, at any height. The assembly can be easily placed outside the rack so as to increase the utilization of rack space. Nickel chrome plated finish. Totally flexible assembly and can rotate easily.

Purvatech Solutions Offers indigenously developed designed Softline Floorstanding Enclosure with good international look for various applications. It is ideally suited for mobile vehicles and places where mobility of people is more. FEATURES : Fabricated out of pressure die cast corners Corner Coupling Member is a cold forged pressed item for high rigidity Extrusions made of HE 30 hard alloy are incorporated with special grooves to run RF Shielding Gasket SCOPE OF SUPPLY : Basic Frame Structure with Corner Members in Aluminium Two Side Covers Top Cover and Bottom Cover with Legs 19" Subrack mounting arrangement on Front MATERIAL & FINISH : Extrusions are made of HE 30 hard alloy Corner Members can be made of Aluminium, S.S., M.S. Available in Standard colour options DA Grey Munshell Grey Light Grey / Off white Black Blue Fully Powder Coated   Available Standard Sizes : OPTIONAL ACCESSORIES : Recess Kit -Consist of 4 vertical side and rear side members to house 19" Subracks, 4 C channels and its mounting hardware Front Door in M.S. or Aluminium Rear Door in M.S. or Aluminium Eye Bolts Caster Wheels Ventilated Grills RFI Gasket Resting Angles, Trays Cable Managers AC Power Distribution

Rubber moulded product with steel hardware, interfaces between cabinets and platform to absorb vibrations to some extent. Selection of type is done based on weight of the cabinet and frequency of vibrations. Available with weight carrying capacity of 10, 25, 40, 60 and 85 kgs.

These steel shelves are useful in supporting non 19" style equipment in 19" cabinets. 1. Stationery Shelves: To be fixed directly to the Vertical rails 2. Sliding Shelves: Are fitted with ball bearing telescopic slides Both the types are provided with Ventilation slots to aid the air circulation.

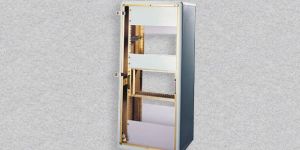

Rugggedised Rack with EMI/RFI protection is Purvatech Solutions speciality. Racks are manufactured as per the Customers Requirements, Specifiscations, Drawings. These Cabinets are subject to Tests as per JSS 55555 and ESS tests as per NAVAL standards. Many of our reputed customers have got certified for their testing centers. ELECTRO MAGNETIC COMPATIBILITY BY Purvatech Solution RUGGEDISED RACKS : Electrical, magnetic and electro-magnetic fields are everywhere. Also around enclosures and equipment housings. Technical Systems can fall a prey to these electromagnetic environment, the devices themselves may produce electromagnetic fields in the course of their normal operation, leading similarly to interference or even damage or destruction in their vicinity. EMC is attainment of a defined interference immunity (protection against external interference fields) Prevention / reduction of emitted interference (protection for the environment against own interference fields). Many of the Purvatech Solutions racks, since made of Alluminium Extrusions offer electrical devices significant protection against electromagnetic interference fields. An electro conductive connection is achieved between the outer surfaces of the enclosure by fitting a special conductive seal. The inner surfaces and the seal edges remain unpainted. Corrosion protection is provided by the aluminium-zinc coating of the base material.   Ruggedised Racks Sinusoidal Vibration Test with frequency sweep : The cabinet is mounted on its shock mounts. It is tested for the following vibration levels in all the three mutually perpendicular directions. The frequency is to be swept slowly at the rate of 1 octave per minute from 5 to 33 Hz with a constant displacement amplitude of +/- 0.125 mm. The total duration of the test is 10 hours. One hour endurance test at resonance frequency and if no resonance found one hour at 14, 23 & 33 Hz.   Shock Test : The cabinet withstands following shock test after mounting on the test bench with shock mounts using 200 kg weight falling vertically from a height of 1.5 meters, two lateral blows with a weight of 200 kg at a radius of 1.5 meters falling through an angle of 60 degrees, two end blows with a weight of 200 kg at a radius of 1.5 meters falling through an angle of 60 degrees. Ruggedised Racks Drip Proof : Test is to be carried out in fully assembled cabinet for a period of 15 min a) by keeping in equipment in vertical position, b) by keeping an equipment at an angle of 15 degree to vertical. Mould Growth : The sample component is introduced within 15 min of spraying into the chamber where working space is maintained at a temperature of 29 degrees C +/- 1 degree and a relative humidity of not less than 90% the sample is exposed in the chamber of 28 days. Salt Corrosion Test : The rack is stored at a temperature of 35 degrees C +/- and relative humidity of 90% for a period of 7 days. Bump Test : 4000 bumps at 40g, 6 ms, done in packed conditions. Fire Retardant Painting : Special painting with fire retardant paints is provided. * Responsibility of Testing lies with the Customer

Elastomore core and braided with Gold plated wires, available in 2 mm to 8 mm size. Foldover fingure types, gold plated of various sizes. Very useful for making the racks RF proof. These are developed by have been very successfully used in the Ruggedised Racks.

This is also made from GFN 30% plastic material. It connect to PCBs and Facia.

Made from GFN (Glass Filed Nylon) 30% plastic material. All the pieces are in single lengths and are suitable for 80 mm, 100 mm, 160 mm, 220 mm, and 280 mm deep PCBs. Special Feature is that it can take 1.6 mm to 2.4 mm thick PCB without any play in card guide. These card guides are specially designed to absorb vibrations. Also offers Stainless Steel card guides suitable for 1.6 mm to 2.4 mm thick PCBs with vibration absorbers. PCB guides are easy to fit, simple snap on type with good amount of rigidity and pass through 2g vibration test

These eye bolts are made of forged steel with load bearing capacity of 350 kgs. Four eye bolts are required for each cabinet.

Special Nylon Legs are used to elevate cabinet by around 65 mm to avoid scratches to the bottom of cabinet or floor. Weight carrying capacity will be appx. 100 kgs.

Made of plastic. These legs are used for PT 20 and PT 30 series racks. Available as 2 flat and 2 with tilts. Weight Carry Capacity: 5 kgs.

Front panel captive hardware sets are required for fixing 19" rack equipment directly to the mounting angles in the equipment cabinets. A set consists of Clip-Nut, Retainer, Cup Washer and M6 Decorative Screw.

Rubber moulded with 1.6 mm groove and diameter of 20 mm or 40 mm. Used for the cable entry inside the cabinets fitted on top or bottom of the racks

Front and rear panels are available for all standard models of card rack. These panels can be of Screw on type or hinged type ( hinged either on sides or at bottom )

Purvatech Solutions Offers indigenously developed designed Floorstanding Enclosure with good international look for various applications. This is 19" Floor standing rack with subrack mounting plane, adjustable to suit user's requirement. FEATURES : This rack has the doors and side covers concealed type. Extrusions made of special hard alloy with double hollow section to give very good rigidity from all the three axes Cable entry at the top and bottom All the three axes members are directly coupled to each other to give a good rigidity PT 11 ( Mark I ) series is having Front and Rear module mounting members adjustable at any distance PT 11 ( Mark II ) series is having Front and Rear member at a Distance of 47.5 mm from front and Rear PT 11 ( Mark III ) series is having Front and Rear member at a Distance of 67.5 mm from front and Rear Hybrid combination of Mark I, II and III can be at front and rear as per the customers' choice Load capacity 300 kgs   SCOPE OF SUPPLY : Basic Frame Structure Two Side Covers Top Cover and Bottom Cover with Legs Rear door made if MS 19" Subrack mounting arrangement MATERIAL & FINISH : Available in Powder Coated with standard colour options DA Grey / Munshell Grey Light Grey / Off white Black Blue Brown Beige
