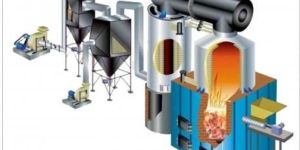

Wood Fired Thermic Fluid Heater
We offer thermic fluid heaters, fired by a wide range of fuels. Our TFH are available in both solid fuel firing as well as oilgas firing versions so that user gets the advantage of economically available fuels. All TFH are made with a coil type design ensuring instant heat. We offer fuel options of heavy oil, light oil, gas, dual fuel, wood, coal, husk, bagasse and other agro-waste fuels.
...more
Waste Heat Recovery Boilers WHRU

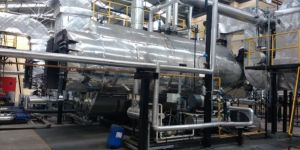

Thermic Fluid Oil
These models are designed for maximum efficiency, using a variety of liquid and gaseous fuels. It is designed with fuel flexibility in mind and can fire a wide range of heavy oils, light oils and gases. It allows high process temperatures at low operating pressures.
...more
super heaters
Super Heaters are the most critical Boiler Component of the modern day Thermal Power Plant and are subject to very high metal temperatures. In fact the capacity of the Superheater to work without failure at higher Temperatures is what determines the boilers Capacity and it effects improvement in economy by reducing Steam Consumption of the Steam Turbine. We have fabricated thousands of Superheaters - Radiant, Pendant, Final, Fluidized Bed types, Reheaters for all kinds of Boilers having Complicated very close and Compact Shapes with tube sizes ranging from 32mm OD to 76.2mm OD and thickness from 3mm of 12mm in all types of Boiler Quality Steel Grades ranging from Carbon to Alloys and Stainless Steel for metal temperature ranging up 650 C and for Boilers of 10 to 500 MW Capacity.
...more
Smoke Cum Water Tube
Rice Husk Fired Boiler
Husk fired Boiler are specially designed for light fuels like rice husk, wheat husk. This is package type design, with eccentric furnace, three pass, fully wet back & smoke tube type structure. Fuel is charged from the top through ventury type valve. Fuel is conveyed pneumatically by fans. Vibratory feeder is provided to spray constant amount of husk.
Capacity : 750 kg/hr to 6 TPH
...more
Pollution Control Equipment like dust collectors, Bag filter
Package Type Husk fired Boilers
package boiler
Package type boilers is an internal furnace Boiler with a three pass, fully wet back & smoke tube type design. The fuel is charged through a charging door to keep the fire going. Package type is designed to provide low cost heating with minimum operational complexity.
...more

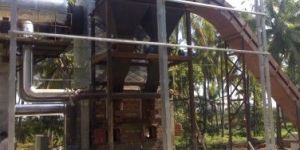

Multi Fuel Boiler
Multifuel boiler is combination of smoke tube & water tube design which give benefits of Both designs. Membrane panel type water tube structure is attached to smoke tube type shell. Furnace is made of channels & beams which is covered by refractory bricks & fire bricks. Multiple fuel feeding doors & ash doors are provided as par capacity of Boiler. Provided with ID, FD fan for maintaining balanced draught All type of grates like fixed grate, Fluidized bed, Controlled air combustion, Dumping grate, Pulsating grate, Traveling grate, chain grate can be fitted according to fuel availability & capacity of Boiler.
...more
Multi Cyclone Dust Collector
The flue gases coming out of the boiler contains dust particle’s embedded in it.The pollution control board of a particular area has limitation on the concentration of dust particles in the gases which are to be release from boiler to the atmosphere.n order to minimize this dust content from the flue gases dust collector system is being used.The main structure due to which the separation takes place is a pipe in pipe construction.The lower side of the outer pipe is tapered downwards.Two duct openings are placed on the flue gas inlet and outlet sides with flanges.
...more
Industrial Steam Boilers
900,000 Per Set
MINIPAC : Small Industrial Boilers OPTIPAC : Package Type Solid Fuel Fired Boilers HUSKON : Package Type Husk fired Boilers MEMBRANE – X : Smoke cum Water Tube Composite type Boilers POWER – X : Bi – Drum type High Pressure Boilers for Power Generation OILPAC : Oil Fired Package type Boilers THERMO – X : Thermic Fluid Heaters AQUA – X : Hot Water Generators Waste Heat Recovery Boilers WHRU'S Heat Recovery Systems such as Air & Water Preheaters, Economizers Pollution Control Equipment like dust collectors, Bag filters, Ventury Scrubbers Steam Mountings & Fittings, Revamp, Retrofitting & Conversions Energy Audits Services & AMCs Other Engineering Consultancies & Turnkey Solutions.
...more

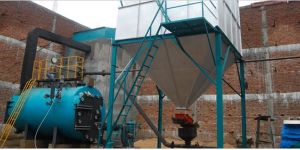

Husk Fired Boiler
Husk fired Boiler are specially designed for light fuels like rice husk, wheat husk. This is package type design, with eccentric furnace, three pass, fully wet back & smoke tube type structure. Fuel is charged from the top through ventury type valve. Fuel is conveyed pneumatically by fans. Vibratory feeder is provided to spray constant amount of husk.
...more

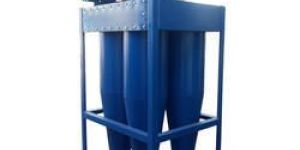

Boiler Accessories
Boiler accessories The flue gases coming out of the boiler contains dust particle’s embedded in it.In order to minimize this dust content from the flue gases dust collector system is being used.The main structure due to which the separation takes place is a pipe in pipe construction.
...more

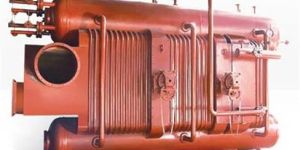

Bi Drum type High Pressure Boilers
Bi Drum Boiler
This is a twin-drum water tube boiler from Rakhoh. One is Water drum & other is is steam drum. This is most suited for applications that require uninterrupted boiler operation even on fuel which have a high fouling tendency. Bi-drum can be used for generating saturated steam as well as superheated steam. Superheated steam is used for incidental power generation or cogeneration power in industries such as sugar, distilleries, paper, Tea, solvent extraction, rice, textiles, etc. All type of grates like fixed grate, Fluidized bed, Controlled air combustion, Dumping grate, Pulsating grate, Traveling grate, chain grate can be fitted acc to fuel availability & capacity of Boiler. FBC is suitable for burning coal or lignite or other agro-based low-grade fuels
Capacity : 5TPH to 50 TPH
Pressure : 10.54kg/cm² to 87 kg/cm²(g)
...more

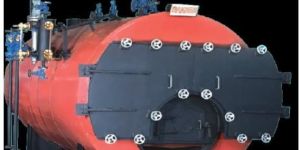

agro waste fired boiler
Agro-waste is any kind of agricultural waste from Agricultural or related industries. These wastes are cheap and easily available. We can save our running cost by using these fuels like Bagasse, rice husk, coffee husk, Macadamia nuts, palm shell, Groundnut shell, coconut shell, cotton waste, Briquettes. for small capacities from 100 kghr to 5000 kghr, we have an package type Boiler design with internal furnace design for higher capacities above 6 TPH to 25 TPH Composite type boilers with external type furnace. We can fire wood logs, wood chips, saw dust both type of designs. for higher pressure requirement like power generation Bi-drum boilers can be used.
Capacity : 300 kg/hr to 5000 kg/hr
Pressure : 7 kg/cm² to 21 kg/cm²(g)
...more
Oil Fired Package type Boilers
Small Industrial Boilers
Thermic Fluid Heaters
Hot Water Generators
heat recovery systems
Steam Mountings and Fittings
Energy Audits
Energy Audits
Other Engineering Consultancies and Turnkey Solutions
turnkey project services
