Relay Board Dealers in Pune

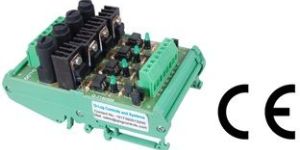

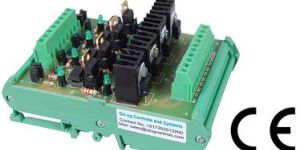

Features DIN rail mountable EightFour DC SSRs on a single board Sink or Source input selection by jumper selection LED indication for input signal Semiconductor Fuse protection for short circuit and overcurrent. Output points in two groups. Each group consists four op points. Technical Specifications Input signal voltage:20 VDC-28VDC, Typical voltage is 24VDC Max. input current:20 mA @24VDC Max. output voltage:100 VDC Min.output voltage:5 VDC Max. load per output point:5 Amp Peak non repeatitive surge current:8 Amp Input to output electrical isolation: 3.55 KV Max. Voltage drop in output voltage: 2.5 V @ 2 Amp load Switching ON delay:7 microseconds Switching OFF delay:10 microseconds Load type:Resistive and Inductive Applications a) For switching contactors from PLC outputs. b) For switching DC loads like solenoid valves, DC actuators, Lamps, DC electromagnets in industrial use directly from controller outputs. c) In all applications where we need very fast switching and require isolation between driver and driven circuits. The load can be inductive or resistive. Available in 8 points and 4 points variants. Solid State Relay boards with input signal other than 24VDC can be supplied on demand. Caution: DO NOT USE SSR BOARD FOR SWITCHING AC SUPPLY ! StandardsApprovals CE certified PCB:IEC 61373 OptoisolatorTransistor:ULVDE Connectors:CE Profile and end plates:UL

We are a client-centric firm and make sure that the entire lot is provided in premium packaging for ensuring complete safety during handling, warehousing and transit. We have a strong distribution network, owing to which we efficiently transport the goods to the desired place. Our 2 Relay GSM Based Control Board is manufactured using the latest technology and is largely appreciated for its high-performance.

• Operating voltage: 24 VDC +/- 10%
• Input current: Max 20mA@24 VDC/AC
• Contact type: SPDT (1 changeover NO-Pole-NC)
• Terminals: Screw type suitable for 2.5 sq. mm wires

Application Relay Interface Module 1 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops secondary are galvanically isolated. Fast acting fuse is at NO point for short circuit protection. COMPONENT SPECIFICATIONS Relay: 24VDC coil,1 changeover Omron Relay socket: 1 changeover PCB soldering type Terminals: Screw type suitable for 2.5 sq. mm wires Profile and end plates: Phoenix make

• Application: AC AND DC
• Voltage: 24V
• Design: Standard
• Model Number: ULEP24D16- COB V1
• Brand: UL GROUP
• Input status indication: 3mm Green Led.
• Ambient operating temp: 0 deg C to 60 deg C
• Current: 10A

• Brand: UL AUTOMATION
• Relay Current: 5/10/Amp
• Relay Voltage: 5/12/24 VDC
• Current Output: 5A/10A
• Relay Type: AD/DC

• Relay Type: Terminal
• Current Output: 24VDC
• Relay Voltage: 240VAC
• Country of Origin: Made in India
• Brand Name: OMRON
• Number Of Poles: 4
• Model Number: G6B-47BND
• Made In: Japan
• Current: 5 Amp

Relay Boards, Wiring Harness

Single Channel Relay Board, L293D Interfacing Board

Relay Boards, Switch Gears, Power Panel, PLC Drives, Smps Power Supplies

relay board, Power Supply, terminals block, Din Rail, Abs Enclosures

Four Channel Relay Boards, power transistor, assembly robots, ic programmer
