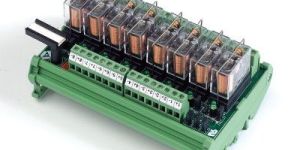

Relay Modules Dealers in Pune

• Voltage: 250V
• Operating Voltage: 12VDC 24VDC
• Rated Current (mA): 40 25mA
• Contact Configuration: DPDT, Potential Free
• Contact Current Rating: 8 A at 250 VAC
• Max. switching voltage: 440 VAC,300 VDC
• Mechanical operation: 18,000 /hr
• Terminal Type: Screw Terminal
• Nominal Current: 24A
• Rated surge Voltage: 4KV
• Stripping Length: 8mm
• Insulation resistance: 500V DC
• Ambient temperature: -45 to +120 C
• Mounting: Din Rail Mountable

• Color: Grey

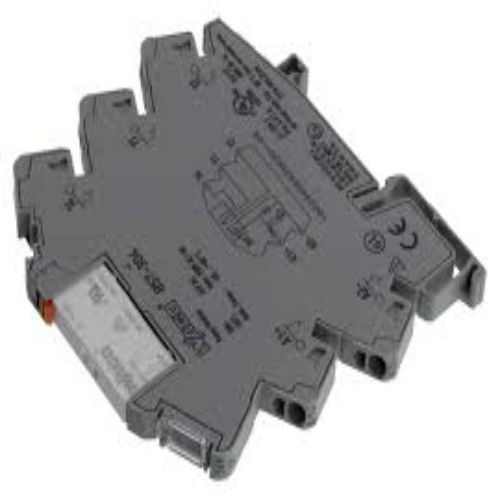

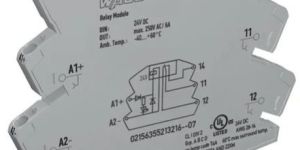

• Brand: Wago
• Part Number: 857-304
• Termination Method: 6 (Interface Electronics)
• Maximum Operating Temperature: -40 to 60 DegreeC
• Current Rating: 10 mA

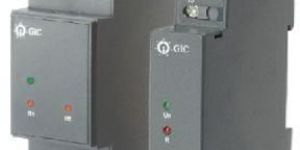

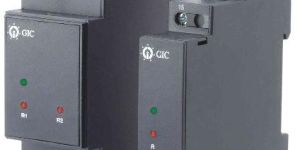

ISOLATED RELAY OUTPUT MODULE   Provides effective 3 way solution between supply, input switch & relay output Provides isolation of dissimilar circuits Enables control of multiple loads when only one relay output is available Isolated Relays are mainly used in fire safety applications that interface with HVAC system, elevator controls and access control doors. It can also be integrated with PLC systems.

• No. Of Channels: 1, 2, 4, 6, 8, 12, 16
• No. Of Contacts: 1 N/O, 1 C/O, 2 C/O
• Coil Voltage: AC : 24V, 48V, 110V, 230V DC : 5V, 12V, 24V, 48V, 110V
• Coil Looping: Nigative, Positive, Isolated

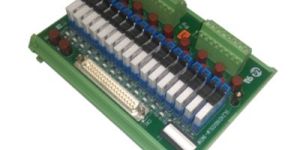

Changeover Relay Interface Module with Option of fuse & fuse fail Indication used to Interfacing PLC Drive DCS Digital Outputs to field or field devices. Outputs are Galvanically isolated through Relays.

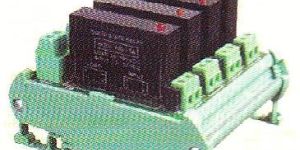

With our vast experience in this field, we are able to offer the finest range of Solid State Relays Module. Solid State Relays Module is a system where switching takes place between two moving contacts. Switching in Solid State Relays Module takes place across the junction of semiconductor device. Devices are Triacor Thyristor for AC Switching & Transistor for DC Switching in the most Solid State Relays Modules. Galvanic separation in our Solid State Relays Module is achieved by Optocouplers, which are equipped with integrated trigger circuit (optotriac) that provides the efficient switching function for the corresponding load type. Details Current : 2A to 150 AmpOutput Voltage : 240 V or 600 VACDC output : 110 VDC, 10 Amp to 100 Amp From Modules Solid State Relays Modules are available like 2/4/8/16 channels with base with fuse protection, O/p = 1C / o / 2C /o contacts

• Relays: 24VDC, 1 Changeover
• Relay Socket: 1 Changeover PCB solderable type
• Terminals*: Screw type suitable for 2.5Sq.mm conductor
• PCB: Glass Epoxy double sided PTH with Lacquer
•  :

ApplicationRelay Interface Module 1changeover slim relay with option of fuse & fuse fail indication used to interfacing PLC/Drive/DCS Digital Outputs to field or field devices. Outputs are Galvanically Isolated through Relays.

Relay Interface Modules - SMC manufacturing complete range of active and passive relay modules. These are having some advantages like vertical fuse holders which eliminates the changes of falling down of glass fuse at the time of replacement. These modules are having screw or screwless terminals for output connection. One important feature is these are very compact and economical.

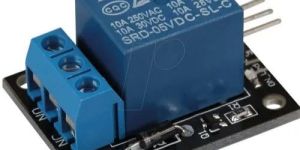

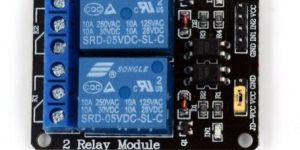

• Application: Control AC/DC Load
• Current: 10A
• Voltage Type: AC/DC
• Parts: Relay Board
• Coil Voltage: 5V
• Control Signal: 15-20mA
• No of Relay: 2

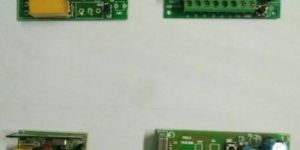

RF Module With Relay O / P, One Way Car Security Alarm System
