RF Switches Dealers in Pune

si-rf series safety switches utilize rfid technology to monitor doors, gates, and other movable mechanical safeguards that separate personnel and equipment from a hazard. This non-contact system operates at the highest levels of safety, resists tampering and nuisance trips, and offers diagnostic capabilities that make it easy to resolve problems and minimize machine downtime.

As a successful manufacturer, exporter and supplier from Maharashtra, India, we make available premium grade RF Admittance Point Level Solid Switch across the country. This reliable technique for sensing of liquids, pastes, solid mixtures and bulk solids is manufactured in our state-of-the-art unit. Our RF Admittance Point Level Solid Switch is widely used in fertilizer, cement, and chemical and food industry and also in breweries and sewage treatment plants.   Details : Reliable technique for sensing of liquids, pastes, liquid - solid mixtures & bulk solids Insertion L - 350 - 3000mm Max Temp - 200oC Max Pressure - 10 Kg/cm2 Dielectric Constant - ≥2 Wtd Parts - SS304/316 O/P - 5A@250VAC x DPDT Enclosure - Cast Al x IP 66, Ex-P IIB Options - Integral, Two part, Flexible probe Applications : Fertilizer, Cement, Tyre, Chemical & Food Industry, Breweries, Sewage Treatment Plants

• Application: Indistrial
• Color: Blue, Grey
• Feature: High Performance
• Voltage: 110V, 220V, 24 V DC
• Condition: New
• Voltage: UNIVERSAL
• Frequency: 50Hz, 60Hz
• Power: 10 VA
•  Warranty: 1Year
• Country of Origin: India
• Brand Name: Arihant
• Max. Current: 200mA
• Max. Voltage: 275 v AC

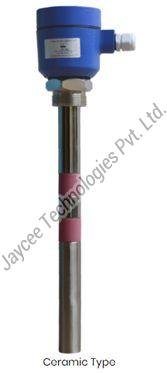

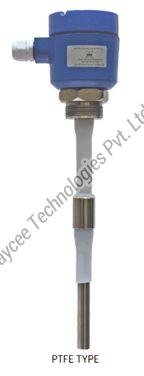

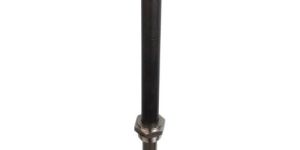

We are offering rod probe rf admitance level switch. protocontrol make rf admittance type level switch with rod probe is used for sensing the level of solid item like cement, lime, iron ore, food stuff, milk powder, flour, salt, plastic granules, powder & granules, salt in a hopper. The length of rod can be as per requirement of the field. The rod is designed with heavy duty ss rod having diameter of approx. 40mm. When the material touches the rod output signal is activated. the sensing probe is designed using special shield having coat guard circuit and hence nullifies effect of deposition on the probe. The sensor can well be used for sensing level of sticky material. control circuit can be integral with sensor probe or it can be mounted remotely if temperature at the product is higher that 100 degree cent. this level switch is suitable for highly dusty environment. It is also simple to install and easy to maintain. when the electronic circuit is integral with probe, control circuit is housed in cast al, ip 65 enclosure fitted on the sensor itself. The control circuit can also be mounted at remote if the process temp is more than 100 degree cent. Control supply can be 230 v ac, 50 hz (standard) .other voltages like 110 v ac, 24 v dc are available on request. the output is in the form of 2 co potential free relay contact. 5 amp resistive at 230v ac. ambient temp can be up to 0 to +60 deg for standard models, special models for fly ash where temp is more are having ptfe and ceramic coating. switch have having facility of built in on and off nuisance delays of 2 to 20 sec. The switch can be programmed at site for top or bottom level monitoring with the help of selector switch.

• Mechanical Housing: Cast Aluminium
• Pressure: Max 40 Bar On Request for Certain Model
• Mounting Arrangement: Threaded: 1 1/2 '' BSP / NPT Flanged: As per requirement Other: As per requirement
• Cable Entry: 2 Nos of PG 13.5 ( Polymer ).
• Electrical Indication: LED (Normal : Green, Alarm : Red)
• Extension: GI / Stainless steel
• Type: Electronics Top Mounted On Probe
• Delay Setting: 1-20 seconds ( Covered and Uncovered )
• Response Time: Standard : 1 - 2 Sec
• Payment Terms: T/T
• Mounting Materia: SS 304 / SS 316 / Others
