Riveting Machine Dealers in Pune

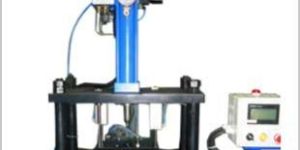

Riveting machine for slider, Specially designed fixture with servo,Hydro-pneumatic press,controller,locking plate,15 sec component

manufactures an automatic riveting machine. In this, the rivets are fed through a vibratory bowl feeder to the riveting station. The other part (spring, strip etc.) can either be placed manually or automatically from another vibratory bowl feeder. Alternatively, the strip can be fed through a de-reeler and cut as per the requirement and fed automatically. Other options which are available is checking the spring strip etc. before riveting, counting of the number of pieces riveted, automatic stoppage of machine when a wrong rivet spring is fed etc. At the riveting point, the riveting takes place and the completed riveted assembly is blow out or removed manually as the case might be. For this a riveting head is mounted on a specially designed platform. This machine has received a very good response from various switchgear and contactor manufacturers. Productivity increases tremendously with the usage of this Elscint automatic riveting machine.

Assembly Automation Of Motors Used In Windshield Washer Pump Automatic Riveting Machine For Bearing Assembly With Balls And Cages. Automatic Stack Assembly Machine For Armature. Automatic High Speed Assembly Of Ball Bearings. Belt Conveyors For Industrial Automation Cable Assembly Set - Up For Automobiles Clutch Assembly Machine For Tape Deck Conveyorized Automation For Assembly And Testing Of Roller Bearings High Speed Rivet Inserting Machine For Bearing Cages Steel Wire Conduit Making Machines Studio Lamps Position Controller

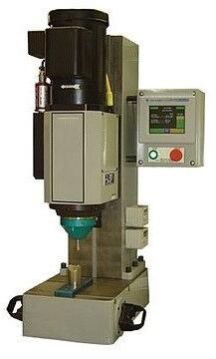

• Material: Brass and Copper
• Application: Industrial
• Features: Easy to service and maintain , Rigid construction , Precise orbital motion
• Item Code: Model-016-H
• Riveting Capacity: 16 mm (M.S.38 Kg.mm U.T.S)
• Throat Depth: 225 mm
• Shut Height: 220 mm
• Stroke Adjustable: 0-45 mm
• Cycle Time Adjustable: 0-9.9 Sec
• Over all Dimension: 540 x 615 x 1375 mm
• Motor: 6.0 HP (4.5 Kw) Including Power Pack
• Air Pressure: 0-80 Kg/cm2

Auto ball separation station Female cage feeding station Male cage feeding station Male cage presence check Female cage presence check Component assembly (Male and female cages with bearing) Pre-pressing ( For diameter 72mm and above) Press (hydro-pneumatic) Final control (missing or un-pressed rivet) NG sorting Unloading Male cage and female cage stock to be loaded manually Stock capacity (10 minutes) Cycle time: 3.5 to 4 sec Resetting time: 60 minutes PLC: Siemens / Mitsubishi/ Delta HMI: 6 or 7 inch touch screen operating panel Measuring sensor: Marposs / Tesa Measuring sensor signal conditioner: SMT Pneumatics: Festo / SMC Switch gears: Schneider, Siemens. Data Logging, Alarms, Real time Run Chart display

• Material: Aluminium
• Voltage: 250 V
• Riveting Capacity: Up to 40 blind rivets can be processed every minute.
• Opeartion: Pneumatic
• Control: Automatic
• Flange Diameter: 11.4 mm
• Rivet Body Length: Above 30 mm
• Transaction Power: Up to 11,770 N
• Features: Automatic, Smooth finish, Light weight
• Power Source: Electric

• Brand Name: Shapura Corporation
• Warranty: 6 Months
• Country of Origin: Made in India
• Usage/Application: For Jointing All Types Of Saw Chain
• Material: Mild Steel
• Packaging Type: Corrugated Box
• Manufacturer: Oregon

Elscint Automatic Riveting Machines, Elscinthane Vibratory Feeder Bowl

Rod Riveting Machine, Oil Hydraulic Trainer, Norden Pump Bearings

Hydraulic Riveting Machine, Hydraulic Leveler and Uncoiler
