Wire and Cable Tension Controller
RTM x42 - a sophisticated range of wire tension measuring solutions the importance of tension control becomes significant in any wire, cable, or rope making process. Because production efficiency and quality significantly influences your commercial success, a comprehensive solution for your stranding machinery must be considered if available. FMS expands its tension monitoring program to include four new multi-channel systems. RTM x32 systems - wire tension monitoring with wireless data transfer the rtm x42 series utilizes force sensors to measure the tension of individual wires or strands, and transmits this data wirelessly from the rotating to the static part of the machine. rtm x42 is an innovative system that utilizes force measuring rollers to capture the tension of individual wires or strands, and then securely transmits this data from the rotating to the static part of the machine. The system is designed with fully compatible components. Its expandable features makes it ideal for applications in multi-channel planetary cage, tubular, rigid frame stranding machines or double twist bunching machines. It improves production rates and outgoing quality level of cable producing machinery. RTM x42 is designed to easily retrofit onto existing machines. On the receiver side, measured values can be output as a standard signal to an existing plc for monitoring or controlling the relevant production parameters. Whether you are seeking a solution to control tension or you prefer a pure monitoring solution, the RTM x42 offers a sophisticated range of interface options to integrate it quickly and efficiently into the existing communication and control infrastructure of the machine. Designed as a flexible multi-channel system, RTM x42 is primarily suitable for cage or tubular stranders with up to 42 pay-off stations. It offers both the machine builder and the machine user a basis for efficient cost and quality management. We are a noted Exporter and Supplier of Wire and Cable Tension Controller, based in India.
...more
Web Guide Actuator
We are among the top Exporter and Supplier of Web Guide Actuator in India. The type d.3 Web Guide Actuator is designed to equip medium-sized unwind and rewind stands. Thanks to its fast stepper motor and its spindle ball screw systems, Web Guide Actuator works backlash free and with highest accuracy.
...more
Web Tension Controller
All FMS Web Tension Controllers are fully compatible with all FMS force sensors and tension measuring amplifiers. They are specially adapted to measurements of dynamic processes. Advantages Easy to operate and provides flexible set-up. We offer two types of Web Tension Controllers namely - CMGZ309 Digital Tension Controller and CMGZ480 Controller with CAN-BUS©. We are a well-known Exporter and Supplier of Web Tension Controller in India.
...more

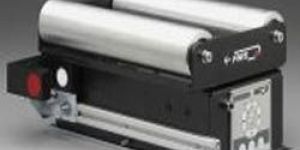

Web Guide System
With any type of narrow material processing, Web Guide System is vital to maintain the web in the correct lateral position. Whether printing labels, gluing packages, laminating layers, or applying isolation layers to a wire, exact material position is most important to the production process. Often this is done with stationary mechanical guides, can damage the material edges. The ultra-compact web guide BKS 015 provides enhanced material control for increased line speeds and improved quality. The innovative, cost-conscious design provides the ideal solution for both existing and new narrow web production lines. We are a renowned Exporter and Supplier of Web Guide Systems in India.
...more
web guiding equipment

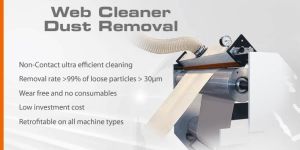

Web Cleaning System
We offer Web Cleaning System, the xstream non-contact web and sheet cleaner adopts a revolutionary approach to improve quality, reduce down time and boost profitability. It combines the latest aerodynamic nozzle technology with a defined high speed vacuum airflow and substrate ionization prior to cleaning within one turnkey system. the development of this system is based on technology used in aviation and aerospace research where, through the use of specially shaped edges and profiles, the air is forced in a certain direction at extremely high velocity. Hildebrand technology ag uses this technology and has developed its xstream surface cleaner based on this sound scientific knowledge. The xstream accommodates splices automatically and is available for use on web widths from 50mm up to 10 meters in either a single or a dual side surface cleaning configuration. The compact design minimizes the space requirements for installation. Our experienced application engineers can evaluate your machine and propose a solution for the implementation of xstream into your production process. technology: the special aerodynamic nozzle of the xstream which is positioned close to the surface of the substrate generates, through the combination of vacuum in the cleaning module and web speed, an extremely high velocity air flow (>60ms). The high velocity air flows along the substrate surface to the nozzle edge and into the cleaning module. The high velocity airflow breaks the boundary layer on the substrate and forces the particles that were trapped in this layer into the cleaning module. From the cleaning module the particles are transported to a filter unit. We are among the trusted Exporters and Suppliers of Web Cleaning System in India.
Brand Name : XStream
...more
Tension Measuring Amplifier
We are a well-known Exporter and Supplier of Tension Measuring Amplifier in India. All FMS tension measuring amplifiers are fully compatible with all FMS force sensors and tension controllers. They are specially adapted to measurements of dynamic processes. We offer these Tension Measuring Amplifiers in to different formats. Here is the list of different types of Tension Measuring Amplifier :Types EMGZ309-EIP Measuring Amplifier with EtherNet/IP Bus EMGZ309 Digital Tension Measuring Amplifier EMGZ321 Left/right Tension Measuring Amplifier EMGZ321.EIP Left/Right Tension Measuring Amplifier with EtherNet/IP-Bus EMGZ306A Compact Tension Measuring Amplifier EMGZ307 Extra Robust Tension Measuring Amplifier EMGZ470.D/472.D PROFIBUS® Tension Measuring Amplifier EMGZ470/472A.W PROFIBUS® Tension Measuring Amplifier EMGZ474 PROFIBUS® Tension Measuring Amplifiers EMGZ473.W Tension Measuring Amplifiers EMGZ480 Force Measuring Amplifier with CAN-BUS® Interface EMGZ600 Series Digital Tension Measuring Amplifier
...more

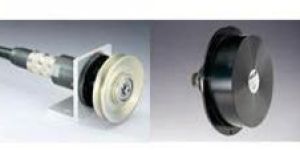

Force Sensor for Wire and Cables
FMS force measuring rollers of the RMGZ100 to RMGZ 800 series are used to measure the tension in ropes, cables, wires and narrow web materials. There are four types of Force Sensor for Wire and Cables are namely RMGZ100 Force Measuring Roller, RMGZ300 Force Measuring Roller, RMGZ400/600 Force Measuring Roller and RMGZ800 Force Measuring Roller. We are an established Exporter and Supplier of Force Sensor for Wire and Cables in India.
...more

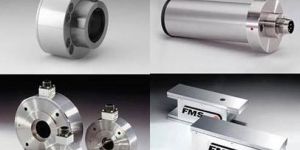

Force Sensor for Web Application
We have carved a niche as a top Exporter and Supplier of Force Sensor for Web Application in India. For Force Sensor for Web Application, no recalibration is required. This Force Sensor for Web Application offers wide measuring capability at high resolution. We provide Force Sensor for Web Application in different sizes for every application. The high Corrosion resistance is another important factor in case of Force Sensor for Web Application. Types AMGZ Series Force Measuring Journal A203 Force Measuring Sensor C203 Force Measuring Sensor CA203 Force Measuring Sensor F202 Force Measuring Sensor FA202 Force Measuring Sensor with Dead Shaft Adapter CR Force Measuring Roller CZ205 Force Measuring Journal DMGZ Load Cell LMGZ Force Measuring Bearing LMGZ.D Double Range Force Measuring Bearing UMGZ Force Measuring Bearing Block UMGZ.P Force Measuring Block SMGZ Force Measuring Bearing Block PMGZ Force Measuring Bearing Block IMGZ Series Force Measuring Roller ZMGZ Force Measuring Journal
...more
force sensor
Electrostatic Discharging DC
IONstream FUSION is a high performance AUTODC® & TRUEDC® static neutralizing system. It incorporates the latest technological developments and is micro controller operated with local embedded intelligence. Electrode contamination and emitter pin status, as well as neutralizing efficiency, are continuously monitored and visualized. Each neutralizing bar is accessible via a Gateway, a master touch-screen PC or WLAN wireless. Parameters can easily be read and controlled by process engineers. The specially developed AUTODC® & TRUEDC® technology senses the polarity of the charge on the target substrates surface and automatically corrects the pulsepause relationship towards the dominant polarity surface charge in order to achieve maximum neutralizing effect. In TRUEDC® mode even 100% independent from any substrate speed. We are among the top Exporters and Suppliers of Electrostatic Discharging DC in India.
...more

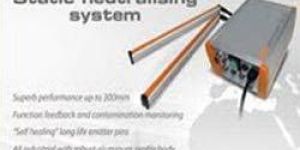

Electrostatic Discharging AC
The ionstream 5.0 is a heavy duty, industrial quality, high performance static neutralizing system. It provides efficient static charge neutralization at a very cost effective price. The system utilizes the latest shock proof technology with resistors located in front of each high voltage emitter point. A 10mm pin pitch combined with active discharging power and long neutralizing distance makes ionstream 5.0 a class leading system. Our unique “long life” emitter pin technology continuously sharpens the pins during the ion emitting process. This pin ‘self healing’ process massively increases the life time of the emitter points and guarantees constant high performance during its full life cycle. The neutralizing bars are connected by a flexible high voltage cable to the high voltage power unit. We are a reputed entity engaged in exporting and supplying Electrostatic Discharging AC.
...more
cable force sensor
The RMGZ series force measuring roller is used to measure the tension in wire, cable and similar materials. An application specific sheave or pulley is mounted to the two lifetime lubricated ball bearings. The force measuring rollers apply the force to the measuring web in a parallel plane as opposed to a typical bending beam. This ensures maximum accuracy and measuring sensitivity. Four foil-type strain gauges configured in a full Wheatstone Bridge are utilized to measure the material tension. A mechanical hard stop ensures the highest overload protection and makes the sensor virtually indestructible. This combination guarantees the highest accuracy and reliability without the need for recalibration. - Nominal forces from 6 ΓΆ€“ 8000 N - Sizes available for every application - 10 times overload protection: No recalibration required - 20 : 1 force measuring range: Wide measuring capability - Lifetime lubricated ball bearings: No maintenance necessary
...more
cable tension controller
FMS Tension Measurement and Control products are designed specifically to enhance in-process production control, hereby improving finished product quality, reducing waste, increasing processing speeds, and minimizing machine downtime. Typical applications which can benefit greatly from FMS Tension Measurement and Control include: Drawing, Stranding, Bunching, Extruding, Unwinding, and Winding.
...more
static neutralizing system
tension measuring
web application force sensor
wire force sensor
Complete industrial service
neutralization solutions services
