• Designate:: Automatically moves the antenna in each axis to one of 99 pre-stored satellite positions.
• Direct Az/El:: Automatically moves the antenna in each axis to the coordinates entered via the front panel.
• Jog:: Manually moves the antenna in each axis in response to front panel controls.
• Peak:: Performs a peaking algorithm on the current target
• Step Track:: Automatically performs peaking algorithm in response to input signal level decreasing below a programmable minimum.
• Program Track:: Automatically moves the antenna in each axis along a sidereal time tagged path.
• External:: Moves the antenna in each axis in response to commands received through the serial port.

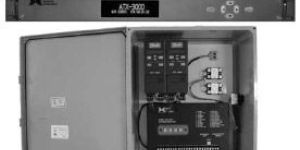

Built-in features include The ATX-3000 antenna tracking controller is a userfriendly microprocessor-based system to reliably track inclined orbit satellites. Fully programmable positioner with memories for up to 99 satellites. Automatic Calibration for true Azimuth and Elevation displayed in 0.01 degrees. High resolution Brushless resolvers for ultimate position feedback.   Antenna Drive Units for AC Motors Solid-state variable frequency 3 phase AC motor controllers with microprocessor motor speed management. Static braking with torque at 150% of rated motor torque. Variable speed control 0 to 60 Hz with constant torque. Low frequency voltage boost 150% starting torque under 20% speed. Local jog control and Emergency Stop switch are provided at the ADU. Optional handheld remote jog control is available. Two voltage configuration options: (must be specified at time of order.)220 - 240 Volts, 47 - 63 Hz single- or three-phase prime power, 220 - 240 Volts three-phase motors.      – OR –380 - 460 Volts, 47 - 63 Hz single- or three-phase prime power, 380 - 460 Volts three-phase motors.(A single-phase 90 - 260 VAC, 47 - 63 Hz, 45 watts maximum is also require for outdoor controls). HP configuration options: 1 - 5 hp available.     Interconnections Local AC mains is required at the ADU. A two conductor, 20 gauge shielded cable from the ADU to indoor ACU interface is required. Required Limit switches connect to ADU. Extra Emergency stop switches may connect to ADU. High resolution optical position encoders or absolute, brushless resolvers mount directly on antenna Az and El pivot axis. Options Motors, Gear reducers, Jack screws, Limit switches, Emergency stop switches. Beacon Receivers Designed to work in concert with SSC Model 3434 line of Beacon Tracking Receivers.

The Satellite Systems line of Antenna control systems uses a single speed brushless resolver for accurate position feedback of the antenna.
