Schmalz India Pvt Ltd Bhosari, Pune, Maharashtra

Suction cups for wood handling are particularly suited for handling of workpieces in wood processing, such as furniture parts, floorboards or even particle board. Suction cups can be used to safely move rough, lightly structured as well as porous workpieces.

Type : Suction Cups

Material : NBR

Shape : Round

Application : Industrial Use

Country of Origin : German

Brand Name : Schmalz

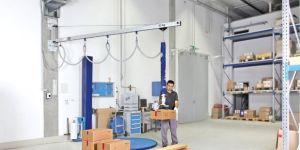

Jib cranes from Schmalz are very versatile and can be combined with many lifting devices such as chain hoists, rope hoists, rope balancers or vacuum lifting devices. The jib crane is attached to an existing column or wall and has a pivoting angle of 180°. This enables the optimum use of existing hall dimensions. Schmalz offers various solutions for attaching the crane according to the customer's local conditions. Special, newly developed, wall consoles for attachment of the wall-mounted jib crane permit easy installation.

Type : Wall Mounted Jib Cranes

Application : Industrial

Feature : Customized Solutions

Condition : New

Load Capacity : 1ton

Country of Origin : German

Brand Name : Schmalz

After-Sales Service Provided : Yes

Max. Lifting Height : 5000 mm

Wafer grippers are suitable for extremely quick and reliable handling of wafers and solar cells in the production processes. The generation of a high flow rate with low air consumption enables particularly gentle handling of sensitive workpieces.

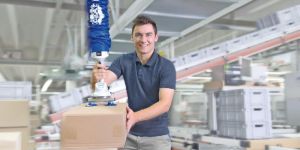

The vacuum tube lifter JumboFlex allows you to move lighter goods up to 50 kg ergonomically and with high cycle rates. The control handle fits comfortably in the hand and allows the operator to work for a long period of time without fatigue. With simple one-finger control, lifting, lowering and releasing the load is extremely intuitive. The JumboFlex's wide range of features allows it to tackle virtually any task. It comes standard with a quick-change system for replacing the suction pads. Workpieces which are gripped from the vertical side automatically swing back into the horizontal position where they can be continuously rotated.

Type : Vacuum Lifter

Weight : 0-50 kg

Automation Grade : Manual

Application : Industrial

Capacity : High

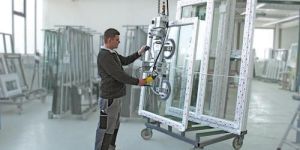

The VacuMaster Window vacuum lifting device was designed for loads of up to 300 kg. The lifting device makes it much easier to handle glass sheets and windows. Special suction cups provide the necessary degree of safety. The workpieces can be turned 90 Degree to the left and to the right. The intelligent arrangement of the suction cup even allows the handling of multi-sash windows. The vacuum lifting device guarantees safe handling thanks to its electronic warning device and the vacuum reservoir.

The vacuum lifting device VacuMaster Vario is the perfect solution to handle metal plates and sheet metal with different weights. This lifting device is operated by one person and provides a high level of safety, thanks to its large vacuum reservoir and electronic warning device. The modular design of the lifting device makes it especially easy to adjust to various types of metals and sheet metal, thereby ensuring maximum flexibility.Application: Loading and unloading machines with large-format metal sheets and plate Solutions for heavier loads are also possible, e.g. lifting devices for handling rotor blades weighing

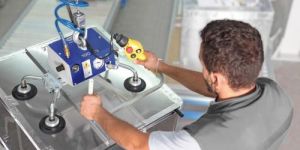

  The vacuum lifting device VacuMaster Light is ideal for horizontal handling of mainly airtight small to mediumsized workpieces weighing up to 100 eg. metal plates, plastic sheets, barrels, cabinets, furniture parts or sections. It allows quick startup through simple installation on the crane. The only thing needed for startup is compressed air. In order to move the square tubes quickly and easily.

The Vacuum Lifting Device Vacu Master Glass is ideal for a safe and ergonomic handling of glass workpieces in outdoor areas. Benefits: Careful handling of glass workpieces without damaging them Workpieces can be aligned and installed perfectly in the facade Easy and ergonomic operation High degree of safety through two redundant vacuum circuits (according to DIN EN 13155) and integrated power failure monitor High flexibility due to the modular design - easy and quick adaptation to varying glass sizes and loads Operation without being connected to the electrical power supply Very flat design allows working behind racks Comes in a stable wooden transport box to protect the handling device from damages

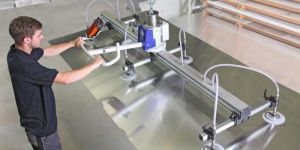

A modular vacuum lifting device with piston system for vacuum generation without energy. For horizontal handling of smooth and airtight workpieces without an external energy source eg. metal sheets/plates, barrels and stone slabs

VacuMaster Coil is specially made for handling coils and slit strip, e.g. for positioning onto a decoiler mandrelApplication Suitable for (very) thin sheets of metal, metal foils, steel, tinplate, aluminum, etc. Damage-free gripping without mechanical clamps Handling of coils of varying diameters with the aid of separately activated annular chambers Precise and continuous swiveling of the load by 90 Degree with the aid of an electromechanical linear drive Simple positioning thanks to transparent suction plate Safe operation thanks to electronic warning device, vacuum reservoir and non-return valve 3-year warranty Maximum load 500 kg to 1000 kg

the vacumaster comfort offers an operator handle that brings together all of the device's controls as well as a controlled vacuum generator for reducing energy consumption. basic configuration as for the vacumaster basic, with the following additional features: ergonomically integrated controls for "chain hoist up/down", "vacuum on/off" and "swivel vertical/horizontal" (optional) solenoid valve with two-hand actuation for vacuum off regulated vacuum generator, pump with automatic air-saving function delivery complete with chain hoist 3-year warranty optional: chain hoist with frequency regulation .

Type : Vacuum Lifter

Weight : 0-750 Kg

Automation Grade : Manual

The Schmalz modular system for vacuum end effectors (VEE) allows grippers used in the packaging industry to be constructed quickly and easily. To enable quick and flexible construction of the end effectors, Schmalz offers a digital configurator. Various flange modules, basic modules, connection elements and suction cups are available for constructing an end effector. The design of the end effector, as well as the number and position of the suction cups, can be determined according to the dimensions and properties of the workpiece. Over 30 different variations for the design of the vacuum end effector are available in the configurator. These depend on the selected number and position of the suction cups. Various connection elements allow you to configure an end effector which is ready to connect.

Country of Origin : German

Voltage : 200-480V

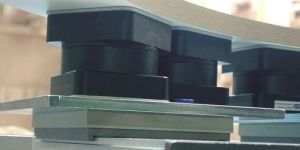

Vacuum Blocks for grid tables enable simple and flexible use without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high processing forces. This makes them ideal for complex five-axis applications without a wear plate.

Type : Clamping Devices

Material : Plastic

Condition : New

Driven Type : Vacuum

Country of Origin : German

Brand Name : Schmalz

After-Sales Service Provided : Yes

The area gripping system FXCB/FMCB is ideal for stationary handling tasks with collaborative robots. It is suitable for handling workpieces regardless of size and geometry The area gripping system is equipped with an integrated pneumatic vacuum generation. Its extremely low weight and rounded shape make this gripper particularly well suited for HRC operation.

Tube Lifter Jumbo Sprint Ex is suitable for efficient handling of loads weighing up to 250 kg in explosion protection zones. The application ranges from lifting of bags, barrels, cardboard boxes, jugs, buckets and varnish/paint containers to preparation and positioning of filled bags, e.g. for emptying into hoppers or mixersThis system is for use in explosion protection zones 1/21 and 2/22Certified according to ATEX 2014/34/EU standard

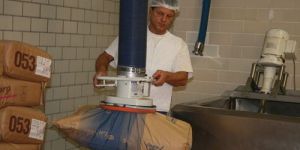

This tube lifter is especially for compact workpieces. The JumboSprint is equipped with a bow-shaped operator handle which extends all the way around the unit. This allows the user to optimally position it on compact goods such as bags or rubber bails. The load is raised by pulling up on the handle lever and lowered by pushing down.

Type : Vacuum Lifter

Weight : 0-250 kg

Automation Grade : Manual

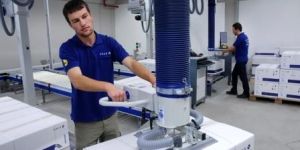

This lifter is mainly for workpieces with many different shapes and sizes.The twist grip on the Jumbo Ergo is designed to operate like a motorcycle throttle. Large and heavy loads such as wooden boards, cardboard boxes and solar panels can be moved gently and precisely. The length of the operator handle can be varied, which allows the user to always maintain a safe distance from the load.

Type : Vacuum Lifter

Weight : 0-200kg, 200-300kg

Automation Grade : Manual

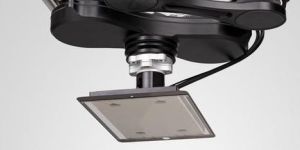

A feature of the thin glass gripper from Schmalz is its gentle and contamination free handling. The high suction capacity and large effective suction area make secure handling of workpieces possible even in dynamic processes. This area gripper is used, for example, for the handling of very thin display glasses in automated or partially automated processes.

Country of Origin : German

The flat suction pads SGPN are specially created for handling with various packing materials (plastic foils, paper, blister-packed). Through his flat, long-tapered sealing lip he has good sealing properties. This flexibility enables the handling of non-rigid packed products. When lifting the workpiece, the packaging deforms and crinkles occur. These can be reliably sealed by the sealing lip and the workpiece can be transported safely.

Country of Origin : German

Brand Name : Schmalz

Material : FPM, HT1, NK, SI

These suction plates are ideal, in particular, for handling flexible materials such as prepreg or semi-finished products made of fiber composite material. The suction areas have uniform holes added for surface vacuum distribution. The adaptable sealing ring ensures a good seal and increases lateral forces.

Type : Suction Cups

Material : aluminium

Shape : Round

Application : Industrial Use

Country of Origin : German

Brand Name : Schmalz

SSP Vacuum Suction Spidersis designed as per the application needs of customers. They have been designed according to a modular principle. All versions of the vacuum suction spider are derived from the basic design which can be flexibly optimized for complex handling tasks. They are used for handling of metal sections, blanks, stone, sheet mate rials, car body parts, glass and ceramic components, etc. Application Automation of handling tasks in manufacturing, assembly and quality control processes Linking robots in presses and bending centres Automating plastic injection moulding machines, deep drawing machines, machining centres for wood and plastics, waterjet machines, laser machines and punching machines Order picking in storage and distribution centres on industrial robots or gantries

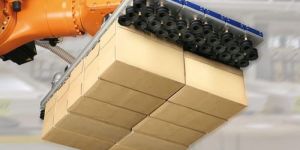

together with capable palletizing robots and gantries, vacuum layer gripping systems from schmalz increase the production output in the automated handling of products in various industries. individually planned systems guarantee an optimal process integration and ensure a quick return on investment.application: palletizing and de-palletizing of layers of various goods use in warehouse logistics and intralogistics handling of layers with gaps, mixed layers, intermediate layers, pallets, cardboard packaging and film packaging palletizing and de-palletizing partial pallets by the combination of vacuum technology and mechanical gripping support
