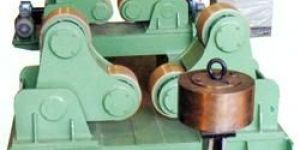

Self - Aligning Rotators
Get Price Quote
The Rollers of these machines automatically adjust themselves when loading to suit the diameter of vessel. Thus a large range of diameters can be accommodated without need for any adjustment.

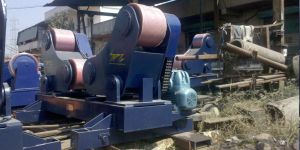

Self Aligning Rotator
Get Price Quote
Leveraging on our vast infrastructure, we offer our clients an unmatched range of Self Aligning Rotator. Manufactured with extreme care and quality scrutinized methods, our Self Aligning Rotator is widely appreciated for its high functioning. We are also reckoned for providing our range of Self Aligning Rotator in a customized manner as per the requirement of our clients. Our clients can avail this fine range at very economical price. Attributes : Robust constructionExtremely DurableOptimum load bearing capacityHigh mechanical efficiency Specifications : Roller Surface Speed : 75 mm / min to 1500 mm / minDrive : Variable Speed A.C. Motor (A.C. VFD) For Job Diameter : 500 mm � min and 8000 mm � max (The Job diameter varies according to load conditions) Note : Customised Self Centering Rotators May also Be Provided Apart from Our Standards. Technical Specifications ModelCapacity (Drive + Idler ) (Tones)Roller Dia. (D) (MM)Roller Width (W) (MM)Roller Material SRT-SAR- 01130090POLYUR ETHANESRT-SAR- 055300100SRT-SAR- 1010400100SRT-SAR- 1515400120SRT-SAR- 2020400120SRT-SAR- 3030400120SRT-SAR- 4040400120SRT-SAR- 5050400145SRT-SAR- 6060500145SRT-SAR- 8080500150SRT-SAR- 100100550160SRT-SAR- 150150550290SRT-SAR- 200200550340
Best Deals from Self Aligning Rotator
Self Aligning Rotators
Get Price Quote
Self Aligning Rotators automatically adjust the roller Housings to accept any job diameters with in the specified diameter range. This type of machines are generally used to cope with the change in shell diameter, Job to job. The roller housings of this type of machine are hinged ot the beds and to cope with the change in shell diameter job is introduced. In this type of rotator. each roller brackets assembly have two separater roller assemblies, and thus supports the job on a wider area. The final drives is given to both the 2-sets of rollers of the Drive Unit, provide better traction ot the job. However, in this case a declutching arrangement is provided to the top rollers, in order to protect the gear boxes, as when the job hits the top rollers first while loading, there is a tendency of rotating the top rollers where as it locked by the gear boxes.
Self Aligning Rotator
Get Price Quote
Self Aligning Rotators automatically adjust the Roller Housings to accept any job diameters within the specified diameter range. These types of machines are generally used to cope with the increased production demands. The roller housings of this type of machine are hinged to the beds and open up automatically when a larger diameter job is introduced. In this type of rotator, each Roller bracket assembly has two separate roller assemblies, and this supports the job on a wider area. The final drive is given to all the 4-sets of rollers of the Drive Unit in special models, providing better traction to the job. However, in that case a de-clutching arrangement is provided to the top rollers, in order to protect the gear boxes, as when the job hits the top rollers first while loading, forcing it to rotate via. the self locking gear box. Both the rollers automatically get adjusted for all job diameters. Accepts complete range of job diameters in one setting. Center axis of job remain stable for all job diameters. Wide range of Job diameters and Load capacities. Most suitable for 'thin walled' shells of large diameters. 'Four roller' contacts gives superior 'slip free' traction for thin walled vessels. Proven reliability and higher productivity. Most accepted design for very busy fabrication shops. Ideal design for using in conjunction with Column & Boom. Better acceptability to ovality of vessels compared to other models.
Self Aligning Type Welding Rotators
Get Price Quote
Self Aligning Type Welding Rotators, Propeller Shaft Welding Machine
Self Aligning Rotator
Get Price Quote
Self Aligning Rotator, Chemical Dosing Plant, Self Centering Rotator
