Separation Equipment Dealers in Pune

• Brand Name: Quality Tech
• Voltage: 220V,220V
• Operating Type: Automatic
• Driven Type: Electric
• Power: 1-3kw
• Material: Mild Steel
• Phase: 1
• Brand Name: Quality Tech
• Surface Treatment: Color Coated

• Material: Stainless Steel, Mild Steel
• Oil Recycle Rate: 0-5 L/Hr, 5-15 L/Hr
• Width of Belt: 0-50 MM, 50-400 MM
• Frequency: 0-50 Hz, 50-100 Hz
• Voltage: 0-60 V, 60-440 V
• Phase: Multi

Cyclone Separator is used to extract unwanted particles from air or other fluid. The Cyclone Separator, we deal in, is used in industries like sugar industry, petrochemical, pharmaceutical to separate dirt using vacuum pressure. We can make available the high performance Cyclone Separator in varied sizes and capacities. And the ability to come up with options makes us a renowned name as Cyclone Separator Manufacturer, Exporter and Supplier from the country.

Condensate pipe carries approximately 90% (by volume) of flash steam, and 10% of condensate. This bi-phase condition occurs immediate downstream of the trap or discharge orifice. To recover the flash steam, the bi-phase fluid has to be separated into condensate and flash steam. As the pressure is low, the separation method cannot allow much pressure drop, but must separate the two phases efficiently, so that the flash steam is dry enough to use.Heating of feed water with the help of flash steam generated from boiler blow down. In continuous blow down system, especially where blow down rates are high as a result of poor feed water quality, Flash Separators can be used to recover energy from blow down. This can improve boiler efficiency substantially, and increase the steam generation of the boiler. (Every 6 degree C rise in feed water temperature results in 1% fuel saving.)

• Voltage: 380-415 V AC
• Capacity: 800Kg To1200 Kg/hr
• Usage/Application: Industrial
• Material: SS
• Automation: Semi-Automatic
• Material Grade: SS304
• Frequency: 50/60Hz

• Color: steel
• Application: powder sieving
• Name: sifter

Vibro-sifter The Vibro-sifter mainly comprises of the following parts: 1.Top cone 2.Bottom cone 3.Sieve Mesh 4.Trolley with Castor wheels The vibratory sieve consists of an assembly mounted on a MS.trolley with castor wheels. The sieve has a vibratory motor and the motor with the sieve is mounted on four coil springs. The sieve is integrated into the product conveying line and is suitable for sieving the product in-line during product conveying. The sieve has mesh screen of desired size encapsulated in lead free silicon gaskets on either side, and an output is given at the periphery. Two sight glasses are provided on the top cone for visual inspection during sieving of the product. For cleaning, the top and bottom cone can be easily dismantled by loosening the wing nuts. The vibrating sieve should be electrically disconnected before cleaning with water solvent etc. While the screen of the sieve is vibrating, the material which is present on the screen gets shuffled and the material smaller than the size of mesh falls into the hopper. Thus, only the material of desired size is discharged into the hopper. If at any time the sieve gets choked, the sieve will not get damaged. To prevent such a situation, a hose has been connected between the top cone and bottom cone against the vacuum.

• Country of Origin: India
• Brand Name: Rajdeep
• Certification: ISO 9001:2008 Certified
• Voltage: 415 V
• Operating Type: Semi Automatic
• Material: Mild Steel/ Stainless Steel
• Finishing: Polished
• Production Capacity: 700 m3/hour
• Thickness: 3-5 mm

Cyclone separators separate dust from gas streams using a combination of forces, such as centrifugal, gravitational, and inertial. These forces move the dust to an area where the forces exerted by the gas stream are minimal. The separated dust is moved by gravity into a hopper, where it is temporarily stored. Cyclone separators are use for cyclonic action to separate dust particles from the gas stream. In a typical cyclone, the dust gas stream enters at an angle and is spun rapidly. The centrifugal force created by the circular flow throws the dust particles toward the wall of the cyclone. After striking the wall, these particles fall into a hopper located underneath. Cyclone separators create a dual vortex to separate coarse from fine dust. The main vortex spirals downward and carries most of the coarser dust particles. The inner vortex created near the bottom of the cyclone, spirals upward and carries finer dust particles.   Advantages of Cyclone Separator: Simple construction Have no moving parts Can be used as pre cleaners to remove coarse particulates and reduce load on more efficient dust collectors Can be designed to remove a specific size range of particles Constant pressure drop MOC: MS, SS304, SS304 L, SS316, SS316L.   Limitations of Cyclone Separator: Have low collection efficiency for irrespirable particulates Suffer decreased efficiency if gas viscosity or gas density increases Are susceptible to erosion Have drastically reduced efficiency due to reduction in airflow rate Cannot process sticky dust   Applications Areas: Fertilizer Cement Paint & Pigment Handling Mineral Processing Chemicals Petrochemicals Pharmaceutical Distillery / Brewery Food Industry

• Material: Stainless Steel
• Usage: Oil Separator
• Size: 300x270x200mm
• Application: Compressor
• Height: 20 to 40 Inch
• Features: Easy to install, Longer shelf life

We are a Pune(India) based organization involved in offering high quality products to the clients. Besides Letter of credit for payment, we are comfortable with online payment options and other offline methods. Buyers can choose an option best suited for them and make payment accordingly.

Grinding is one of the complex machining operation which is often the last finishing in processing component manufacturing. The operation generates very large quantity of contamination which includes grinding wheel dust and metal particles. By effective oil cleaning above problems can be reduced. Centrifugal Oil Cleaning System removes contamination from oil which helps in improving grinding finish and increases grinding wheel life. Grinding wheel dressing frequency is also substantially reduces resulting improved productivity

Centrifugal oil filters Top driver pulley is gear drive type on the OD and is designed such that to eliminate any belt slippage.Wiper holder set with PU wipers to give perfect wiping and low wearing

• Country of Origin: India
• Brand Name: Stratgem
• Certification: ISO 9001:2008 Certified
• Voltage: 220V
• Finishing: Polished
• Specialities: Excellent Functionality, Less Maintenance, Ruggedly Constructed, Durable
• Wind Inlet Speed: 12 - 20 m/s
• Grade: 304,316

Features High Efficiency Cyclones Single / Twin / Quad / 6 fold designs to suit applications Wide volume range Wide variety of applications Liners for abrasive material handling

We are a well-reckoned Manufacturer and Supplier of Cyclone Separator in Maharashtra, India. Cyclonic separation is a method of removing particulates from the air, gas or liquid stream, without the use of filters, through vortex separation. Rotational effects and gravity are used to separate mixtures of solids and fluids. The method can also be used to separate fine droplets of liquid from a gaseous stream. Our deft professionals thoroughly examine it against the stringent quality parameters before forwarding it to our clients.

• Material: MS
• Voltage: 220-240V
• line size: 1/2" to 12"
• Operating pressure: 16 Kg/cm2.
• Brand: Drytech
• End Connection: 1/4 BSP
• Model Name/Number: DMS - 10
• Capacity: 20 CPM

• Neutralization/degumming: 2500Kg./Hrs.
• Motor: 5.5 KW Std. with Clutch Drive
• Cleaning: 3000Kg./Hrs.
• Bowl speed: Approx 6800RPM
• Bowl volume: 21Ltr
• Net weight with motor: 600Kg.

We are a well-known Centrifugal Separator Exporter in Maharashtra (India). The Centrifugal Separator SRG-509 (For Oil & Fat Refining) that we make available is sourced from certified vendors. Centrifugal Separator SRG-509 is inclusion of a bowl flushing facility. The oil in this case is fed into the bowl via a hollow feed tube located in the spindle. The bowl flushing water is fed into the bowl via the space between the feed tube and the spindle wall. The Centrifugal Separator is hermetic, i.e. the separation takes place in a sealed system without air access. Buyers can purchase Centrifugal Separator at market-leading price from us. Features The hermetic design with mechanical seals for inlet and outlets protects the oil against oxidation. The hermetic, bottom-fed inlet ensures a gentle, non destructive acceleration of the feed stock up to full bowl speed. Both the light and the heavy phase leave the machine at an over pressure. No extra discharge pumps are required. The separation interface between the light and heavy phase is regulated simply by adjusting an automatic constant pressure valve at the light phase outlet. This can be done at any time during the operation. The machine is equipped with tachometer and revolution counter for speed supervision.

• Usage: Automobiles
• Function: Prevents Oil Blow-by from Being Displaced
• Installation: Easy
• Durability: Long Life
• Performance: Optimum
• Maintenance: Low

• Application: Used to Separate Stone and Sand Mixed in the Biomass Fuel
• Body Material: Metal
• Surface: Polished
• Application: Industrial
• Designed with: Screw Feeder, Vertical Cyclone, Rotary Air Lock Valve, ID Fan

We are one of the prominent manufacturers and suppliers of stone and sand separation system in Maharashtra.   With years of experience in the industry, we offer our clients an exceptional range of Sand & Stone Separation Systems in terms of capacity that are quality approved in nature and are in adherence with the set quality standards of the industry.   This system is used to separate stone and sand mixed in the biomass fuel such as soybean husk, rice husk, etc.   The system is designed with basic four equipment’s. Screw feeder Vertical cyclone Rotary Air Lock Valve ID Fan   Initially the biomass fuel is feed to the screw conveyer through the hopper. The screw conveyer carries the dried biomass and discharges it in the Y Shoot which is attached to the discharge point of the Screw conveyer. The Slanting screw conveyer is attached with one more screw conveyer under it. The smaller screw conveyer attached to the below side of the bigger screw conveyer, collects and carries the mud / sand present in the biomass fuel to the discharge point. The mud / sand which is collected through the discharge point of the smaller screw conveyer is ultimately taken away to the dumping point with the help of a trolley.   Now the biomass along with the big stones enters in to the Y shoot. The Y shoot is connected to the Vertical cyclone with a connecting pipe. The biomass entering the Y shoot and is sucked in to the vertical cyclone with the help of the ID fan. The process at the point of the Y shoot helps to separate the stones present in the biomass fuel.  The stones present in the biomass are collected at the discharge point of the Y shoot.   The clean biomass is entered in to the vertical cyclone and is discharged on the belt conveyer through a Rotary Air Lock Valve (RALV). RALV prevents the reverse entry of air in to the vertical cyclone. Ultimately the clean fuel enters the Boiler increasing the capacity and efficiency of the boiler.   Stone and sand separation system is designed with precise engineering. This system is tailor made as per requirement of the customer and capacities of the boilers.   Features and Gains. Designed with precise engineering The system is tailor made depending on requirement of the customer and capacities of the boilers. Increases capacity and efficiency of the boiler Reduces work load of the workers. System is provided with all supporting structure reducing the work load at the site.

• Material: Mild Steel
• Application: Industrial Use
• Size: 5 LPH To 250 LPH
• Feature: Rustproof
• Type: Belt Type & Horizontal Trolley Type.
• Country of Origin: India

• Material: Mild Steel
• Shape: Cylindrical
• Color: Black
• Condition: New
• Finishing: Coated
• Pattern: Plain
• Feature: Durable, Fine Finished, High Strength, Low Maintenance

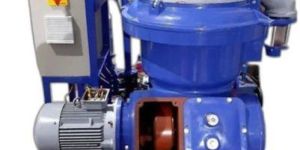

• Country of Origin: Made in India
• Type: DISK TYPE
• Usage/Application: Oil Removing
• Model Name/Number: 21-22/MIPL0045

• Brand Name: Alfa Tech India
• Driven Type: Electric
• Color: Blue
• Condition: New
• Voltage: 220V
• Weight: 100-200kg
• Warranty: 5years
• Country of Origin: India
• Motor: ½ HP Single Phase
• Tank Capacity :: 25 L
• Body: Mild Steel
