Servo Systems Dealers in Pune

• Type: Automatic
• Power: 15Kw
• Type: Automatic
• Usage: Industrial
• Rated Frequency: 50-60HZ
• Speed Counter: 100KHz

• Brand Name: Delta,Delta
• Country of Origin: Taiwan

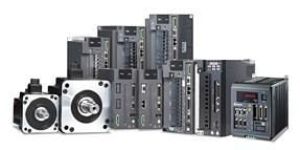

As the technology of microprocessor unit becomes more advanced and much further, the development and cost effectivity of permanent magnet manufacturing technology for servo motor and high power and high performance semiconductor power devices is improved continuously. Therefore, AC servo motor and AC servo control system have become the basic techniques for accomplishing automation control technology in current industry field. Delta servo system is an omnibearing integrated servo system which is based on Delta's strength in industrial and electronic technology and developed for different customers' requirements of various application machine tools. All ASDA series servo drives are provided with a superior digital signal processor (DSP) which represents a high-speed performance of the control circuit loop. Besides, the other features of Delta ASDA series, including gain tuning, smooth motor operation and software analysis / monitor function, also provide high-speed and high-precision motion control for a wide range of industrial automation applications.

Description : The integration of servomotor and electronic drive unit in the same housing makes this drive system predestined for applications requiring high flexibility and dynamics, such as those in the food & beverage and packaging industries. The decentralisation of the drive unit offers benefits in mounting, installation and operation. Depending on the application, up to 60 drives can be integrated into the servo drive system.

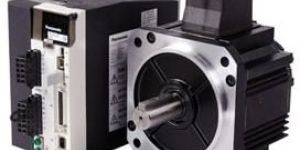

Product Name AC Servo System Part No MSME404S1H Brand Name Panasonic Description High performance, easy & with high resolution encoder Brand Name :Panasonic Output (W) :4000 Application Driver Standard Type :MFDHTA464 Application Positioning Type :MFDHTA464E Input Power Supply :3-phase 400V Rated Speed (RPM) :3000 Rated Torque(Nm) :12.7 Frame Size :F Inertia Ratio (x 10-4 kg � m2) :14.2 Encoder Resolution :17-BIT Absolute Brake :O Software Download :Acservo-panasonic

The Servo Drive System has created a non-handle design. You can open and close the drawer quietly and smoothly by touching any part of the panel, which makes the operation more convenient and easier.

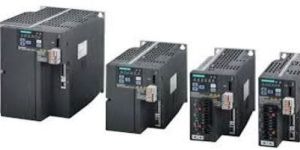

We are Authorized Siemens Dealer, Distributor and Automation Partner in Pune (Maharashtra, India) The servo drive system comprises the basic SINAMICS V90 servo converter and SIMOTICS S-1FL6 servomotor. The system features eight converter frame sizes and seven motor shaft heights to cover a performance range from 0.05 kW to 7.0 kW for operation in single-phase and three-phase networks. Can be simply integrated via PTI, PROFINET, USS, Modbus RTU. The SINAMICS V90 servo drive system enables a wide range of simple Motion Control tasks to be implemented cost-efficiently and conveniently with the focus being on dynamic motion and processing. SINAMICS V90 Servo Drive System - An Overview of its Strengths Optimized servo performance Cost effective Easy to use Reliable operation With SIMATIC controllers - a strong team in the TIA Portal

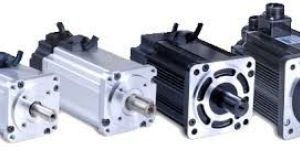

KuSaBa Engineers Private Limited offers a range of servo products in the field of BLDC (Brushless DC) Servo Motors, DC Servo Motors, Disk Armature Motors etc. These motors are available starting from fractional wattage to 50 kilowatts. The range includes Standard Motors, Explosion Proof Motors, Extremely Flat Motors etc

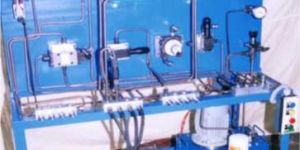

Hydraulic Servo System is mostly used in technical educational institutes, universities, engineering colleges and designed to provide the ease to the students. Moreover the assortment of the Electro Hydraulic Servo System is accessible within the various specifications. The stringent quality norms have been always followed by us to cater the best of the best product range to our prestigious clients. In addition, we stand as the eminent Hydraulic Servo Control System Manufacturer and Exporter from India. CON-02 INTRODUCTION Feed back control systems are commonly used in controlling various system parameters like temperatures, speed, level, position etc. Those control systems normally include set point input actuating signal controlled variable and feed back. In the practical Hydraulic System, it is always observed that the prediction made by using electrical counterparts in mathematics do not hold in practice. Besides due to inherent non liniarities of Hydraulic System, it is also difficult to predict their behavior. Because of this drawback, students get confused and it is having its effect on the thinking process of the students, hence ' EEE' has developed Hydraulic Servo System. This equipment is able to give the feel and the judgement of actual performance of the system. It can be possible by varying the values of various parameters and anyone can understand, performance, inter-relationship between parameters. Initial part of the equipment is the basic servo system. This includes a power-pack, a four way spool valve used as a servo valve, the output cylinder, input and feedback linkages. A sliding spool type servo-valve supplies fluid to a piston whose motion is feed back through mechanical linkages to actuate the servo-valve and closed the loop. The translational output is converted into rotational output. The input and output displacements are transferred to recording pens through flexible linkages. A synchronous motor is used to feed paper strip at a constant speed on which input and output curve are obtained simultaneously. To simulate inertia load on the output side, a load disc is mounted of which weights are clamped and the inertia can be varied. A damper is attached to the output jack, to study the effect of damping on the output curve. Damping is varied and its effect on output is observed. RANGE OF EXPERIMENTS Response at various pressures by 1. Step Input & cams at no load. 2. Response with Intertia load, and 3. Response with Viscous damping. FEATURES Totally open construction for easy understanding of functions. Incompressible working fluid. Working pressure changeable from 0.5 to 25 kg/cm , single phase electric operation Ordinary ball pen recorder. SPECIFICATIONS 1. Potentiometer for input and output movement recording over recorder. 2. ADC card to transfer variables like input output movements / pressure etc. to PC. 3. Air compressor 2 HP with control circuits for air supply. 4. Windows based software for servo system analysis. 5. Computer P4 / 40GB HDD / 128MB RAM / Keyboard / mouse / 15"Monitor color monitor / 52xCD Rom Drive. INSTRUCTION MANUAL A copy of an instruction Manual accompanies the equipment. This details the equipment and describes procedure of operation. SERVICES REQUIRED 2.0 m X 1.5 m floor space area. Approx. 60 lit. SAE 20 lubricant Oil. Single phase supply. CON-04 INTRODUCTION The EEE Oil Hydraulic Trainer is designed to give the clear understanding of capabilities of hydraulic components for automated production to students of mechanical and production engineering. It is versatile. Portable equipment based on the present needs of engineering college curriculum. Through the operation manual describes about 15 different hydraulic circuits for building, users can increase this number. For reliable performance all the components used are reputed manufactures. For quick building circuits and avoiding leakages quick couplings with double shut of are is used. Besides different hydraulic circuits. It is possible to study individual components for its characteristics about which guidelines are given in instruction manual. FEATURES 1) Mounted on caster wheels for portability. 2) Quick connections. Double shut off couplings for building circuits without any tools. 3) Special sub plates for all components for front connection. Enabling observation of circuits and ease of understanding of role of each components in circuits. 4) Loading arrangement to cylinder gives added value to the equipment. SPECIFICATIONS SCOPE OF SUPPLY :- 1. Power pack :- Sump 20 Liter capacity. / Pump: vane for gear type / Maximum flow: 10 L.P.M. at working pressure 35kg/cm / Driver Motor: 1 HP. single phase. / Induction motor 1440 rpm.Pressure relief valve for safety & pressure adjustment. 2. Vane / Gear Pump. 3. Relief Valve. 4. Return Line Filter. 5. Reservoir. 6. Pressure Gauge for pump. 7. Direction Control valves. 8. Flow Control valve. 9. Sequencing valve. 10. Pressure reducing valve. 11. Hydraulic cylinder. Double Acting ( 1No.). 12. Two numbers of pressure Gauge will be provided for measuring pressures. 13. Solenoid operated directional control valve. 14. Non return Valve. HYDRAULIC CIRCUITS :- 1. Extend, Retract and Stop ( Linear Actuator ) 2. Regenerative Circuits, 3. Direction control of Rotary Actuator ( Hydraulic Motor ) 4. Speed Control Of linear Actuator. 5. Meter In and Meter Our Circuits . 6. Sequencing of two Actuators. 7. Deceleration Circuit. 8. Counter balancing circuits. 9. Sequencing with speed control. 10. Electrical Circuits. ( Travers, Feed, Retract ) SERVICES REQUIRED 20 Lit. SAE 10 Oil. 440 V.AC. 15 AMP. Three phase 50 Hz. Supply Space Required:- Floor space 3 m. X 2 m. INSTRUCTION MANUAL A detailed instruction Manual wherein a procedure of performing circuits & maintenance is provided.

• Frequency: 50 Hz
• Brand Name: Delta
• Max Speed: 5000 RPM
• Frame Size: 80mm
