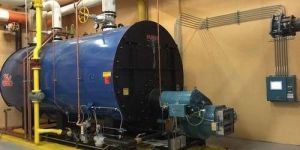

Stainless Steel Steam Boiler
Material : Stainless Steel
Voltage : 220-240 V
Solid Fuel Fired Thermic Fluid Heater
Solid fuel fired thermic fluid heater has two sets of coils. One is provided above the furnace to take advantage of radiant heat exchange and other set is used to carry out convective heat transfer. The thermic fluid is recirculated from process in closed loop with the help of the circulation pump. Product Range : From 1,00,000 kcal/Hr. to 50,00,000 kcal/Hr. Temperature upto 300oC. Fuel - Coal, wood, lignite, briquette, agro waste such as bagasse, husk. Firing - Manual as well as automatic with bubbling bed or fluidised bed combustion. Salient Features : Excess Air optimisation - Radiant Heat Exchange is carried out above the furnace Hence, less excess air is required and ultimately increase efficiency. Air preheating - Combustion air from FD fan passes through air preheater that absorbs the waste heat in the fuel gases. It ultimately results in increase in efficiency. Balanced Draught System - It means reduction of infiltration of unwanted air though fire gates of minimum level. It results into maximum heat recovery from air preheater and assures greater efficiency.
Material : Alloy Steel
Certification : CE Certified
Application : Domestic, Industrial, Machinery
Weight : 100-1000kg
Color : Metallic
Automatic Grade : Automatic
Motor Power : 1-3Hp
Feature : Double Chamber, Easy Installation
Temperature : 100-150°C, 150-200°C
...more
Pressure Vessels
We design and manufacture pressure vessels as per client’s requirements and can be design as per international codes such as ISO, ASME. We design and manufacture De aerator tanks, Feed water storage tanks, Fuel storage tanks, economisers, air pre heaters, radiators as per the process design requirements. We also manufacture various types of Heat Exchangers in shell and tube type, water tube type, finned tube type construction as per the client requirements.
Material : Metal
Pressure : 0-15bar, 15-30bar, 30-45bar, 45-60bar
Surface Finishing : Chemical Coated
Feature : Anti Corrosive, Durable, Eco-Friendly, High Quality, Rust Proof, Shiny Look
Warranty : 5years
Working Temp : 0-50Deg C, 50-100 Deg C
...more

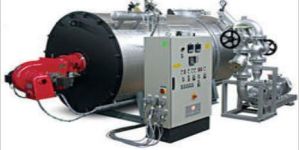

Oil Fired Thermic Fluid Heater
Oil/ gas fired thermic fluid heaters are fully automatic with high fuel efficiency heaters. These are out of the purview of IBR. These can be designed in vertical or horizontal orientation. Product Range : From 1,00,000 kcal/Hr. to 50,00,000 kcal/Hr. Temperature upto 300oC. Fuel - HSD, LDO, Furnace oil , LSHS, Natural gas, LPG,biogas.
Material : Metal
Application : Domestic, Industrial
Weight : 100-1000kg, 1000-2000kg, 2000-3000kg
Automatic Grade : Automatic
Power Source : Solid Coal
Motor Power : 1-3Hp, 3-6Hp, 6-9Hp, 9-12Hp
Feature : Double Chamber, Easy Installation, Fully Insulated, Minimal Maintenance, Noiseless Operation, Single Chamber
Temperature : 100-150°C, 150-200°C, 200-250°C, 250-300°C, 300-350°C
...more
Multi Fuel Water Tube Boiler
Composite type boiler is combination of smoke tube & water tube design. This construction gives benefits of both types of designs. Membrane panel type water tube structure is attached to smoke tube type shell. Furnace is made of channels & beams which is covered by refractory bricks & fire bricks. Multiple fuel feeding doors & ash doors are provided as per capacity of Boiler. ID and FD fans are provided for maintaining balanced draughtAll type of grates like fixed grate, Fluidized bed, Controlled air combustion, Dumping grate, Pulsating grate, Travelling grate, chain grate can be fitted according to fuel availability & capacity of Boiler. Product Range : Capacity - 2000 kg/hr 15,000 kg/hr Pressure - 10 kg/cm2 to 25 kg/cm2(g) Fuels - Solid fuels such as Wood, Coal, Briquettes, Sawdust, Bagasse, rice husk, coffee husk, palm shell, Groundnut shell, coconut shell etc. Special Features : These Boilers are multifuel type boilers. The firing system can be modified for burning multiple fuels. Multiple doors are available for manual fuel feeding & ash handling. Easy for installation. Most customized type design. Accessories like Air pre heater, economiser, water pre heater can be provide to enhance output and efficiency. The furnace is also external to the boiler to enable combustion of high moisture agro-fuels like bagasse. Particulate emission controlled using Multicyclone Dust Collectors, bag filters and ESP.
Type : Multi Fuel Boiler
Material : Cast Iron
Weight : 100-200kg
Color : Metallic
Driven Type : Fuel
...more

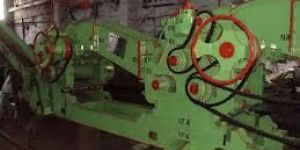

Jaggery Plant
A good Jaggery Plant is necessary for quality processing of the sugarcane. To get the best output from good quality raw material, it is necessary to have the best quality processing system. The key to a good product is in the boiling of the sugar cane juice. We provide the best quality jaggery plant for excellent processing and boiling systems that guarantee the standard quality final product to make the best out of good quality sugarcane.
Type : Industrial Plant
Warranty : 3 Years
...more
Hot Water Generator
There is a variety of Hot Water Generators available like oil fired hot water generators, fuel fired generators, electric generators, etc. Electric Generators are convenient as all they need to operate after installation is a connection to the electrical supply and the water output. We have the best quality electrical hot water generators. These are easy to maintain and efficient. They have multiple applications and can be used for convenient water heating in big farm houses, residential areas, refineries, petroleum chemical industries, etc.
Certification : CE Certified
Color : Metallic
Voltage : 110V, 220V
Power : 1-3kw, 3-6kw
Warranty : 1year
...more
High Pressure Bi Drum Boiler
Solid fuels such as Wood, Coal, Briquettes, Sawdust, Bagasse, rice husk, coffee husk, palm shell, Groundnut shell, coconut shell etc. This is a twin-drum water tube boiler. Top drum is steam drum and bottom drum is water or mud drum. This is most suitable for applications that require uninterrupted boiler operation even on fuel which have a high fouling tendency. Bi-drum boilers can be used for generating saturated steam as well as superheated steam. Superheated steam is used for incidental power generation or cogeneration power in industries such as sugar, distilleries, paper, Tea, solvent extraction, rice, textiles, etc.All type of grates like fixed grate, Fluidized bed, Controlled air combustion, Dumping grate, Pulsating grate, Travelling grate, chain grate can be fitted according to fuel availability & capacity of Boiler. FBC is suitable for burning coal or lignite or other agro-based low-grade fuelsDumping grate or pulsating grate is suited for burning fibrous & moist fuels obtained from industrial waste & agricultural residues, Travelling grate is suited for burning low ash fuels. Special Features : Bi-drum boilers are also called as Power generation boiler/Co-generation Boilers. These Boilers are multifuel type boilers. Automatic fuel handling with conveyors is possible. Automatic ash removal system can be easily incorporated. Multiple doors are available for manual fuel feeding & ash handling. Easy for installation. Air pre heater, economisers can be provided to enhance output and efficiency. Particulate emission can controlled using Multicyclone Dust Collectors, bag filter or ESP.
Type : Bi Drum Boiler
Material : Metal
Capacity : 5000 kg/hr 50,000 kg/hr
Pressure : 25 kg/cm2 to 90 kg/cm2(g)
...more

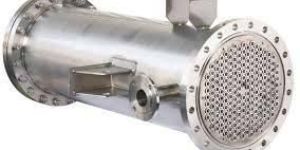

Heat Exchanger
Heat Exchangers are equipment that are too used to efficiently transfer the heat from one medium to the other. The mediums may be separated to prevent mixing or may be in direct contact. They have multiple applications ranging from petroleum refineries to air conditioning and refrigerating to natural gas processing industry to petroleum chemical industries. We provide the best quality, corrosion resistant heat exchangers that are durable and are easy to install.
Material : Gun Metal
Certification : CE Certified
Usage : Air, Oil, Water
Grade : AISI
Color : Metallic
Voltage : 110V
Automatic Grade : Automatic
Warranty : 1 Year
Operating Temperature : 0-50Deg C, 100-150Deg C
...more

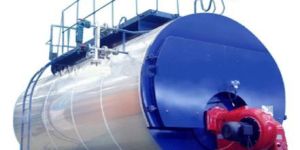

Gas Fired Boiler
Package type boilers are internal furnace type with three pass, fully wet back & smoke tube type design. Fuel is fired inside the furnace with the help of the burner. Package type oil/gas fired boiler is designed to provide economical solution for heating with minimum operational complexity. Product Range : Capacity - 500 kg/hr to 20,000 kg/hr Pressure - 10.54 kg/cm² to 21 kg/cm²(g) Fuels - LDO, HSD, FO, LSHS, Natural gas, LPG, Biogas Efficiency - 88 % plus on NCV basis Salient Features : Compact and efficient design 3-pass fully wet back design for highest efficiency. Special type steam separator provided for Best quality steam. Easy for installation. Accessories like Air pre heater, economiser or water pre heater, Dust collector can be provided.
...more
food processing system
There is a variety of Food Processing Systems ranging from bread-cutting machines to deep fryers to papad and chappati makers, available in the market. We provide you a wide range of multipurpose food processing system which has been designed by the best of our engineers and technicians. This machinery has high durability, sturdy construction and is easy to operate. It requires very little manpower to operate.
Material : Metal
Weight : 100-1000kg
Warranty : 3 Years
...more
Dairy Equipment
We provide a wide range of quality Dairy Equipment. This equipment is durable and has been designed and manufactured by experts. It has a long lifespan. This dairy equipment is used to store and cool the milk, retain nutrition level, separate harmful elements from the milk. They are also used for preparing dairy items such as yoghurt and to churn buttermilk. We have all kinds of standard quality dairy equipment to fulfil client requirements.
Application : in Dairy
Material : Stainless Steel
Warranty : 2 Years
...more
Boiler Accessories
It is extremely necessary to check the water and heat level of the boiler. They help optimize the performance of the boiler. We have all kinds of Boiler Accessories like feed water pump, injector, air pre-heater, superheater, economiser, gauge, etc. These accessories will help you maintain the water level in the boiler at all times and monitor the heat levels. The gauge will prevent access water-flow. This will improve the performance and output of your boilers.
Material : Aluminum, Pvc
Diameter : 0-25mm, 100-125mm, 25-50mm
Shape : Rectangular, Round, Square
Thickness : 0-20mm, 20-40mm, 40-60mm
Application : Construction, Industrial
Color : Metallic
Technics : Molding
Finishing : Coated
...more

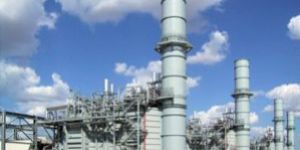

Waste Heat Recovery System
These are custom built equipments as per the type waste heat available and the process heat requirements. A detailed study of the clients system is required. These systems can be designed to recover waste heat from high temperature flue gases of furnaces, DG sets, boilers or any other heat source. The waste heat can be converted into hot water, steam, hot oil or hot air as per the process heating requirements.The waste heat recovery can be designed in shell and tube type or water tube type design based on the operating pressure of the system.
Weight : 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg
Voltage : 110V, 220V, 380V, 440V
Condition : New
Application : Sealing Machine
Automatic Grade : Automatic
Power : 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
Driven Type : Electric
Warrenty : 5years
...more
design consultancy
We provide design and consultancy services for steam boilers, hot water generators, thermic fluid heater and waste heat recovery systems and its accessories. We also provide consultation for turnkey heating systems.
...more
