Residual Voltage Transformer

25,000 - 55,000 Per Piece
1 Piece(s) (MOQ)

Residual Voltage Transformer (RVT) is a category of instrument transformers which are in electrical systems to protect capacitor banks from earthing faults and prevent damage. The main function of this class of instrument transformers is to detect neutral to ground fault conditions and discharge the capacitor banks as and when required automatically. In an electrical system in normal working conditions, the windings of an RVT will have no voltage output, but in the event of an earth fault, a voltage will be developed across the open delta winding of the transformer which will activate the relays and cut-off the power connection, thereby protecting the measuring equipments from damage. The function of the RVT is similar to voltage transformers in some areas. However their and utility is different from one another. Normally 3.3, 6.6,11,22,33 KV RVT are used. IS/IEC/BS other standards on request.

Weight : 65 - 180 Kg
Packaging Type : Wooden Box
Overall Length : Depends on design
Speciality : Robust Construction, Reliable
Usage : Outdoor, Industrial, Electricity Distribution
Size (mm) : Depends on design
Type : Residual Voltage Transformer
Brand Name : Shree Electro Controls
Material : Copper
Certification : ISO 9001:2008
Color : Grey
Finishing : Pinted / galvanized
Rated Voltage : 3.3, 6.6, 11, 22, 33
Input Voltage : 3.3, 6.6, 11, 22, 33
Output Voltage : 110/190
Power : Minimum
Driven Type : Electric
Standard : IS 3156
Phase : Three Phase
Warranty : 2 Year
Cooling Type : Oil Cooled
Country of Origin : India
Mounting Type : Pole Mounted
Corrosion Resistance : Yes
Operating Type : Manual
Secondary Voltage : 110/190
...more
Get Best Price
OIP Combined Metering CTPT Set

40,000 - 125,000 Per Piece
1 Piece(s) (MOQ)

CT-PT Combined Units are also called Metering Units. Metering Units are used for both indoor/outdoor applications. These units are of dry types or oil immersed. The Class of accuracy for metering CTs are 0.1, 0.2, 0.5, 0.5s and 1.0 and other factors need to be considered for a CT are ratio, rated burden, accuracy limit factor,etc. The class of accuracy for metering PTs are 0.1, 0.2, 0.5 and 1.0 Types of CTPT: 03 nos. single phase CTs and 01 no. three phase PT. 03 nos. single phase CTs and 03 no. single phase PT. As per customer specifications. IS/IEC/BS other standards on request

Type : Ct Pt Combined Metering Unit
Certification : ISO 9001:2008, 9001:2015
Application : Industrial
Condition : New
Warranty : 2years
Country of Origin : India
...more
Get Best Price
OIl Filled Voltage Transformers

12,500 - 35,000 Per Piece
1 Piece(s) (MOQ)

The function of the voltage transformer is for electrically isolating the instruments and relays from the high voltage side and for transforming voltage from higher values to proportional lower values upto 63.5V, 100V and 110V as per the standard of equipment. Types of PT: Single pole insulated VT (Solidly Earthed) Double Pole Insulated VT Three phase VT Accuracy The class of accuracy for metering PTs are 0.1, 0.2, 0.5 and 1.0 and protection of PT is 3P. IS/IEC/BS other standards on request

Type : Oil Filled Transformer
Brand Name : Shree Electro Controls
Application : Industrial Use,Outdoor for metering & protection of Electrical System
Weight : 100-1000kg
Color : Grey
Voltage : 1.1,3.3,6.6,11,22,33 KV
Condition : New
Frequency : 50hz,60hz
Automatic Grade : Semi Automatic
Driven Type : Electric
Warranty : 2years
Country of Origin : India
Warrenty : 2yrs
Phase Type : Three Phase,Single Phase
Phase : Single Phase or 3 phase
...more
Get Best Price

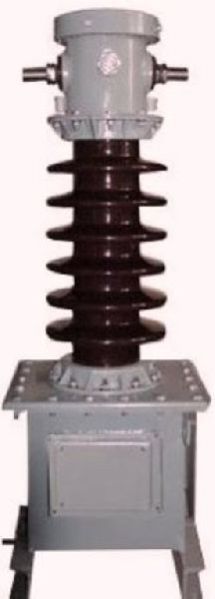

Oil Filled Current Transformer

12,500 - 65,000 Per Piece
1 Piece(s) (MOQ)

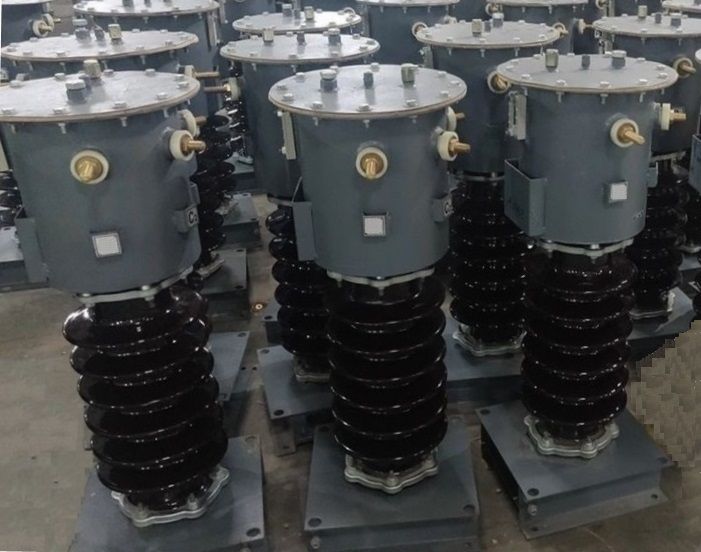

The Class of accuracy for metering CT are 0.1, 0.2s, 0.2, 0.5s, 0.5 and 1.0 and in case of protection of CT, it is 5P10, 5P20 and 10P10. Other than class of accuracy, other factors need to be considered for a CT are ratio, rated burden, accuracy limit factor and knee point voltage etc. Types of CT: * Live Tank CT * Dead Tank CT IS/IEC/BS other standards on request

Type : Oil Filled Transformer
Brand Name : Shree Electro Controls
Certification : ISO 9001:2015
Application : Industrial Use,Power Grade
Weight : 100-1000kg
Color : Grey
Voltage : 1.1,3.3,6.6,11,22,33 KV
Condition : New
Frequency : 60hz
Automatic Grade : Semi Automatic
Driven Type : Electric
Warranty : 2years
Country of Origin : India
Warrenty : 2yrs
Phase Type : Single Phase
Phase : Single phase Out door Current Transformer
...more
Get Best Price
LT Resin Cast Current Transformer

200 - 5,000 Per Piece
1 Piece(s) (MOQ)

electrical parameters: 1. highest system voltage: 0.66kv 2. primary current up to 5000amp 3. secondary current: 0.577a, 1a, 2.89a,5a 4. class of accuracy: 0.1, 0.2s,0.2, 0.5s,0.5, 1.0, 5p,10p,15p,ps 5. rated burden:5, 10, 15, 20, 30va short time current rating as per customer requirement is/iec/bs other standards on request

Type : L T Transformers
Brand Name : Shree Electro Controls
Certification : ISo 9001:2015
Color : Brick red
Condition : New
Output Type : AC Single Phase,AC Three Phase
Cooling System : Air Cooling
Country of Origin : India
Warrenty : 2years
Automation Grade : Semi Automatic
Material : LT Resin cast Current Transformers
Application : Metering & Protection of Electrical System
Phase : 1 or 3
...more
Get Best Price
Epoxy Resin Cast Voltage Transformer

6,000 - 35,000 Per Piece
1 Piece(s) (MOQ)

The purpose of the voltage transformer is electrically isolating the instruments and relays from the high voltage side.and for transferring voltage from higher values to proportional lower values upto 63.5V, 100V and 110V as per the standard of equipment. Accuracy The class of accuracy for metering PT are 0.1, 0.2, 0.5 and 1.0 and protection of PT is 3P. IS/IEC/BS other standards on request

Weight : 15 - 65 Kg
Packaging Type : Wooden Box, Carton Box
Speciality : Robust Construction, Reliable
Usage : Indoor
Type : Cast Resin Transformer
Brand Name : Shree Electro Controls
Material : Cast Resin
Shape : Rectangle
Certification : ISO 9001:2008
Color : Brick Red
Voltage : 1.1,3.3, 6.6,11, 22, 33
Finishing : Coated
Driven Type : Electric
Standard : IS/IEC/BS other standards on request
Phase : Single Phase
Warranty : 2 Year
Cooling Type : Dry Type
Country of Origin : India
Mounting Type : Panel Mounted
Corrosion Resistance : No
Operating Type : Semi Automatic
CT Ratio : As per specification
Class Of Insulation : E
Coil Structure : Bar/Wound
Number Of Output : 1
Maximum Ambient Air Temperature : 35 decC
Working Frequency : 50 - 60 Hz
...more
Get Best Price

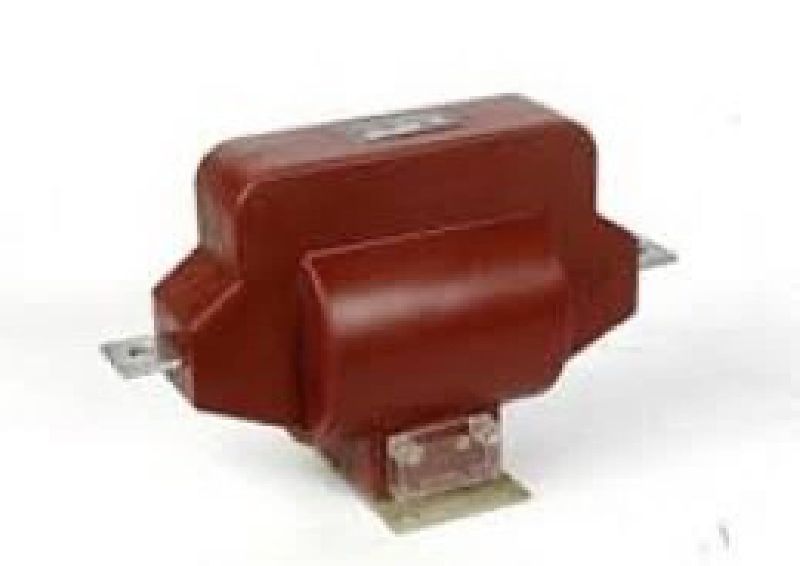

epoxy resin cast current transformers

5,000 - 35,000 Per Piece
1 Piece(s) (MOQ)

The Class of accuracy for metering CT are 0.1, 0.2s, 0.2 0.5s, 0.5 and 1.0 and in case of protection of CT, it is 5P10, 5P20 and 10P10. Other than class of accuracy, other factors need to be considered for a CT are ratio, rated burden, accuracy limit factor and knee point voltage etc. IS/IEC/BS other standards on request

Brand Name : Shree Electro Controls
Material : Copper
Shape : As Per Design
Certification : ISo 9001;2015
Color : Brick Red
Packaging Type : Wooden Box
Driven Type : Electric
Surface Finishing : Coated
Standard : IS/IEC/BS Other Standards On Request.
Phase : Single Phase
Warranty : 2 Year
Cooling Type : Dry Type
Country of Origin : India
Mounting Type : Panel Mounted
Speciality : Robust Construction,Reliable
Core Type : Wound CT
Operating Type : Semi Automatic
Usage : Industrial,Electricity Distribution
Frequency : 50-60 Hertz
Number Of Cores : 1-5
Operating Temperature Range : 45 Deg C Above Ambient
Coil Type : Round Or Rectangular Or Split
CT Ratio : As per customer specifications
Insulation Level : IS/IEC/BS other standards on request.
Operational Life : warrantied 5 years and more
Secondary Current : IS/IEC/BS other standards on request.
...more
Get Best Price
Bus Duct Current Transformers

3,000 - 35,000 Per Piece
1 Piece(s) (MOQ)

These current transformers are used for metering and protection purposes with power generators.We can offer as per customer specifications and dimensions. They comply with various national and international standard. IS/IEC/BS other standards on request

Speciality : Robust Construction, Reliable
Brand Name : Shree Electro Controls
Material : Copper
Shape : Round
Certification : ISO 9001:2015
Color : Brick Red
Driven Type : Electric
Surface Finishing : Coated
Standard : IS/IEC/BS other standards on request
Phase : Single Phase
Warranty : 2 Year
Cooling Type : Dry Type
Country of Origin : India
Core Type : Ring Core Type CT
Operating Type : Semi Automatic
Frequency : 50 - 60 Hz
Number Of Cores : 1 - 5
Operating Temperature Range : as per IS/IEC/BS other standards on request
Coil Type : Ring
CT Ratio : as per Customer requirment
Insulation Level : IS/IEC/BS other standards on request
Operational Life : more than 5-10 years
Tapping Range : IS/IEC/BS other standards on request
Secondary Current : IS/IEC/BS other standards on request
...more
Get Best Price

Be first to Rate

Rate This

Select the service for which you are writing review for this business

How would you rate the business?

What would you like other to know about this business, based on your experience?

Minimum 20 characters!

About the Company

Primary Business Manufacturers
Secondary Business Type Exporters / Service Providers / Wholesale Suppliers
Year of Establishment 2005
No. of Employees 20 - 50
Annual Turnover Rs. 2.5 to 5 Crore Approx.
Ownership Type Corporation/Limited Liability Company
GSTIN Number 27AAACF7753J1ZC

Opening Hours

SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM

Established in 2005, and with over a decade experience in design, manufacturing Oil filled and Epoxy Resin cast Transformers, as well as servicing and maintenance of the same,
Shree Electro Controls Private Limited along with its associates, are well established in design, manufacturing, servicing and sales of Medium Voltage Electrical Transformers, Current & Potential Transformers, metering Cubicles, etc.
An inclination towards building long term business partnerships as well as personalized services gives Shree Electro Controls an invaluable goodwill in the Government as well as private clientele.
Knowledge, experience, associates and trusted partnerships, goodwill are the pillars on which entire foundation of Shree Electro Controls resides.
Products are type tested at recognized institutes such as CPRI / ERDA etc.
The aim is to manufacture and supply cost effective good product quality and timely delivery periods.
