Shreepad Industries Haveli, Pune, Maharashtra

These Magnetic –Vee blocks are invaluable and versatile in tool – making and inspection, in quality control and tool – room. Due to their extremely high magnetic power they can be used for drilling and grinding (both wet and dry) and even for light milling work. The - Blocks have a total of three magnetic surfaces. Top and bottom each with 90- degree v – angle and end surface opposite from switch. All three magnetic surfaces as well as the two sides are carefully ground. Their accuracy for flatness, parallelism and square ness is within 0.005 mm or 0.0002 inches for all work, which requires accurate positioning.

The V – Blocks have two V – angles of different size to take parts of varying dimensions. By means of the clamp the Work can be held tight in the block. The accuracy of the vee block/100mm is within 0.005 mm.

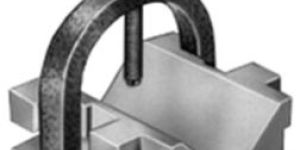

V– BLOCK HARDENED (UNIVERSAL) (with clamp) SH - 447 Hardened and ground on all working surfaces to an accuracy within 0.005 mm.

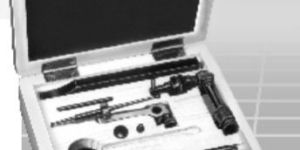

This 787 Universal Dial Indicator Set has a spiral type mechanism of unusually rugged construction for the more severe applications around machinery and for general tool work. The indicator can be supplied in inches as well as in metrics. The hole attachment used in conjunction with any standard dial indictor make it possible to test inside of holes and many other surfaces that can not be reached with the regular indicator spindle. The each attachment has a 0.375” diameter hole to fit all indicators and are securely clamped to the indicator stem by means of a knurled screw. The ball end of the swivel arm, which contacts the work, is 1/ 8 “diameter and the body of the arm is 3 / 16” diameter.Code : KM - 787

Universal Surface Gauge has many desirable features and is designed for wide range of uses, which are supplied in four sizes.The base is made from case hardened steel, ground on bottom and at one end. The Fine adjustment feature makes it possible to obtain quick and accurate settings.This adjustment is made by a knurled thumbscrew, which is located at the end of the rocker. The rocker runs the 2/3 the length of the base and pivots against a stiff spring located at the rear end of the base.

Universal Surface Gauge has many desirable features and is designed for wide range of uses, which are supplied in four sizes. The base is made from case hardened steel, ground on bottom and at one end. The Fine adjustment feature makes it possible to obtain quick and accurate settings. This adjustment is made by a knurled thumbscrew, which is located at the end of the rocker. The rocker runs the 2/3 the length of the base and pivots against a stiff spring located at the rear end of the base   SPECIFICATIONS:                                     KM – 900            KM – 901            KM – 902            KM – 903HEIGHT                           185 mm              300 mm              450 mm              600 mmBASE          LENGTH                            55 mm                80 mm              100 mm              110 mmANDWIDTH                           45 mm             65 mm            85 mm           90 mm  Additional pillar of 4”, 9”, 12”, and 18” can be supplied on demand to respective cat nos

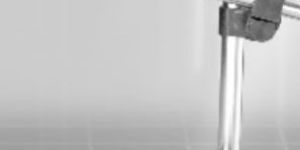

The instrument is mainly used on machine tools for checking true running on iron plates, surface plates as well as for general checking operations. The base can also be used as a Magnetic - V - Block to hold arbor checking tapers and parallelism.Salient Features :Can be used as a Magnetic Stand as well as a Magnetic V-Block. Proper clamping can be done by use of large knobs. Dial clamping dia is 5/16" or 8 mm. A small setting screw is provided for fine adjustment.A powerful magnet is in the base. On/Off switch is provided on the magnetic base. The base has four adhesion faces and V - groove for mounting arbors ranging 20 dia to 150 dia.Specifications : L x W x H of Base - 65 x 56 x 70 mm Main Column - 18 x 200 mm Extension ARM - 18 x 220 mm Magnetic Pull - 90Kg

To ensure complete safety of the products from diverse damaging factors such as rain, dust, sunlight, moisture, etc., we keep the lot in our capacious warehouse before dispatch. Purchasers across Maharashtra(India) and other market places can get in touch with us for buying our product as per requirement.   These tri squares come with these special inbuilt features : Made from two pieces of fully seasoned, fine quality steel. Squares having accurate right angles on both sides. Beam & blade are accurately lapped for straightness & parallelism. All squares are hardened to 58 (±2) Rc. Beam is grooved at inner corner for clearance of burns & dirt.

These tri squares come with these special inbuilt features:Made from single piece of fully seasoned, fine quality steel.Squares having accurate right angles both inside & outside. Beam & blade are accurately lapped for straightness & parallelism. All squares are fully hardened to 58 (+-2) Rc. Beam is grooved at inner corner for clearance of burns & dirt. Packed in individual wooden box.

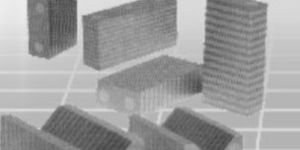

Ground with parallelism, flatness, and square ness within 5 microns. These blocks have no magnetism but when placed parallel to poles of chucks, they transfer magnetic power to top and sides for holding. Available with V shaped face for holding round jobs. One pair of blocks is finished together.

Ground with parallelism, flatness, and square ness within 5 microns.These blocks have no magnetism but when placed parallel to poles of chuck, they transfer magnetic power to top and sides for holding.Available with V shaped face for holding round jobs.One pair of blocks is finished together.

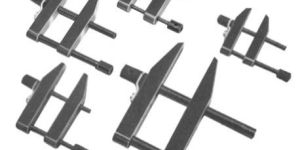

Steel case hardened. Ends of jaws chamfered to facilitate clamping under shoulder or in recess. Clip holds loose jaw in position when clamp screw is released.

Steel case hardened. Ends of jaws chamfered to facilitate clamping under shoulder or in recess. Clip holds loose jaw in position when clamp screw is released.

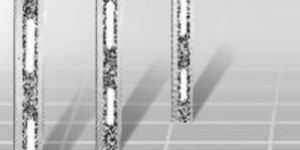

Made from high resistant steel.Contact surface precision ground and lapped.Fully hardened up to 58 Rc up to 300 mm length & above 300 mm length Working Edges are hardened to 58 Rc.SPECIFICATIONS:Cat No. Sizes mm. L W T SH-1104 SE 100 x 15 x 5SH-1106 SE 150 x 20 x 8SH-1112 SE 300 x 35 x 12SH-1120 SE 500 x 50 x 15SH-1132 SE 800 x 80 x 20SH-1140 SE 1000 x 100 x 20

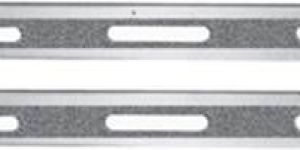

We make sure that our inputs are in conformation with the international quality standards and free from all sorts of impurities in order to offer quality-approved products to the buyers. Due to our superior transit system and vast distribution network, buyers can be rest assured for timely delivery.   Features : Made from high resistant steel. Contact surface precision ground and lapped. Edges are hardened to 58 Rc.(±2) RC

The ‘KUMAUN’ Magnetic Base is also available with a ‘FLEX - O - POST‘ indicator Holder. Short tubular sections obtain complete flexibility with precision ball joints linked by a steel cable. The flexible post can be adjusted to practically any desired position and locked lever at the base of the post. This complete flexibility permits use of the indicator in any awkward hard to reach position which is are impossible to reach by conventional indicator holding devices. A unique Fine Adjustment is provided at the base at desired position.Specifications : L*W*H of Base - 51*45*45mm Flex - O Post Height - 315mm

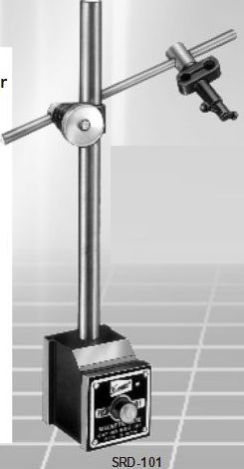

A powerful permanent magnetic type base holds firmly any steel or iron surface horizontally, vertically or up-side down, thus eliminating time spent on clamping indicator to machine. A convenient large diameter push button turns magnetic pull ‘on’ or ‘ off ‘ for quick one hand set up and removal of base. The base and two sides are energized for attachment to flat surfaces and a V slot facilitates gripping on curved surfaces. An improved model with a versatile clamping assembly which can hold any plunger type of dial indicator available in Metric as well as English System and can easily hold any lever type of dial indicators with 6mm, 8 mm i.e, 1 / 4” and 5 / 16 “.Specifications : Height Of Column - 185 mm L* W*H Of Base - 48 * 43 * 49 mm Magnetic Pull - 45 Kg

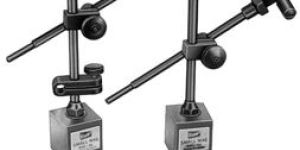

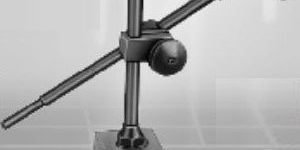

Small bodied square in shape of a magnetic base with a “ V “ which permits use on round or flat surface, can easily be mounted on machine tools orwork surfaces, with greater magnetic pull and quickly released by a simple leverage. Supplied with two rods namely, one for standard dial gauges and dial test indictors and other for standard. Machine shop clamps with a step of 5 / 16 “& 7 / 32 “at the ends.SRD - 96 : Similar to SRD - 95 but it is having Fine Adjustment for rapid setting indicators to desired readings. Special Ball Joint Base SRD - 95 and SRD - 96B Dimensions are same as SRD - 95 and SRD - 96. But the pillar is provided with Bolt and Socket Joint Action.   Specifications : Base - 1.1/ 4” * 1.1 / 4 * 1.5 / 16” Column - 5 /16” Dia* 4” Height Magnetic Pull - 25 kg (50 lbs.)

Small bodied square in shape magnetic base with a “ V “ which permits use on round or flat therefore can easily be mounted on machine tools or work surfaces, with greater magnetic pull and quickly released by a simple leverage Supplied with two rods namely, one for standard dial gauges and dial test indictors and other for standard. Machine shop clamps with a step of 5 / 16 “& 7 / 32 “at the ends.   SRD – 96 Similar to SRD – 95 but it is having Fine Adjustment for rapid setting indicators to desired readings.SPECIAL BALL JOINT BASE: SRD – 95 & SRD – 96B Dimensions are same as SRD – 95 & SRD – 96. But the pillar is provided with Bolt & Socket Joint Action.

Used for Precision measurement, setting of angles, Right angle grinding & light machining. Made from high quality alloy steel. Accuracy for square ness, flatness & parallelism within ± 0.005mm Angular accuracy within ± 5 seconds Centre distance between rollers is between ±0.005mm Hardness - 60 ± 2 Rc & Tempered

Type : Precision Sine Vice

Material : Iron

Thickness : 0-5mm

Length : 0-15mm

Color : Polished

Condition : New

We are identified as one of the commendable names in the market offering SH-455 & SH-456 Hardened V Blocks at affordable prices. Only high quality raw materials have been used for the production of our entire range. We check the raw materials against varied quality parameters before procurement. These hardened vee blocks come with these special inbuilt. Features :‘V’ blocks are hardened and ground to 60+2 HRC Precision ‘V’ Blocks for Tool Room, Inspection Work, Assembly Shop, Marking All sides precision ground, parallel and square ‘V’ groove ground central and parallel 2 sides and base perfect aligned in matched pair Supplied with special clamp for holding job Hold square and round work.

These ‘V' Blocks have two ‘V’ angles of different sizes to take jobs of different measurements. The clamps help the work to be held rigidly to the ‘V’ block. The top ‘V’ and the bottom ‘V’ are parallels with ± 3 micron and its square ness to the end faces and the height variation to the ‘V’ Block in pair is within ± 3 microns.

These ‘V' Blocks have two ‘V’ angles of different sizes to take jobs of different measurements. The clamps help the work to be held rigidly to the ‘V’ block. The top ‘V’ and the bottom ‘V’ are parallels with ± 3 micron and its square ness to the end faces and the height variation to the ‘V’ Block in pair is within ± 3 microns.

These ‘V' Blocks have two ‘V’ angles of different sizes to take jobs of different measurements. The clamps help the work to be held rigidly to the ‘V’ block. The top ‘V’ and the bottom ‘V’ are parallels with ± 3 micron and its square ness to the end faces and the height variation to the ‘V’ Block in pair is within ± 3 microns.
