Sm Biosystems Bhor, Pune, Maharashtra

Size : 1.1/2inch, 1/2inch, 2inch

Material : Carbon Steeel, Metal, PVC, Stainless Steel

Application : Gas Fitting, Water Fitting

Color : Black, Blue, Sky Blue, White

Automatic Grade : Automatic, Manual

Pressure : High Pressure, Low Pressure, Medium Pressure

Number Of Way : 2way

Features : Spring assisted silent closing   Application : The SMB-CK-09 in-line spring assisted NRV is designed to prevent reversal of flow with strict clean conditions. The valve opens whenever the pressure below the plug exceeds the pressure above plug due to spring and higher counter pressure presses the plunger valve against the seat to close the valve.

• Air Filter Regulator • Manual Gear Operators • Valve Positioner • I-P Converter/ Smart Positioner • Quick Exhaust Valve • Air Lock Relay • Speed Control Valve • Fittings & Tubing • Air Reservoir Tank

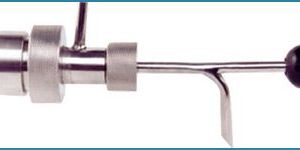

Application KRONETECH is the ideal device for sampling from tanks and pipeline under sterile conditions for physico-chemical or microbiological analysis Benefits • Sterilizable in place with alcohol or steam • ‘O’ring sealing directly against product • Representative sampling, giving repeatable results • Dual purpose, bulk and micro samples (special version) • User friendly On line sampling from the System/Bioreactors/Media is acumbersome procedure, since contamination is a always problem in open sampling method. SM Biosystems has developed a closed loopsampling system with measurable 250/500 ml bottles. The unique advantages are ease of sampling, aseptic sampling, easy to sterilize and measurability.

Aluminum Die Cast powder coated body Port Size- 1/4" & 1/2" Orifice Size- 4mm, 5mm, 6mm, & 7mm Single & dual coil options available LED indication as a standard facility Manual reset/ override as a standard facility Coils - Weatherproof/ Flameproof/ Explosion proof Standard AC & DC coil voltages available Available in 3 way/ 5 way & convertible type (Namur)

Type : Non Return Valve

Material : Brass, Cast Iron, Iron, Mild Steel

Application : Gas Fitting, Oil Fitting

Weight : 10-15kg, 15-20kg

Color : Black, Grey

Condition : New, Used

Type : Double Acting & Single Acting

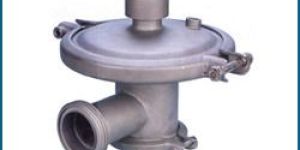

The Aseptic Pressure Modulating Valve is used to maintain constant pressure in the process line. The series is designed to maintain either constant inlet or constant outlet pressure by virtue of regulating air pressure. It can be used in following type of equipment-Milk Pasteurization plants, Back pressure control in separation of hygienic juices, Inlet tangential to the bottom of the valve body resulting in no dead log.

Temperature : 95OºC

Resilient Replaceable Seat Butterfly Valve, Cast Iron Ductile Iron WCB (Wafer & Lug type), Lever Gearbox Pneumatic Electric Actuator, Ductile Iron (Nylon Aroxy coated) CF8 CF8M.

Size : 50-600 mm/ 2"- 24"

Aluminum Die Cast powder coated body Polycarbonate Dome Fully Adjustable spring loaded cams Special PCB to eliminate complex wiring Protection against short circuit 1/2"/ 15 mm size conduit entry Namur mounting as standard Enclosure as per weatherproof to IP65/ IP67 Suitable to withstand temperature (-)20°C  to (+)80°C

Size : 100-150mm, 150-200mm

Type : Knife Edge Gate Valve

Material : Alloy Steel, Carbon Steel, Forged Steel

Application : Gas Fitting, Water Fitting

Weight : 10-15kg, 15-20kg, 20-25kg

Color : Black, Grey, White

Condition : New, Used

Pressure : High, Medium

Feature : Blow-Out-Proof, Corrosion Proof

End Connection : Socket Weld Ends

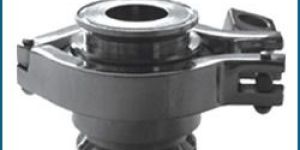

Features : • Fully drainable in Vertical / Horizontal installation. • TC end connections as per ASME BPE standard 3A Standard • Material traceability certificate for components and elastomers    used in check valves (FDA Approved) • External clamps SS304 Cracking pressure from 10 - 20 mbar (on request)

Material : Aluminium, Brass, Carbon Steeel, Cast Iron, Cast Steel, Metal

Color : Blue, Sky Blue, White

Structure : Double Half Shaft, Pinless

Size : 100-150mm, 150-200mm

Type : Diaphragm Valve

Material : Alloy Steel, Carbon Steel, Forged Steel, Stainless Steel

Weight : 10-20kg, 30-40kg

Color : Black, Green, Grey, Orange

End Connection : Butt Weld, Screwed

Application : The Aseptic Pressure Modulating Valve is used to maintain constant pressure in the process line. The series is designed to maintain either constant inlet or constant outlet pressure by virtue of regulating air pressure. It can be used in following type of equipment-Milk Pasteurization plants • Back pressure control in separation of hygienic juices • Filtration and heat exchangers • Brewery plants • Filling systems • Purified water plants • WFI water plants Working Principle : KT - APM is a pneumatically actuated diaphragm valve. This is designed basically in 3 sizes based on the flow requirement. The valve is completely aseptic and has internal/external Pharma finish. The required preset pressure is maintained by alteration of the position of the stem by virtue of air pressure to the diaphragm. Features : • Compact size Easy to clean • Inlet tangential to the bottom of the valve body resulting in no dead log • Welded sheet resulting in only one seal ring and the diaphragm • Special plug design allows very low capacities and high CIP flow • Leak-proof design Technical Specifications : • Contact Parts MOC SS316L contact parts • Operating temperature 95OºC • Operating Pressure 7 bar (g) • Sizes From 25mm to 76mm • Connections SMS IDF, TC and flanged available. • Pneumatically Operated, Modulating type.
