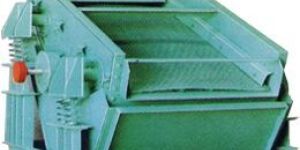

Vibrating Screens
These are widely used in Material Handling Plants where separation of sized material at high efficiency is desired. Advantages include accuracy of sizing and increased capacity. We manufacture Mechanical Type of Vibrating Screen. The most versatile Vibrating Screen is circular motion Vibrating screen from Medium to Coarse sizing and especially used for Coal / Biomass Handling. Based on the applications these are divided into Single deck and Double Decks to get desired output of material. We manufacture screens in the range of 1 TPH (Tons per Hour) to 150 TPH (Tons per Hour) for coal. For rice husk cleaning we manufacture from 5 MTPH (Metric Tons per Hour) to 40 MTPH (Metric Tons per Hour).
...moreScrew Conveyors
Screw conveyors are equipments capable of handling a great variety of materials, which have relatively good flowability. We manufacture screw conveyors which are adaptable and can be used for volume control of material being discharged from bottom of bins, hoppers, bag dumps, and storage piles. Typical Applications are for Ash, Sugar, Coal Dust, Salt etc.

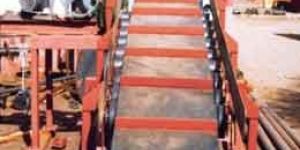

...morefeeders
Belt Feeders Belt Feeders are usually used for granular and small lumped materials. The feature distinguishing Belt Feeders from Ordinary Belt Conveyors is that Belt Feeders extracts the material at the controlled rate by setting the height of the control gate across the skirt board. The feeder has stationary Skirt boards; belt speeds is low (from 0.1 to 0.4 mps), as the material leaves the outlet slowly and forms a comparatively heavy layer on the belt. Screw Feeders Screw Feeder consists of a continuous Screw Rotating in a pipe. The shaft of the screws turns in between two terminal bearings mounted outside the pipe. The special feature of screw feeder is the variable pitch and size of the flight which enables smooth flow and discharge of the material. Reciprocating Feeders Reciprocating Feeder has a horizontal or slightly declined table with stationary side boards. The table is generally supported by stationary rollers or suspended on rods. The table is set in reciprocating motion by an eccentric crank gear. Apron Feeders Apron Feeders are predominantly used for heavy and large lumps. These have overlapping steel pans fitted on double strand chain. The flow control is by adjusting the speed with the use of variable speed drive.

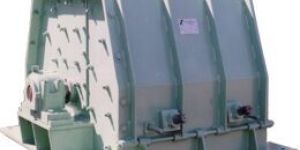

...moreIndustrial Crushers
Crushers are used in material Handling System for size reduction. The Crushers are divided into various types as per the application and stage of size reduction Types of Crushers are used in Material Handling Systems Impact Type Hammer Mill Ring Granulator Single Roll Crusher Double Roll Crusher
Country of Origin : India
Machine Structure : Horizontal
Specialities : Rust Proof, Long Life, High Performance
...moreChain Conveyors
Chain Conveyor is conveying equipment comprising of various components like conveying chain running on steel sprockets complete with shafts supported from bearings mounted on a steel structure. We manufacture following types of chain conveyors Redler Chain Conveyor Drag Chain Conveyor Slat Chain Conveyor Pan Conveyor Typical Applications are for Husk, Coal, Biomass, Limestone, Ash etc.

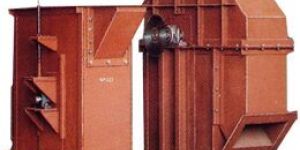

...moreBucket Elevator
Bucket Elevator finds an extensive application in industry of Material Handling whenever space constraint exists. Bucket Elevator handles wide range of materials depending upon the characteristics of the material and accordingly they are categorized into three types Centrifugal Discharge Belt/Chain Elevators This is vertical in orientation and handles free flowing fine or small lump material. Continuous Discharge This is often used for handling larger lumps and material that maybe difficult to handle by Centrifugal Discharge Elevators. The slow speed and gentle method of loading and discharging minimize breakage of fragile material. Positive Discharge Elevators This is similar to Centrifugal discharge elevator except that space between buckets is very less Bucket speed is slower and this type is specially suited to handle light, aerated, dusty and sticky materials
...moreBelt Conveyors
Belt conveyors have attained a dominant position in transporting bulk materials due to many inherent advantages such as their economy, safety of operation, reliability and versatility. Belt Conveyors can be arranged to follow an infinite number of profiles or paths of travel. Among common are Horizontal, inclined or Declining Conveyors with Troughed or Flat Belt type.
...moreEngineering Goods
Engineering Equipment
