Solid Fuel Fired Thermic Fluid Heaters Dealers in Pune

• Material: Alloy Steel
• Certification: CE Certified
• Application: Domestic, Industrial, Machinery
• Weight: 100-1000kg
• Color: Metallic
• Automatic Grade: Automatic
• Motor Power: 1-3Hp
• Feature: Double Chamber, Easy Installation
• Temperature: 100-150°C, 150-200°C

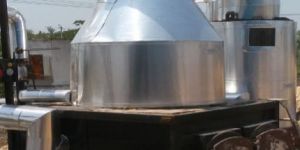

Solid fuel fired thermic fluid heater has two sets of coils. One is provided above the furnace to take advantage of radiant heat exchange and other set is used to carry out convective heat transfer. The thermic fluid is recirculated from process in closed loop with the help of the circulation pump. Product Range : From 1,00,000 kcal/Hr. to 50,00,000 kcal/Hr. Temperature upto  300oC. Fuel - Coal, wood, lignite, briquette, agro waste such as bagasse, husk. Firing - Manual as well as automatic with bubbling bed or fluidised bed combustion. Salient Features : Excess Air optimisation - Radiant Heat Exchange is carried out above the furnace  Hence, less excess air is required and ultimately increase efficiency. Air preheating - Combustion air from FD fan passes through air preheater that absorbs the waste heat in the fuel gases. It ultimately results in increase in efficiency. Balanced Draught System - It means reduction of infiltration of unwanted air though fire gates of minimum level. It results into maximum heat recovery from air preheater and assures greater efficiency.

• Material: Mild Steel
• Country of Origin: Made in India
• Usage/Application: Industrial
• Thermal Oil Capacity: 1lac kcal to 2 cr kcal

delta - solid fuel fired thermic fluid heaters solid fuel fired thermic fluid heaters are available in capacities from 1,00,000 kcals/hr up to 40,00,000 kcals/hr. The vertical design with integral furnace assures rated output on any solid fuel like coal, wood & bagasse. The well planned design of the delta ensures thermal expansion with low stress. the basic advantages of the delta arc, low operating cost reliable operation safety against low thermic fluid flow precise thermic fluid temperature control expansion cum dearator tank the expansion chamber cum deaerator tank is designed to ensure long fluid life. The combined tank has a unique design & offers significant protection against oxidation of thermic fluid. Tangenitial thermic fluid entry in the deaerator tank ensures good deaeration.
