Techno Spark Sahakar Nagar, Pune, Maharashtra

Vertical travel of spindle 35 mm. Model-75 SS Overall length 320 mm. Overall width 185 mm . Overall height 305 mm. Min. shaft dia. 25 mm. Min. Shaft dia. for end mounting 45 mm. Max. Shaft dia. 250 mm. Spindle hole 16 mm. Flat clamp for. shaft dia. less than 115 mm.

Finishing : Powder Coated

Machine Weight : 26.5kg

Packaging Type : Wooden Box, Metal Sheet Box

Usage : Steel Industry, Paper Plant, Sugar Ind. Cement Plant, Chemical Ind., Textile Ind. Heavy Rollers Mfg.

Specialities : Long Life, High Performance, Easy To Operate

Type : Portable Milling

Brand Name : Techno Spark

Material : Cast Iron

Shape : Rectangular

Color : Gray

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : Semi Automatic

Is It Variable Speed : Yes

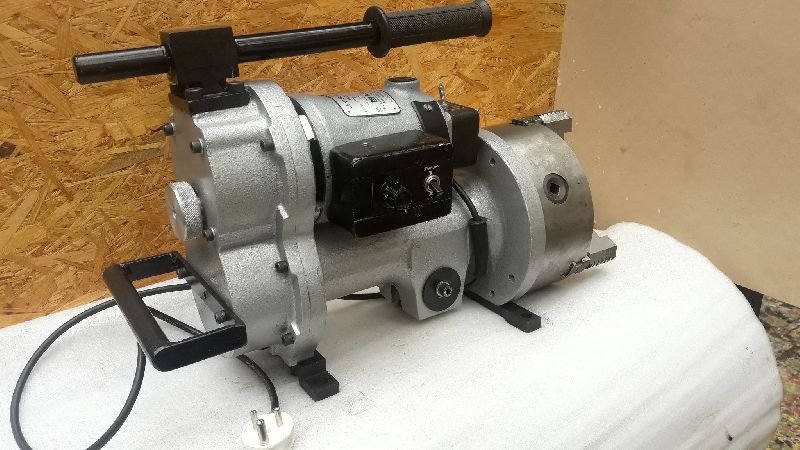

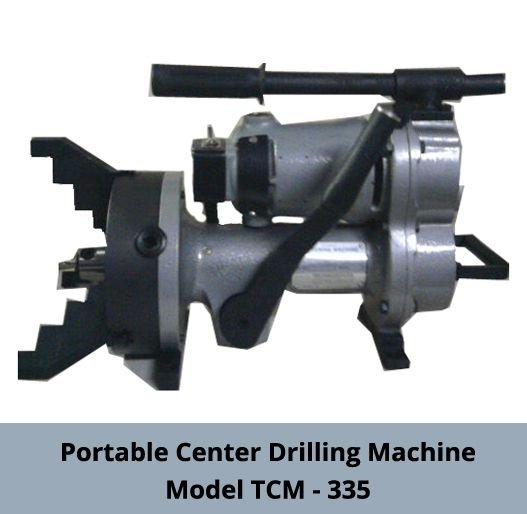

Saw cut pieces can now reach shop floor duly centered The Newly Invented Techno spark Portable Center Drilling Machine Model TCM 335 drills center holes in 80 to 480 mm Ø round, or hex stocks irrespective of its length, in less than 3 minutes. The machine is attached to the face of the job & finds the true center by itself. No operational skill is involved in its working. The unit is designed for center drilling on large shafts. Can be used for small jobs when kept stationery at one place. The stopper provided on the lever controls the center depth to the accuracy of upto 0.1 mm. Special centre drills to suit 16 Ø mm spindle bore are available on request at extra cost. Weight             28.5 Kgs. Overall Height   325 mm. Overall Width    240 mm. Overall Length   460 mm. H.P.                  1.5 Current             5.5 Amps. Voltage             230 V or 110 V on request R.P.M                250 to 1000 rpm (Stepless Variable) Spindle Stroke   53 mm. Max. Spindle Bore      16 mm. Dia Clamping range  Std. Reverse jaw 80 Ø to 300 Ø mm. Extended Reverse jaw 300 Ø to 600 mm. (Available at extra cost)

Type : Portable Drilling Machine

Weight : 28.5kgs

Color : Grey

Voltage : 230 V Or 110 V On Request

Condition : New

Automatic Grade : Semi Automatic

Driven Type : Electric

Warrenty : 1 Year

Country of Origin : India

Brand Name : Techno Spark

Application : For Center Drilling

Voltage : 230 V Or 110 V On Request

Frequency : Current 5.5 Amps.

Rated Power : H.P. 1.5

After-Sales Service Provided : By Techno Spark

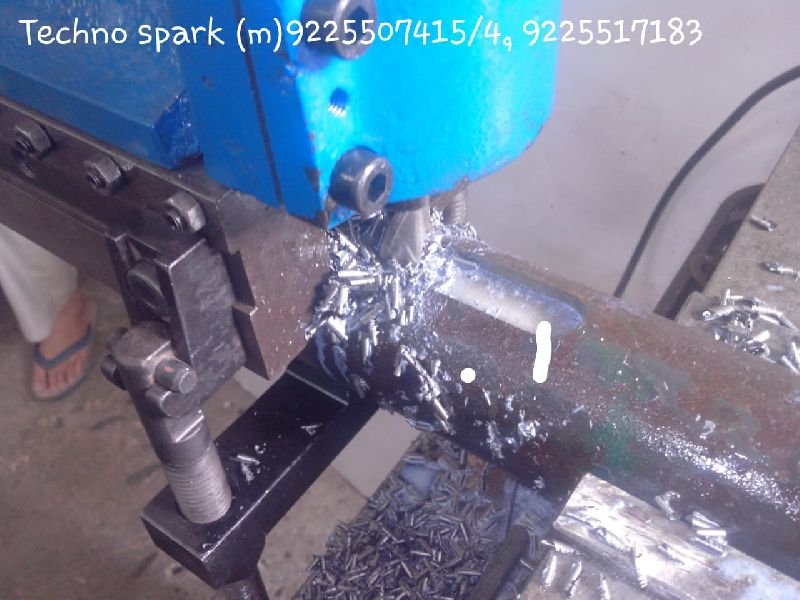

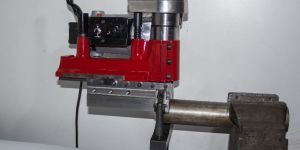

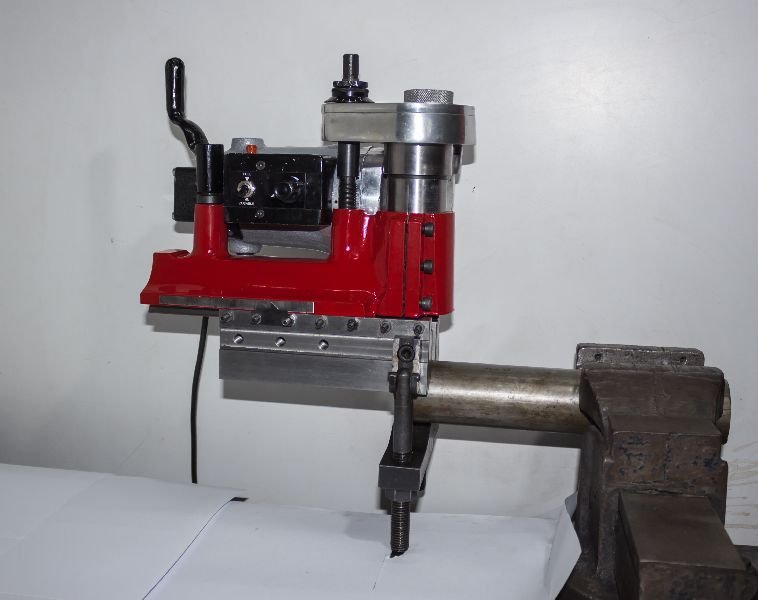

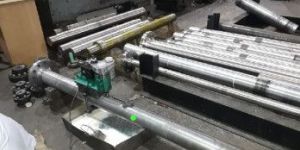

Portable keyway milling machine (available in 2 models) needs only 38 mm space on the end of shaft to cut new keyway, without dismantling the shaft from assembly. Cutting time for 25 mm wide, 12.5 mm deep & 150 mm long keyway is less than 15 minutes. Mc makes a keyway on a ball mill shaft, while the shaft is in assembly. Sealed lubrication permits operation at any position of the machine. With the "v" type-mounting base, the keyway cutter will self-center onto an existing shaft, once the milling machine tool is clamped in place. The keyway cutter is capable of cutting keyways. Specifications slide travel 150mm vertical travel spindle 35mm over length 320 mm over all width 185mm overall height 305 mm mini.shaft dia. 25mm min.shaft die for end mounting 40mm max.shatdia 250 mm spindle hole 16 mm weight 26.6kg h.p.(single phase) 1.5 current 5.5amps voltage 230v or 110v 0n request speed 350 to 750 rpm stepless variable

Country of Origin : India

Type : Portable Keyway Milling Machine

Weight : Approx. 28-30 kg

Voltage : 220V

Condition : New

Automatic Grade : Semi Automatic, Manual

Warrenty : 1 Year

Color : Red

Driven Type : Electric

Brand Name : Techno Spark

Warranty : 1 r.

After-Sales Service Provided : Techno Spark

Sr. No. dia length flute shank + shank 1 6mm 10ø 20 + 45 2 8mm 10ø 20 + 45 3 10mm 10ø 30 + 50 4 12mm 16ø 30 + 50 5 14mm 16ø 30 + 50 6 16mm 16ø 30 + 50 7 18mm 16ø 30 + 50 8 20mm 16ø 30 + 50 9 22mm 16ø 30 + 50 10 22mm 16ø 30 + 50 11 28mm 16ø 30 + 50 12 30mm 16ø 30 + 50 13 32mm 16ø 30 + 50 14 36mm 16ø 30 + 50 15 40mm 16ø 30 + 50
