Temperature Gauges Dealers in Pune

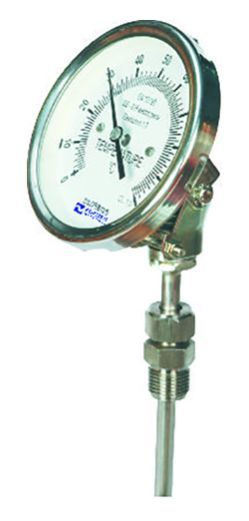

The Gas Filled Dial Thermometer consists of a stem, capillary, and bourdon tube in a case. These parts are connected to form a unit. The complete measuring system is filled with an inert gas such as nitrogen, as standard,under pressure. A temperature change causes the internal pressure and volume in the stem to change. The deflection of the bourdon tube thus caused is transmitted to the pointer by a movement. A bimetallic element is fitted in between the movement and bourdon tube to compensate for fluctuations of ambient temperature at the case.

With our know-how in the industry, we are engaged in offering the best range of Temperature Gauge. Being an excellent Manufacturer, Supplier and Exporter, we strive to live up to our reputation. It is cherished for its precise design and robustness. Its distinction is tallied to the quality as prescribed by industrial standards. We make it available in safe packaging to deliver it safely for a long time.More about Temperature Gauge : The ST Model themo consist of the stem, capillary and bourdon tube in a case. These parts are connected to form a unit. The complete measuring system is filled with an inert gas as standard or mercury as an option under pressure. A temperature change causes the internal pressure in the stem to change. The deflection of the bourdon tube thus caused is transmitted to the pointer by a movement. A bimetallic element is fitted in between the moment and bourdon tube to compensate for fluctuations of ambient temperature at the case.

• Certification: ISI Certified
• Brand Name: Pioneer
• Application: Temperature Measurement
• Body Material: SS/MS

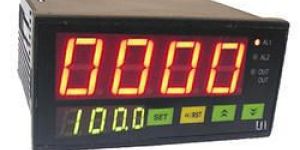

Digital Temperature Gauges

• Sensor Type : RTD, Pt-100
• Sensor Length : As per requirements
• Range : 0 to 400oC.
• Display : 8 x 1 LCD
• Accuracy : ± 0.5% F. S.
• Process Pressure : 100 Bar max
• Temperature Range : 100oC max
• Display Lock : Display can be made ON for 20 sec & then it will get OFF
• Power Supply : 5 V, Rechargeable Battery Operated
• Back up time : 1500 hrs continuous operation
• Response time : < 500 msec
• Temperature Coefficient : ± 0.01% peroC
• Enclosure : SS
• Dimensions : 100 mm (Diameter) x 80 mm (Depth)
• Mounting : Direct Line mount
• Process Connector : ½’ NPT (M)
• Weight : 1 kg
• Operating Conditions : Temperature 0 to 55oC / Humidity 5 to 95% non condensing

• Material: Stainless Steel
• Accuracy: +/- 2%
• Size: 63mm, 100mm & 150mm
• Feature: Perfect readings, High reliability, Excellent functioning
• Measuring Range: 0 to 100 degree celsius
• Display: Analog
• Mounting: Bottom Direct and Back Direct

With exceptional transportation facilities, our diligent team delivers the product basket in the committed time span. We have developed the entire in-house unit wherein we keep our raw material to fulfill variegated requirements of the buyers. Also, we make sure that the material is sourced from the reliable places only.

• Material: PVC
• Current Rating: 15 AMP
• Rated Voltage: 230 V
• Brand: ENSOFA
• Pin Type: 3 Pin
• Installation Area: Hospitals, Hotels, Restaurants, Residential Apartments, Bungalows, Villas, Etc.

• Approx Price: Rs 1,000 / Piece

As we have the fastest transit facility, we are capable of delivering the orders within the postulated time. Being a quality driven firm, we source the raw material from the certified vendors only who assure us for the quality and reliability of the material.   Features Durable Rugged Industry proven designs

These can be cost effective and ideal for monitoring the temperature. Display shut-off facility is provided so that display can be made 'ON' only if required through push button. Thus it saves the battery power and results in long lasting battery operation.

Specifications:- Input :- RTD (Pt-100) & Thermocouple ‘K’ (Cr-al). Range :-As per your requirement. Indication :- 3½ Digit Seven Segment LCD ½”size. Accuracy of Indication :- ±0.5% of FSD ± 1digit Operating Temperature :- 0ºc to 50ºc Supply :- 9VDC (Battery) Probe Dia. :- 6.35mm, 8mm, and 9.5mm or as per your application.

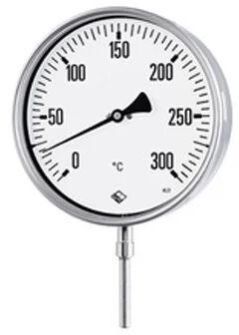

• Size: 100, 150, 250 MM
• Accuracy: 1.0 %
• Mounting: Bottom Back
• Protection Class: IP65
• Measuring Range: -200....Upto 800 Deg C
• Temperature Range: -80...800 Deg C
• Brand: Baumer
• Model: CA Series

Having Temperature Gauges ensures maximum efficiency, longer equipment life and user safety, and our products serve the same. Temperature Gauges manufactured by us are of best quality and manufactured using high grade material. We are one of the best known and trusted manufacturers, exporters and suppliers of Temperature Gauges all over the country. These are available at affordable market prices.

Smart Port is the immersion type temperature measurement equipment series designed for molten metals. It consist of a special electronic hardware and SMART LOGIC software which automatically corrects errors introduced due to derating/ageing effect of electronic components, in turn ensures long-term consistency in accuracy of measurement. Plateau Detection Technique is used for accurate molten metal temperature measurement. The microprocessor controlled electronics is housed in sturdy enclosure to suit foundry/steel plant conditions. Separate models are available for ferrous and nonferrous molten metal temperature measurement.

• Material: Stainless Steel
• Usage/Application: Industrial
• Model Name/Number: CA/CA
• Brand: Baumer
• Model: CB / CA-Series
• Temperature Range: -80 to 500 deg C
• Dial Size: 40, 50, 63, 80, 100, 150 mm
• Steam Length: 30 to 600 mm
• Range : -50.....Upto 500 Deg C
• Process Connection: 1/2" BSP (M) OR. Pl. Specify
• Accuracy class: 1 %

Selection of a suitable temperature sensor is dependednt on the measuring task. The suitable temperature sensor should be selected according to the following criteria: Measuring range, Accuracy, Adjustment time, Resistance and Design.NTC, PT 100, Thermocouple are few types of temperature sensors used. Let’s get acquainted with basic terms in temperature measuring technology:Temperature measurements whether in refrigerated store rooms and freezers, laboratories or cleanrooms, during storage and transport, in HVAC applications or industry use; there is a wide range of temperature measuring instruments for every application.

MODEL 56 Plunger Dial Gauge Range 0.8mm to 30mm / 0.08" to 1", Range 0.8mm/0.08inch, One revolution dial gauge. Shock proof, Hardened stem for free clamping, Rigid brass case.   FEATURES Specification: IS, DIN, ANSI & JIS Every gauge carries a calibration certification giving actual values Hardened stem for trouble free clamping Spindle made of stainless steel Fitted with tungsten carbide ball anvil Rigid brass case for increased rigidity Strong and smooth metal bezel Supplied with tolerance pointers Aesthetically appealing protective top cap in black color Special dial Gauges for OEMs also manufactured on request Complete spares and after sales service available 0.001mm x 1mm dial gauge fitted with 8 jewels and conforms to JIS B-7503

• Size: Multisizes
• Type: Temperature Meter
• Material: Aluminum, Brass, Cast Iron, Copper, Plastic, Stainless Steel
• Color: Brown, Green, Grey, Maroon, Red, White, Yellow
• Feature: Accuracy, Lorawan Compatible, Multi Jet, Spiral Water Meter
• Voltage: 110V, 220V, 380V, 440V
• Application: Industrial, Residential
• Operating Temperature: 10-50D/C, 50-100D/C
• Automatic Grade: Automatic, Manual, Semi, Semi Automatic
• Warrenty: 1 Year, 2 Years
