Test Rig Dealers in Pune

Typically the most efficient way to get high production volumes and to produce parts at a high speed is to use a rotary or linear indexing machine. By performing simultaneous actions on a number of parts the cycle time is reduced. Whether it is a rotary indexing dial or a linear power and free conveyor, RND Automation can design and build a machine that allows you to assemble complex parts at speeds of up to 120 parts per minute and in some cases even faster. By integrating inspection and intermediate reject stations, RND can prevent faulty parts from having value added work done to them, removing them from the machine after the failed assembly step. Part and reject tracking can also be designed into the machine to allow you to ensure quality.

• Driven Type: Electric
• Motor Power: 10hp

C-Link manufactures state of the art testing machines. These testing machines are controlled using PLCs & CNC controllers. The data from the testing machines can be stored on servers for further analysis and decision making.

• Voltage: 220V

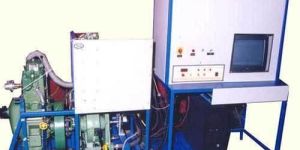

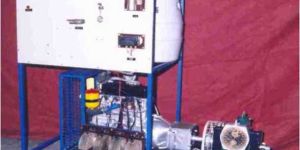

• Study of performance of internal combustion engines & its calculation is important feature of this trainer. System is having unique feature of calculating all efficiency of internal combustion engine: One Cylinder Four Stroke Diesel Engine 5 H.P. (Approx.) at 1500RPM
• Rope brake Dynamometer: Calorimeter- Shell & Tube type heat exchanger will be used.
• Blue: MS Fram

Study of performance of internal combustion engines & its calculation is important feature of this trainer. System is having unique feature of calculating all efficiency of internal combustion engine including heat balance sheet. The Engine & Dynamometer is mounted on base structure. SPTE have design the system in such faction that easily operate; demonstrated & requisite experimentation can be performed. System has facility of measuring Engine brake load, speed, consumption of air, consumption of fuel, temperature at different locations, mass flow of water.

SL90 Cylinder Head Inlet Exhaust Valve Leakage Testing Machine with Parag Unit for Kirloskar Oil Engines Ltd. Cylinder Head Jacket Leakage Testing Unit for Cummins 4R 810 Cylinder Head Water Jacket & Oil Passage Testing Machine with ATEQ Unit for Kirloskar Oil Engines Ltd.

The Air spring validation test rigs designed and Manufactured by JKS Tech .this  rig devalued according to RDSO standard which offer the validation of Railway air springs. Our R&D team research with world standards according to RDSO requirement and designed the same for various test can conduct on this machine. This machine offer the precise data collection of the Lateral shear test, vertical shear test, lateral endurance, and vertical endurance. We also offering different types of air spring leak test Rigs, burst pressure test rigs, railway bumper test Rigs also.

Having experience in the field of Engine testing & various types of dynamometers, Triotech engineering is into design & development of Eddy current & DC dynamometers. 10kW @ 6000 rpm & 440 kW @ 4000 rpm Eddy current dynamometers are produced & 150 kW & 260 kW capacity machines are under development. DC dynamometers of 37 kW & 30 kW are developed & supplied.

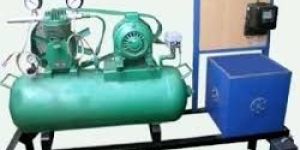

This is an invaluable aid in the effective understanding of the performance characteristics of a centrifugal air compressor. The compressor is run using an AC motor. The system has indicators for pressure, temperature and airflow rate. Optionally, it has a facility to vary the speed of the motor to get various performance parameters for better understanding.

We are amongst the reputed Manufacturer & Exporter of Multi Cylinder Four Stroke Petrol Engine Test Rig  for Thermal Engineering Lab for Educational Training from India. Our competent professionals make use of high-grade materials and the latest technology for fabricating the Petrol Engine Test Rig. We offer the Petrol Engine Test Rig in a number of options and can also customize according to customer requirement. We are also manufacturing complete range of Engineering Educational Equipment and all Fluid Mechanics Lab, Hydraulics Lab, Structrual Lab, Civil Lab, Concrete Testing Lab, Soil Testing Lab, Transportation Lab, Experimental Stress Analysis Lab, Thermal Engineering Lab, Thermodynmaics Lab, Vibration Lab, Refridgeration and Air Conditioning Lab, Theory of Machines Lab, Tribology Lab, Heat Transfer Lab, Control Engineering Lab, Load Frame, Hydraulic Machinerys, Hydraulic Bench, Tilting Flume, Wind Tunnel, Strength of Material Lab, Material Science Lab equipments etc.

• Type: Test Rig
• Weight: 100-400kg, 400-600kg, 600-800kgm, 800-1000kg
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Application: Industrial Use
• Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Driven Type: Electric, Hydraulic
• Motor Power: 10hp, 2hp, 4hp, 6hp, 8hp
• Automation Grade: Automatic, Fully Automatic, Manual, Semi Automatic

The heat pump test rig is a self –contained unit. All the components are mounted such that its operation and working can be easily understood. The required controls for temperature, pressure, and overload are provided. It uses a hermetically sealed compressor, heat rejection chamber, heat absorption chamber, and apparatus to measure the heat gain and heat loss.   Specifications subject to change without any notification.   List Of Experiments: TO EVALUATE GROSS HEAT REJCECTION OF THE HEAT PUMP. TO CALCULATE ACTUAL & THEERORETICAL C.O.P. OF THE SYSTEM. TO PLOT SYSTEM PERFORMANCE ON P-H CHART.   Rating conditions * : Ambient temperature= 35o C, atmospheric pressure = 1.01 bar, suction pressure= 35 psig, discharge pressure= 180 psig, evaporation temperature=7.7o C, discharge temperature=55o C.

• Model Name/Number: RAC-11
• Type Of Testing Machines: Cooling Tower
• Packaging Type: Wooden Box
• Display Type: Digital
• Load Capacity: 2KW

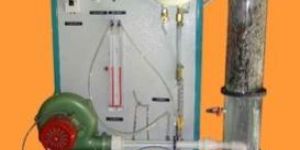

• Type: Water Cooling Tower Test Rig
• centrifugal blower: 0.25 H.P
• Features: Less power consumption, Require less maintenance, Sturdy construction
• Weight: 60 Kg. (Approx.)

• features: HT Coil be Checked Directly without CDI. C.D.I., HT / Pick up coil, Charging coil without removing form the magneto of all scooters, Motorcycles & Auto Riksaws can be tested. Spark Plug can be Checked.
• Hero Honda: CD-100, /SS & Splendor.
• Kinetic Honda: DX and Marval.

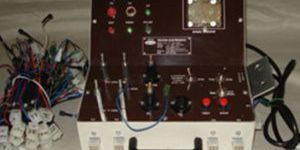

Empowered with an adept professionals, we provide an extensive array of Tekson Auto Parts Test Rigs – CDI, which can be availed by clients in line with their economic convenience. This jig is widely used by the clients for testing AC (magneto) and DC ignition. Owing to its optimum performance and easy operation, our range is widely used in bajaj super, chetak cub, M-80 (old and new), auto-rickshaw (old and new, residential and commercial), bajaj 4S, KB-100, KB-125, bajaj caliber, bravo and many others. TK 207 M : For Bajaj TVS Suzuki, Kinetic, Honda, LML Hero Honda, Escorts, Yamaha. TK 206 M : For all Bajaj Scooters Motor Cycles & Rickshaws Approved by Bajaj Auto Ltd.

• Applications: Industrial, Commercial
• Weight: 40 Kg. (Approx.)
• Capacity: 40 to 400 LPH
• Voltage: 230 V AC, 6 Amp supply

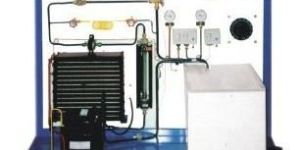

• Rota Meter: For measuring flow rate of liquid refrigerant.
• Space Required: 1 mtr x 0.6 mtr

Test Rigs Machines For Assemblies And Products Centrifuge Test Machines For Acceleration Up To 5000 G Centrifuge For Biochemistry Laboratories. Drop Testing Machine To Check The Packaging Strength. Pull Of Test Machine To Test Adhesion Strength High Speed Spin Testing Machine For Speed Up To 60,000 RPM For Performance Testing Of Products. Endurance Test Rig For Fatigue Testing Of Automobile Components.

• Feature: Accurate value display
• Used in: Laboratories
• Power Source: Electric
• Body Material: Metal

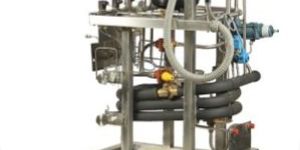

We manufacture life test rigs that evaluate performance of the hermetic compressors under varying load conditions.   Features: • In-house electrical panel and data acquisition system design with Yokogawa / NI DAQ systems and LabView DAQ programs for total automation.• Multi refrigerant capabilities.   Specification: • Capacities ranging from 0.15 kW to 85 kW.• Option of automatic or Semi-automatic control.• Total compliance with applicable ASHRAE / ISO / JIS Standards.

• Brand Name: Sanika
• Material: Mild Steel
• Voltage: 220-380 V
• Number Of Phases: Three Phase, Single Phase

This is complete system to test the production of washer pump of an automobile. The salient features of the system are as follows, The system is based on PLC. Runs in manual & auto mode. It measures the pressure of the water delivered by the pump & current drawn at different loads on the pump. The user can program the pass / fail criteria & the system will prompt the user whether the job under test has passed or failed.
