Three Piece Ball Valve Dealers in Pune

We are offering High Performance Three Piece Ball Valves. Product Feature Extra High Cycle Life Provided by Spherical Segment Stem Split Body Design Facilitates Inspection and Repair. Blow-Out Proof Stem Anit-Static Device Three-Piece Swing Out Design for In-Line Maintenance ISO 5211 Mounting Dimension for Easy Automation Valve Port in "L" Port Type. Air Cushioned Handle Sleeve for Confortable Manual Operation.

Design Standard: IS 9890-1981?Pressure Testing: BS 6755 Part I/API 598/IS 6157-1981Flange Dimensions: ANSI B 16.5Face to Face: ANSI B 16.10./IS 9884-1981 Available in CS Body Model: Carbon Steel Flanged Ball Valve(FB)(Three Piece Design) Part Number: 1312 to 1315 Specifications DetailsNo.,Name of the OR component,Quantity,Material of OR construction1,Body,1,Carbon Steel2,Flanged End,2,Carbon Steel3,Ball,1,AISI 304 / CF84,Body Gasket,2,P.T.F.E5,Seat,2,P.T.F.E6,Body Stud,4/6,Carbon Steel7,Body Nut,8/12,Carbon Steel8,Stem,1,AISI 3049,Stem Seat,1,P.T.F.E10,Lever Stop Plate,1,Carbon Steel11,Gland Nut,1,Carbon Steel12,Gland Packing,1,P.T.F.E13,Stop Pin,1,Carbon Steel14,Lever,1,Carbon Steel15,Lever Nut,1,Carbon Steel16,Sleeve,1,P.V.C17,Gland,1,Carbon Steel DetailsSizes,Sizes,A,B,CØ,D,E,F,GØ1,25,127,11.5,25.4,63,82,150,1081½,40,165,14.5,37.5,74,93,175,1272,50,178,15,50,88,110,225,152.43,80,203,19,75.4,109,132,325,190.54,100,229,24,99.5,141,162,400,229 Pressure TableClass,Test,Medium,Min OR (PSI),Min OR (BAR)150,Shell,Hydrostatic,440,31,Seat,Hydrostatic,300,21,Shell,Air,85,6

We are offering High Performance Three Piece Ball Valves. Product feature extra high cycle life provided by spherical segment stem split body design facilitates inspection and repair. Blow-out proof stem anit-static device three-piece swing out design for in-line maintenance iso 5211 mounting dimension for easy automation valve port in "l" port type. Air cushioned handle sleeve for confortable manual operation.

• Size: 25mm to 300mm
• Type: 3 Way Ball Valve
• Material: Carbon Steel, Stainless Steel
• Certification: ISI Certified, ISO 9001:2008 Certified
• Application: Air Use, Gas, Liquid
• Weight: 10-15kg, 15-20kg, 20-25kg, 25-30kg, 5-10kg
• Color: IPL Std
• Condition: New
• Pressure: Low, Medium
• Feature: Durable
• End Connection: Flanged
• Number Of Way: 3
• Pressure Rating: # 150 / # 300
• Sizes: 1' to 12"

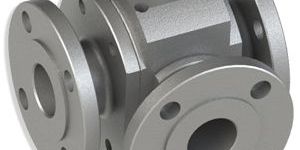

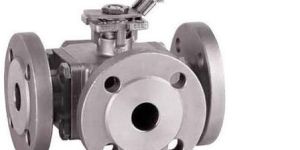

The SANKEY Series 1530L&T- is a versatile large size multi-port ball valve. It can be configured as a three-way valve with "L" or "T" ports. It consists of a heavy-duty centre section with bolted-on flanged ends for Class 150 flanges, Class 300 Flanges. All body gaskets are Teflon. The valve features four seats for equal seat loading, and ball to prevent excessive seat loading and reduce side loading on the stem. It also features a unique live-loaded cup-and-cone lower stem sealthrust bearing that separates the bearing and sealing functions, as well as a multiple upper stem seal.

• Sizes: 15mm to 150mm
• Design: 3 Piece Socket Weld/NPT/ BSPT Ends & Flanged Ends.

Audco 3 piece Ball Valve (Series 44/459) Highlights Body Design: 3 Piece Socket Weld/NPT/ BSPT Ends & Flanged Ends. Bore: Reduced Bore & Full Bore. Sizes:15mm to 150mm

Three Piece Ball Valves, Ball Valves, Valve Accessories, Custom Valves

Carbon Steel Three Piece Design Flanged Ball Valve, Gas Safety Device
