Thyristor Module Dealers in Pune

• Country of Origin: India
• Application: Electrical Use for capacitor switching
• Weight: 8 Kg - 9 Kg
• Voltage: 220V
• Condition: New
• Operating Temperature: -25 +85deg C
• Frequency: 50Hz
• Humidity: 80%

• Packaging Type: Box
• Current Rating: 50 TO 250A
• Voltage: 690VAC
• Operating Temperature: 50d
• Aux Supply Voltage: 24VDC @ 100mA max
• Gate Current Max: 350 mA
• Model: TPSS-12.5-440-D
• No Of Outputs: (2 x g1k1+g2k2) - 2 independent Back to Back SCRs can be triggered
• Switching time per min: 100mS (5 AC cycles @ 50Hz line frequency)

A thyristor is one of the several controllable semi conductor devices that can act either like a switch, rectifier or as a voltage regulator. The thyristor is a solid-state analogue of the thyratron vacuum tube. The name ‘thyristor’ is a combination of two words – the thyratron and the transistor. A thyristor functions a little like a transistor. It consists of three electrodes: the gate, the anode and the cathode. The gate acts as the controlling electrode. When a small current flows into the gate, it allows a larger current to flow from the anode to the cathode. A thyristor can be switched from a blocking state (high voltage, low current) to a conducting state (low voltage, high current) by a suitable gate pulse. Forward conduction is blocked until an external positive pulse is applied to the gate terminal. A thyristor cannot be turned off from the gate.

• \r\n System Operating Voltage\r\n: \r\n 380V to 660V AC available.\r\n
• \r\n Frequency\r\n: \r\n 50Hz/60Hz\r\n
• Stage KVAr: Available from 5KVAr and 200KVAr.
• Control Supply: 12V or 24V DC.
• LED Indication: Thyristor ON (R ph ON, B ph ON), +12V LED, +5V LED, Temp OK LED.
• Mounting Position: Vertical, Minimum 100mm distance upwards and downwards.
• Assembling: Direct mounlingon mounting plate.
• Cooling: Forced cooling
• Protection: Over temperature, dv/dt protection

• Application: Industrial
• Material: Metal
• Durability: Long Life
• Surface Finishing: Polished
• Resistivity: Rust Resistant
• Drive Type: Electric

We offer thyristor controlled power modules. Our clients can avail from us shreetech instrumentation that provide customized thyristor-controlled power modules for 1-ph and 3-ph resistive load control. These thyristors offer optimum protection against ‘over load & short circuit' and ‘heater break monitor'. We ensure that these modules are in open execution for adopting in the main control panel. We are on of the leading Supplier of Thyristor Heater Controller with following features:. Thyristor heater power controller for 1& 3 phase, phase angle controller Rating 200 amps. Input2. Input 230v. +/- 10%, 50 hz Output 0 – 95% Input control 4-20 ma. Signal by external process. 0-10 v. Dc signal by external process. Controller details out put voltage proportional to input control signal by phase angle control of thyristors.

We are supplier and stockist of Sanrex Power modules, SCR Thyristor and Diodes. Available series:- IGBT modules - FCA series IPM modules Darlington modules - SQD QF QCA QCB SCR modules - TG PK SG Rectifier modules DG DFA DF Diode modules - KD DD FRD FDS DCA.

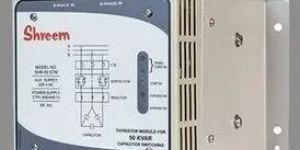

• Brand Name: Shreem
• Country of Origin: Made in India
• Maximum Operating Temperature: -10 DegreeC to 50 DegreeC
• Mounting Type: Panel Mount
• Package Type: Box packaging
• Repetitive Peak Reverse Voltage: 1800V

• Frequency: 50Hz/60Hz
• Features: Inrush current protected, No noise emission during switching operations, Automatic thermal cut off, Compact Module, easy for connections, User friendly operation, Long operation life.
• System Operating Voltage: 380V to 660V AC available.
• Stage KVAr: Available from 5KVAr and 200KVAr
• Control Supply: 12V or 24V DC
• LED Indication: Thyristor ON (R ph ON, B ph ON), +12V LED, +5V LED, Temp OK LED
• Mounting Position: Vertical, minimum 100mm distance upwards and downwards
• Assembling: Direct mounting on mounting plate
• Cooling: Forced cooling
• Protection: Over temperature, dv/dt protection

thyristor diode modules, Igbt Module, HRC Fuse, semiconductor components

Half Bridge Thyristor Module-PWB, TP50 Diode, press fit diodes
