Transmitter Device Dealers in Chakan, Pune

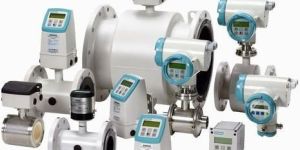

We are highly reputed firm offering wide spectrum 0f electromagnetic flow transmitter mag5000600. With the aim of serving clients, a highly efficient and light weight products, we manufactures these by using latest tools and techniques. We design these products in various specifications for their multiple use in evaluating the signals from flow sensors.

SUCO Silicon-on-Sapphire (SOS) pressure transmitters/transducers – hot new development offering satisfying high temperature operation, high accuracy and repeatability, and long term stability requirements in off highway equipment. The ability to operate at high temperatures, chemical inertness, and virtual absence of hysteresis make the strain gauges ideal for use in pressure sensors. However, pressure transducers used in hydraulic systems of off-highway machines must tolerate punishing conditions, such as severe pressure spikes caused by valves shifting, prolonged exposure to continual pulsation, broad temperature ranges, heavy shock, and vibration. Pressure spikes can be especially harmful or even destroy a pressure transducer. Prolonged exposure to continual pulsation can cause fatigue failure of the pressure transducer and influence long term stability and accuracy. The benefits of SOS sensor technology would make them ideal for off-highway equipment. However, price sensitivity has k ept them from penetrating the high-volume off-highway equipment industry. Hence SUCO has introduce its Type 07XX pressure transducer based on silicon-on-sapphire technology. Key advantages of the transducer include: Silicon-on-Sapphire technology Body and wetted parts made of stainless steel / titanium No seals and thus low leakeage rate even with difficult gases High overpressure safety especially suitable for use in hydraulic applications Long working life even with high rates of pressure cycles High accuracy and reliability for secure process monitoring Very small size for compact subassemblies Technical data: Type: 0705, 0710, 0720 Output signal: 0,5-4,5 V ratiometric (Type 0705) 0-10 V (3-wire) (Type 0710) 4-20 mA (2-wire) (Type 0720) Supply voltage Ub: 5 VDC +/- 10% max. 6,5 VDC (Type 0705) 12-32 VDC (Type 0710) 10-32 VDC (Type 0720) Maximum load: >= 4,7 kΩ (Type 0705 & 0710)

• Type: Flow Transmitters
• Application: Measuring Use
• Application: Air Conveying System, Building Automation
• Color: Green, Grey, Light Green, Multicolor, Sky Blue
• Feature: Easy To Use, Four Times Stronger, Proper Working, Superior Finish
• Voltage: 110V, 220V
• Frequency: 50Hz, 60Hz
• Power Source: Battery, Electric
• Warranty: 1year, 2years
• operation current: Double Phase, Single Phase, Triple Phase
• Automation Grade: Automatic, Fully Automatic, Semi Automatic
• Temperature Capacity: High Temperature, Low Temperature, Medium Temperature
• Cpndition: New, Used

DESIGN FEATURES   Flameproof enclosure High resolution of 100 pulses per revolution Two separate Pulse Trains 90 Degree Phase shift between dual Pulse O/P Level “A” Pulse security as per IP 252 & API Chapter 5 Uses Eltomatic, Denmark make Encoder (CE marked, IP65/NEMA4 certified) Very low power requirement PRINCIPLE OF OPERATION   The unit consists of a precisely slotted disc, rotating through a solid state optical switch, which houses an infrared light source and a light sensitive diode. The optical switch detects the passage of the slots on the disc, as the input shaft rotates and translates them with the help of an in-built electronic circuit, into positive square wave output pulses. One revolution of the input shaft produces 100 pulses at the output. APPLICATIONS   Operating remote electronic counters to indicate flow meter throughput Operating preset counters to control preset quantities through the flow meter Operating flow recording and flow rate indicating instruments Data acquisition systems

SUCO Silicon-on-Sapphire (SOS) pressure transmitterstransducers – hot new development offering satisfying high temperature operation, high accuracy and repeatability, and long term stability requirements in off highway equipment. The benefits of SOS sensor technology would make them ideal for off-highway equipment. However, price sensitivity has k ept them from penetrating the high-volume off-highway equipment industry. SUCO has introduce its Type 07XX pressure transducer based on silicon-on-sapphire technology. Key advantages of the transducer include: Silicon-on-Sapphire technology Body and wetted parts made of stainless steel titanium No seals and thus low leakeage rate even with difficult gases High overpressure safety especially suitable for use in hydraulic applications Long working life even with high rates of pressure cycles High accuracy and reliability for secure process monitoring Very small size for compact subassemblies Technical data: Type: 0705, 0710, 0720 Output signal: 0,5-4,5 V ratiometric (Type 0705) 0-10 V (3-wire) (Type 0710) 4-20 mA (2-wire) (Type 0720) Supply voltage Ub: 5 VDC +- 10% max. 6,5 VDC (Type 0705) 12-32 VDC (Type 0710) 10-32 VDC (Type 0720) Maximum load: >= 4,7 kΩ (Type 0705 & 0710)

• Accuracy: ± 0.5% F. S.
• Types of Input: Dedicated
•  : • RTD (Pt-100 / PT-200 / CU-53) 2 or 3 wire • Thermocouple (J / k type)
• Type of Output: 4-20 mA DC, 2 wire non-isolated
• Calibration Range: Factory Calibrated
• Power Supply: 24 V DC, external
• Power Consumption: < 40 mW
• Response Time: < 500 msec
• Temperature Coefficient: ± 0.01% peroC
• Enclosure: Epoxy Mould
• Dimensions: 45 mm (Ht) x 30 mm (Dia)
• Mounting: Head Mounting
• Weight: 250 gms
• Operating Conditions: Temperature 0 to 55oC / Humidity 5 to 95% non condensing

• Type: Digital
• Frequency: 80 kHz
• Usage/Application: Level Measurement

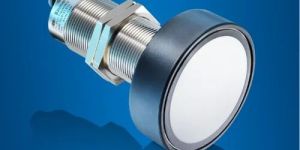

• Model Name/Number: UNAM 70
• Voltage: 15 ... 30 VDC
• Accuracy: <3 mm
• Operating Range: 600 to 6000 mm
• Ambient Temperature: 70 deg.c Max
• Output Value: 4....20 mA / 0...10 VDC
• Input Value: 12...30 VDC
• Rated Supply Voltage: 12-38 VDC
• Brand: Baumer

• Output: 4 - 20 mA
• Features: Pocket friendly price , Easy to install, Durable.
• Working Range: 0-20m/s
• Response Time: Typ. 4 sec. or typ. 0.2 sec.
• Power Supply: 24V AC/DC +- 20 %
• Current Consumption: Max 150mA
• Electrical Connection: Screw Terminals max. 1.5 mm
• Angular Dependence: Less than 3 % of measurement
• Probe Length: 200 mm

• Type: Pressure Transmitter
• Material: Aluminium, Plastic, Polyester Film, Raw Aluminium
• Weight: 0-50gm, 100-150g, 150-200gm, 200-250gm, 250-300gm, 300-350gm, 350-400gm, 400-450gm, 450-500gm, 50-100gm
• Color: Blue, Grey, Light White, Metallic, Silver, White
• Application: Industrial Use, Pressure Measurement
• Frequency: 50Hz, 60Hz
• Driven Type: Battery
• Feature: Auto Controller, Dipped In Epoxy Resin, Durable, High Performance

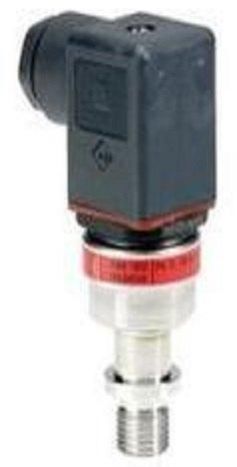

• Brand Name: Danfoss
• Media Type: Gas
• Contact System Type: SPDT
• Contact Material: Silver
• Electrical Rating: AC-3
• Model: 064G6522
• Accuracy, Max. +/- FS %: 1,00 %
• Accuracy, Typical +/- FS %: 1,0 %
• Ambient temperature °C: -20 - 80 °C
• Compensated Temp. Range °C: 0 - 80 °C
• Electrical Connection Type: Pg 9, EN 175301-803-A, Male and Female
• Enclosure Rating: IP65
• Output Signal Type: 4 - 20 mA
• Overload Pressure Max.: 75,0 bar - 1.088 psi
• Pressure Connection HEX: 24,0
• Pressure Connection Standard: EN 837
• Pressure Connection Type: G - 1/4 Male
• Pressure Range: 0,00 - 10,00 bar
• Response Time Max.: 4 ms
• Supply voltage: 9,00 - 28,00 V

• Feature: Temperature compensated, High level current Output Signal, Compact construction,Zero and span adjustments, False system shutdown prevention.
• output signal: 4-20mA (2 Wire)
• Item Code: P7620A
• Fitting Material: 304 stainless steel
• Media Temperature Range: -25 +85 Deg C
• Weatherproof rating: IP 65
• Ceramic Sensor: Aluminum Oxide Al2O3(96%)
• Power Requirement: 10-32 VDC
• Connection: G 1/2
• Proof Pressure: 2 times of pressure range, 5 times of pressure range
•  :

• Features: Dimensional accuracy , Long life , Quality checked
• Pay Mode Terms: T/T (Bank Transfer)

PRESSURE TREANSMITTER Series 4450-TX-EX, 4450-TX-U Features Gauge, Absolute pressure 2 wire design Temperature Compensated upto 80 deg C All wetted parts SS 316 Reverse polarity protected With or without local indication Flame proof, non flame proof versions available Liquid level measurement Chemical remote seal can be provided

ultrasonic transmitter, ultrasonic distance meter, Ultrasonic Bath

• Output: Signal span 4...20 mA, 2-wire
• Power Supply: 24 VDC
• Storage Temperature: -55 to +90 C
• Diameter: 44 mm
• Operating temperature: -40 to +85 C
• Minimum span: 25 C
• Pitch: 19 mm

We are manufacturers and suppliers of industrial grade Steam flow totalizers. These units are designed to measure the mass flow rates of saturated and superheated steams. It calculates the instantaneous density from pressure and temperature and computes the mass flow as per guide lines from BS1042 ISO: 5167.

P R E S S U R E & L E V E L T R A N S M I T T E R S, Butterfly Valves

electrical transmitter, Electrical Panel, electrical product

Pressure Transmitter, Diaphragm Seals
