Tungsten Copper Dealers in Pune

Tungsten Copper

5,500 Per Kilogram

2 Kilogram (MOQ)

• WCu: Yellowish Gray

Tungsten copper alloy is an alloy composite of tungsten and copper which has the combination s of the excellent properties of tungsten and copper, such as heat resistance, aberration resistance, high density, excellent thermal and electrical conductivity.

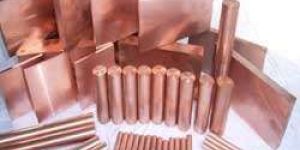

Copper Tungsten Parts

Get Price Quote

We manufacture Machined Copper Tungsten Parts Suppliers  India with complex and correct Copper tungsten material elements as per client drawings on standard machines moreover as on CNC,VMC machines. Machined Copper Tungsten Manufacturers  India Machined Copper Tungsten Parts   These Tungsten Copper Machined elements are high-density part used in numerous sectors. W Cu in 80%-20%,70%-30%,60%-40% or 50%-50% are available in raw material as well as machined elements. Copper tungsten could be a mixture of copper and tungsten. As copper and tungsten don’t seem to be reciprocally soluble, the material consists of distinct particles of one metal dispersed in a matrix of the opposite one.Machined Copper Tungsten  Manufacturers  India The small structure is therefore rather a metal matrix composite instead of a real alloy. the material combines the properties of each metal, leading to a material that is heat-resistant, ablation-resistant, extremely thermally and electrically conductive, and straightforward to a machine.Parts are created from the Cu W composite by pressing the tungsten particles into the required form, sintering the compacted half, then infiltrating with liquefied copper. Sheets, rods, a Tungsten copper (W Cu) materials are used for arcing contacts in SF 6 circuit breakers for prime and medium voltage applications. At the heart of the switch chamber, WCu arcing contacts are exposed to extreme mechanical and thermal stresses. during arcing, the temperature will reach levels ≥ 20,000 K, for instance.Machined Copper Tungsten Manufacturers   India Tungsten-copper has distinctive material properties. A high level of temperature resistance is one in all the most important advantages of tungsten, whereas the copper content will increase the electrical and thermal physical phenomenon.Machined Copper Tungsten Parts Manufacturers India Excellent arc resistance excellent arc resistance Outstanding electrical conduction High strength Good machine ability Very sensible thermal conduction Low thermal enlargement Specifications : High density Good machine ability Sensible mechanical properties Feature: The surface is extremely swish, without holes, cracks, de-laminations or alternative defect The copper content of the product usually accounts for 100 percent to five hundredths. Good electrical and thermal conductivity. Tungsten copper alloy elements incorporates a low thermal expansion

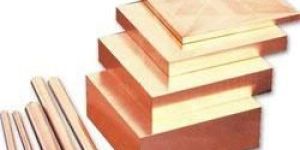

Tungsten Copper

Get Price Quote

Tungsten Copper alloy is an alloy composite of tungsten and Copper that has the mixture s of the superb properties of tungsten and Copper, like heat resistance, aberration resistance, high density, wonderful thermal and electrical physical phenomenon. it�s simple to be machine. We are leading Tungsten Copper Manufacturers in India.

Tungsten Copper

Get Price Quote

Tungsten Copper alloy is an alloy composite of Tungsten and Copper which has the combination s of the excellent properties of Tungsten and Copper, such as heat resistance, aberration resistance, high density, excellent thermal and electrical conductivity. It is easy to be machine. We Supply Tungsten Copper by Press, Sinter & Infiltration method with the tungsten content ranging from 50% to 90% by weight. The balance is copper.   1. Electrical Contact materials Electrical contacts are subjected to extreme mechanical and thermal stresses during operation. For fractions of a second, temperatures rise to several thousand degrees as a result of the arcing. Only Tungsten Copper materials will stand these high temperature & aberration. Tungsten Copper material has good resistance to arc erosion, mechanical wear, contact welding and good conductivity. They are usually selected for oil, gas, air or vacuum, devices. The contact surfaces will oxidize when switched in air. These press-sinter-infiltrate materials should only be considered for arcing surfaces in air when used as arcing tips, arc plates and arc runners. When switching with moderate contact arcing, the Tungsten Copper with a high copper content may give the lowest erosion. As arcing severity increases, the Tungsten Copper with the higher refractory content withstand arc erosion better. Tungsten Coppers are also used as arcing edges of selector switchblades in transformer tap changers. 2. Electrodes for Spark Erosion Tungsten Copper electrodes are best suitable material for electrical discharge machining (EDM) applications. It has excellent wear resistance, good metal removal rate and ability to retain good detail. It is used where speed and wear resistance are most important. 3. Resistance Welding Tungsten Coppers are used for some spot welding application of low conductivity materials, and as die inserts for flash and butt resistance welding applications. 4. Heat Sinks Modern computer processors like the 586 series and higher, generate a heat output per square centimeter similar to that of a household cooker surface. Tungsten-copper heat sinks and the processor fan remove the heat.
