UBIQUE SYSTEMS Pirangut, Pune, Maharashtra

Vibration Tester are subjected to varying intensities of vibrations. Vibration Test is carried out to assess the performance of a filled package in terms of its strength or protection that it offers to its contents when subjected to vibration. This test method simulates the transport hazards, to produce an equivalent effect or damage during the test.

Universal Testing Machine Tare set facility for load indicator to set off dead weights of clamps, springs, etc., and to read actual load directly. Length reset facility for length indicator at any position of moving platen to indicate actual deflection. This equipment is extremely versatile for conducting a variety of tests, on different materials as per national and international standards.Easy to program controller.

Tear Resistance Tester Force required to tear samples of paper, board, plastic films and other similar materials. The equipment is designed to directly read gF (Tear Force) per one piece. The Tear Force thus obtained can be converted into Tear Energy, Tear Index or Tear Factor by applying appropriate formula. The machine incorporates:

Substance Indicator directly indicates substance of paper and paperboards in terms of grams per sq. meter. A must for manufacturers of paper, corrugated boards, solid fibreboards, shipping containers,etc., and for consumers dealers of such packaging materials.

Digital display of Length and Load. Tare set facility for load indicator to set off dead weights of clamps, springs, etc., and to read actual load directly. Length reset facility for length indicator at any position of moving platen to indicate actual deflection. Fully automatic test with single button test start. Easy to program controller. This equipment is extremely versatile for conducting a variety of tests, on different materials as per national and international standards.

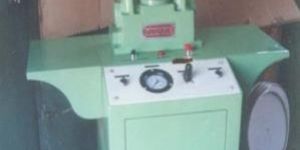

Split Bush OD Under Load Tester To check Average Center Line and parallality of parting line. Crush Force: 250 to 1,800 Kgf - variable. Digital Pressure Indicator on optional. (Higher capacities on request), PC Software for machine operation control and data acquisition optional.

Specimen Fluter is one of the essential characteristics of corrugated board and this test is necessary to identify and measure the crushing resistance of the flute structure on the corrugators and other converting equipment. The CMT permits the evaluation of corrugating medium before it is fabricated into combined board, and may also be used as a basis for judgment of fabrication efficiency. It is most essential to make laboratory specimen of fluted strip of corrugating medium for conducting Concora Medium Test (CMT).This equipment is designed to make laboratory specimen for accurate testing of medium on Crush Tester.

Dimensions : 700 x 650 x 600

Weight : 150

Specimen Cutter The equipment facilitates accurate and right angle cutting of specimen required for Ring Crush, Flat Crush, Substance, etc.

The equipment is designed to give an accurate and reliable indication of the resistance offered by the packaging materials to puncture. Useful for testing a wide range of materials from thin papers to thick boards and similar materials. Indispensable for quality control and development work both for manufacturers of packaging materials and their consumers. The equipment is made to international standards. Each machine is individually tested and calibrated in the factory.

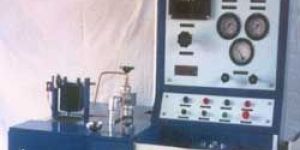

Spin on type Lub Oil Filter Performance Test Rig based on JIS D 3904 JIS D 1611. Filter efficiency & life test. Data acquisition capability. Working of relief valve test. Pressure loss test. Flow resistance test. Filter element strength test. Also available Test systems for all other types of oil filters, Air filter test rigs. Fuel filter test rigs.

Filter efficiency & life test. Data acquisition capability. Working of relief valve test. Pressure loss test. Flow resistance test. Filter element strength test. Also available Test systems for all other types of oil filters, Air filter test rigs. Fuel filter test rigs.

Spin on type Lub Oil Filter Performance Test Rig based on JIS D 3904 JIS D 1611. Filter efficiency & life test. Working of relief valve test. Pressure loss test. Flow resistance test. Filter element strength test.

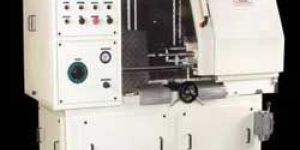

Noise Tester Principle of operation-Component Gear is run with its Mating Gear set at assembly centre distance. ACVD controlled induction motor drives Mating Gear at steplessly variable speed displayed on digital speed indicator. Component Gear in mesh is brake - loaded for single flank contact for sensing meshing noise.

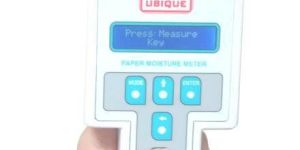

Moisture Tester is an ideal equipment to determine percentage of Moisture Content Present. UBIQUE has introduced a reliable latest technology and equally trust worthy as other UBIQUE testing equipment.

Weight : 250gms

Half Bearing Center Line Tester Fabricated self-standing machine. Crush Force: 250 to 1,800 Kgf - variable. Digital Pressure Indicator on optional. (Higher capacities on request), Measuring System: 2 mechanical dial gauges (Capacity 1 mm, LC 0.001 mm) - one for indicating average center line height, & other for measuring inclination. Digital Dial Indicator on optional.PC Software for machine operation control and data acquisition optional.

Gear Tooth Chamfering Machine AC variable speed Motor coupled to turntable with 200mm dia capacityself-centering 3 jaw with chuck. Single Chamfering Head Having pneumatic grinder with abrasive wheel. Electonic controller for auto stopping after preset turntable revolutions. Retraction of Chamfering Head on completion of auto cycle.

For bore & integration shaft type, Helical & Involute Gears. ZERO BACKLASH - DOUBLE FLANK CONTACT test principle (Meshing Force 1 Kgf). Constructed with graded seasoned CI Casting. Table Mounted. Electrically operated variable speed driver rotates component gear at optimized peripheral speed. PLC based on - line PC system using self standing our PC software to control machine operation, acquire - interpret - display test data, declare Accept Reject status, mark high spots and provide accept mark for accepted components.

To determine Filtering Efficiency Test using contaminated Fuel (Diesel) at rated flow, inlet pressure and ambient temperature, Flow Vs Pressure Drop Test using clean Fuel (Diesel) at rated flow, inlet pressure and ambient temperature, Dynamic Cracking Pressure of Pressure Relief Valve in Filter Assly using clean or contaminated Fuel (Diesel) at rated flow, inlet pressure and ambient temperature.

A precise and reliable machine. Sturdy in construction. Precisely machined to International Standards. Fitted with angular Drop arrangement- for checking transport-worthiness from all angles. Costs less than half of the similar imported tester- saves valuable foreign exchange too. Facility to corner drop.

Bursting Strength is a reliable index of the strength and performance of materials like paper, paperboards, corrugated boards and boxes, solid fibreboards, filter cloth, industrial fabrics, leather, rexine, etc. UBIQUE Bursting Strength Tester is ideal for testing a wide range of materials to determine their quality, strength and performance. UBIQUE Bursting Strength Tester is easy to operate. It is scientifically calibrated for reliability. It is widely used by industries and institutions and stands out as a proven and reliable equipment.

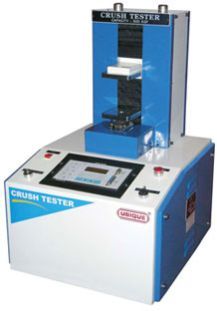

Direct Digital Read- out of Load. Electro-mechanical Loading System. Sophisticated electronic controls for precision and easy operation. Peak hold facility. Supplied with attachments for testing Flat Crush,Edge. Crush and Ring Crush. Other attachments at extra cost.

Provided with tilting arrangement to remove water automatically. Spring loaded clamp for easy insertion and removal of specimen. Height marks provided for maintaining correct water head. Bright chrome plated brass cylinder to avoid corrosion and table stand with enameled paint.

Chamfering machine, Features: Single Chamfering Head Having pneumatic grinder with abrasive wheel. AC variable speed Motor coupled to turntable with 200mm dia capacityself-centering 3 jaw with chuck. Electonic controller for auto stopping after preset turntable revolutions. Automation of Chamfering Head on completion of auto cycle. Retraction of Chamfering Head on completion of auto cycle.
