Universal Calibrator Dealers in Pune

• Material: Stainless Steel
• Color: Grey
• Condition: New
• Pressure: Low Pressure
• Operating Type: Semi Automatic
• Usage: Laboratory, Industrial
• Voltage: 220V
• Display Type: Analog
• Packaging Type: Metal Sheet Box
• Overall Length: 65mm
• Size (mm): 200mm
• Working Capacity: 10-50kg/h
• Specialities: Long Life,Hand held, Battery operated
• Dimension (LxWxH): 375x290x275mm
• Type: Universal Calibrator
• Weight: 1 Kg Approx
• Frequency: 50hz
• Phase: Single Phase
• Accuracy: 0.01
• Country of Origin: India
• Humidity: Max  90% Rh Non Condensing
• Surface finished: Powder Coated
• Corrosion Resistance: No
• Machine Structure: Vertical
• Vacuum range: na
• Operating Temp Deg Celsius: 50
• Reverse Rotation: No
• Is It Variable Speed: No
• Usb Connector: no
• Absolute Mode Range: yes
• Atmospheric Pressure: no
• Effective Stroke Mm: no
• Bridge Resistance Ohms: 500
• Power Supply: Two Batteries of 9V, Size PP3 (optional) battery Eliminator for 230 V AC operation
• Battery Life: 6 Hours in case of continuous operation for full current output 30 hours in case of continuous operation for  mV/RTD output.
• Indication: 4 ½ digit LCD display with Battery low, Over-range  and  Polarity Indication
• Size: 170 (H)* 90(W)*45(D)
• Effect of Temp. Change: 0.002% per Deg. C
• Storage Temp: 0 to 70C
• Operating Temp:  0 to 50C
•  :

• Humidity: Max 90% Rh Non Condensing
• Power Supply: Two Batteries of 9v, Size Pp3
• Indication: 4-½ Digit Lcd Display with Battery Low, Over-range and Polarity Indication
• Operating Temp: 0 to 55 deg C
• Effect of Temperature Change: 0.002% per deg. C ref 25 deg C
• Battery Life: For Continuous Operation 6 Hours- for Full Current Output and 30 Hours-for Mv/rtd Output
• Storage Temperature: 0 to 70 deg C
• Dimensions: 170 (H) x 90(W) x 45(D)
• Weight approx: ½ Kg

• FUNCTIONS : mV, mA Resistance source mV, mA Read
• RANGES : 0 to 200 mV 0 to 25 mA 0 to 500V
• INDICATION : 4 1/2 digit LCD / LED - Green mV, mA and V or °C
• POWER SUPPLY : 230V AC, SOHz for table top model 2 Batteries of 9 VDC for portable model
• RESOLUTION : 10 uVformV 0.01 mA 0.1 V or 0.1 °C
• ACCURACY : 0.1 % of FS 0.15% of FSformA 0.2 % of FS for RTD
• OPERATIONGTEMP & HUMIDITY : 10to50°C, 90%Rhmax
• BATTERY LIFE : 6 hrs. incase of full o/p currect 30 hrs. when no o/p current 90
• SIZE WEIGHT : 90 (H) x 215 (W) x 230 (D) mm 2 kg (Table Top) 1 kg (Portable)

Universal Calibrator is used for the calibration of many types of Process Control Instruments which accept mV, mA & RTD Input. This can be used as better tool for fault finding & confirmation of instrument sensor reliability, hence extremely useful for Commissioning Activity, Quality Assurance, Routine Maintenance & Trouble Shooting.

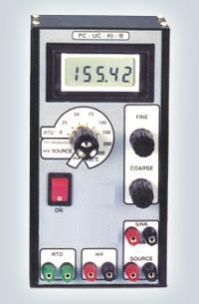

it is designed to tackle most common trouble-shooting during commissioning and routine maintenance. Model 45-B is truly hand held calibration instrument purposely limited functionally to simplify its use. With all its features 45-B battery operated field calibrator is an essential tool in a service engineer's kit.Potential free PT-100-RTD simulator. Higher accuracy, stability, noise immunity. Calibrated on certified multimeters with national traceability. Free calibration checks facility for five years. Guaranteed certification from authorised institutions like ETDC, ERTL, and IDEMI for specified accuracy. One year warranty.

• Input: RTD /mV /mA
• • Range: RDT= 100 to 400°C
• mV = 0 to 199.99 mV:
• mA = 0 to 25.00 mA:
• • Effect on Temp: 0.002% (REF 25°C ) 25°C )
• • Display: 4 1/2 Digit LCD
• • Accuracy level: ± 0.1% of Span
• 24VDC Loop Power with (Battery & Main Model):

Feature :• Portable Battery & Mains ( 240VAC/50Hz) operated• LCD Display• Source and sink for mV, mA, & RTD• Light waight & with carry bag• Direct feed switch for mV/mA RTD• Power on switch

• Weight: 1.25 kg Approx
• Accuracy: 0.1 % ± 3 digits

Make ZEAL Model ZMPCM INPUT POWER 230 V ± 10% AC single phase DIGITAL METER (4½dgt)LED DC Current source Range 0 to 20mA Accuracy 0.1 % ± 3 digits DC Voltage source Range 0 to 200 mV Accuracy 0.1 % ± 3 digits RTD(fix 10 positions)-50,-25, 0, 25, 50,75,100,200,300,400˚CTransmitter Power Supply DIMENSIONS 24V DC (272 x 150 x 200) mm WEIGHT 1.25 kg Approx ACCURACY OF RTD SOURCE 0.1% OF SET TEMPERATURE

• Mains Operated with indication PC-UC-45-M  Model PC-UC-45-M tabletop universal calibrator is widely used for in-house calibration and testing of process control instruments. Mains Operated with indication, this Calibrator is simple in operation, high accuracy and stability which make it an essential instrument in production units, calibration and quality control laboratories service stations in instrumentation field. It comes with certification from authorized institutions like ETDC, ERTL, IDEMI. Model 45-M can be used as certified source for calibration with traceability to national standards.  Features :   Mains operated table top model. mV/mA source and sink. Potential free PT100 RTD simulator. Free calibration check facility for 5-Years.

• Display: 199.99 digits LCD type
• Selection: mV source, mV measure, mA source, mA measure, Resistance source, Resistance measure

ESD�s 310 is a portable battery operated calibrator suitable for calibrating field instruments. This can feed as well as measure mV, mA and resistance inputs. These calibrators are characterised by highly stable and precise output.
