Universal Testing Machine Dealers in Pune

• Machine Type: Testing Machine
• Weight: 100-1000kg
• Color: Green
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 10-15kw
• Warranty: 2 Years

Our company is well versed with online as well as traditional payment methods. As per requirements of patrons, we can sign an agreement for payment with suitable terms and conditions. We are backed by a well-structured and capacious storehouse that assists us in furnishing urgent and quick requirements of the clients. Moreover, we ensure complete safety of the stored items.

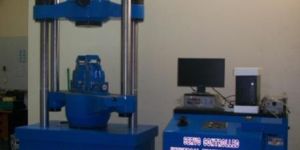

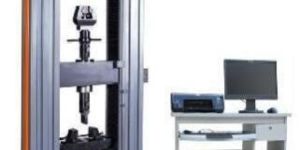

We are offering servo control universal testing machine.

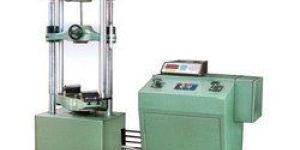

Acme make Universal Testing Machine UNITEST Series are screw driven with precision Ball Screw with Zero Backlash with variable speed drive. Computerized Universal Testing Machine is suitable for studying mechanical behavior of various materials like polymers, metals, rubber, plastic, etc. Universal Testing Machines are easy to operate & they offer excellent performance & flexibility to meet the needs of modern testing equipments. & confirm to IS/BS/ASTM Standards. Moreover, Universal Testing Machines are available with options depending upon test requirements & Control mechanism. We are a renowned Manufacturer and Supplier of Electronic Universal Testing Machine from India. Features : Precision Servo Drive Motor with Zero Backlash Ball Screw given an advanced drive system with wide range of speed range.Provision for load cell interchange & automatic selection of load full scale & Units (Kn or N)Speed selection through data entryFacility for mounting different load cells & clamping devices to suit different testsSafety Interlock for overload & limit switch to ensure protection during testUniversal Application in R & D, Quality control, & Production for tests like Tensile, Compression, Bending, Peel, Flexure, Pullout, Tear, Shear, etc.Window based software for control of machine On line data acquisition to PC as well as data analysisEmergency Button StopLoading Accuracy : +/- 1.0 % of readingLoading Frame : Powder CoatedDisplay : LCD Monitor Software Features : On line data acquisition to PC as well as data analysisReal Time display of data, Tests, & curves & ZoomingOn line / off line generation of graph of load v/s length, load v/s displacement, load v/s elongation, Etc.Software password protectionAutomatic calculation of parameters like % of elongation, peak load, breaking load, displacement, peak elongation, tensile strength, proof stress, yield stress, Young̢۪s Modulus, etc.Printer Port for Printer InterfaceGraph & result PrintoutTest certificate print out Load Cells : We offer strain gauge type load cell in different capacities in th following ranges : 50N, 100N, 200N, 300N, 500N, 1Kn, 2Kn, 5Kn, 10Kn, 25Kn, 50Kn, 100Kn. Grips & Clamping Device : Different Types of Grips available as per requirement. Wedge type grips for flat & round specimensVise type gripsCompression platesBending FixturesShearing attachmentPullout testExtensometer

• Brand Name: UNIVERSAL MOTION
• Application: Steel, Plastic, Rubber, Construction, Research, Educational
• Power: 3 Phase, 440 Volt, 50 Hz
• Size: 100 kg - 200 ton
• Model Number: MUTC
• Place of Origin: INDIA
• Capacity: 2000KN
• Accuracy: 1%
• Gray: Cream

We are manufacturers of universal testing machines. - with hydraulic gripping - manual gripping - computerized - analog - servo control.

• Material: Mild Steel
• Machine Type: Digital
• Brand Name: FIE
• Capacity: 100 kN,200 kN,400 kN,600 kN,1000 kN and 1200 kN
• Usage/Application: Industrial
• Automation Grade: Automatic
• Accuracy: -+1%
• Frequency: 50-60 Hz
• Power Source: Electric
• Finishing: Powder Coated
• Series: UTS 2018-TS

Built in projection screen to get accurate results. Motorized control valve. Straining at variable speeds. User friendly software package. RS 232 Serial Port for PC connection.

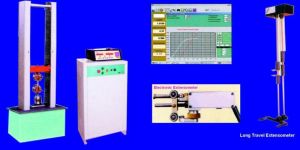

Computerised Universal Testing UNITEK & UTE Machines with 95 New Series Panel Features : Completely PC Controlled. Electronic outside PC cabinet. only one RS 232C Serial on PC is required free for interface. It is having advantage of Ease of Commissioning, Maintenance, Calibration, Trouble shooting etc. No any specification requirements of PC cabinet size, nor any ISA or PCI free slot required. Reduced PC related problems, failures etc. Auto communication port detection on PC. Any latest PC with windows 98/XP installed can be used.   Window Based Software Features : Graph Comparison, point tracing on Graph, Selectable result printout. Graph Zooming, Scaling, Different units selection for Load & Displacement. Test certificate & Single graph Printout. Any printer is suitable. Statistical evaluation software, includes Water Fall dig. Mean deviation, frequency distribution, Screw dig., Histogram. Also calculates max. Value, Min. Value, Mean Value, Variance, Standard Deviation (Other Satistical parameters on request.) Selectable batch & statistical printout. Other optional software include SB01 (for Shear, Bending). RT01 (for Rubber, Textile), EE01 (for EE2 Extensometer), TT01 (for Torsion test). 20,000 load counts in 3 ranges (0-20%, 20-40%, 40-100%). 0.01mm Displacement resolution standard for UNITEK Machines. 0.1mm Displacement resolution standard for UTE Machines. Optional EE2 Extensometer. You will get two simultaneous graphs (Load Vs Displacement and Load Vs Extension) on PC. Proof stress, youngs modulus calculation. Overload protection for full scale load. Additional Safe load entry for better protection.   Following features are applicable only for UNITEK Machines : 2,000 Drive ratio, with precision DC Servo Motor & Drive. Wire connected REMOTE for easy Loading/Unloading of specimens. Limit switch protection on both sides of Cross Head Travel. Watch dog safety to avoid malfunction.   Notes : With EE2 extensometer, EE2 hardware & EE01 software is necessary. There will be only power on switch & LED on external panel, All machine connections will be from this external panel. There will be only serial cable connection from panel to PC. For UTE Machines Control Valve & Release Valve operation is manual. PC & its accessories are not in standard scope of supply.

Application Universal testing machine have a wide range of application. A number of material and metals in different forms and shapes can be tested for a variety of tension, compression, transverse, bend, shear, brinell hardness, etc. special attachments are also available for testing of flat belts, chain links, wire ropes, etc. Construction 1. Loading FrameThe base has a hydraulic cylinder art its centre, and two main screws at both ends. The middle cross head is mounted on screws through main nuts. The middle cross head can be moved up or down through chain transmission and geared motor to adjust the initial tensile / compression clearance. On the piston rests an assembly of upper, lower crosshead and two columns. The individually lapped cylindrical piston assembly ensures smooth transfer of force with minimum friction.2. Hydraulic SystemHydraulic circuit consists of hydraulic power pack having a directly driven radial plunger pump which gives a continuous non pulsating flow of oil pressure upto 250 bar. Oil filter, oil strainer, air breather, oil level indicator, drain plug are on the power pack. A pressure compensated needle type flow control valve is provided to control the oil flow to cylinder thereby achieving desired piston speed. Infinitely variable speeds can be obtained with the help of valves.3. Electrical SystemA separate switch box and electrical panels are provided. Both the hydraulic pump motor and the geared motor have interlocks. Limit switches are provided are to stop the hydraulic pump motor if the load increases beyond the machine capacity or if piston stroke is exceeded. Analogue Control Panel 1. Load measuring systemThe oil pressure in the main cylinder is transferred to the small dynamometer cylinder. The dynamometer piston is kept rotating at a slow speed to ensure dynamic friction condition. The piston exerts a force proportionate to the pressure on the hanger connected to one arm of the pendulum, through an auto range selecting lever system. This force deflects the pendulum. The range selection can be effected by simply turning a knob, provided outside of the panel. An effective damping arrangement is provided to ensure slow return of the pendulum after sudden fracture of the test specimen.2. Load indicating arrangementThe pendulum lever pushes rack which slides over two pulleys. The rack movement is proportionate to the load. A pinion in engagement movement of the rack rotates and moves the pointer fixed to its shaft. The pointer moves over a large dial indicating the load. A window type dial is provided for easy and clear change of the load range.3. Recording systemA continuous roll type load elongation recorder is provided for plotting a load- elongation graph. Load is plotted by the horizontal movement of the rack. Elongation is plotted on the vertical axis and is equal to the movement of the main piston elongation ratio of 1:2 and 1:5 can be obtained.4. Accuracy and calibrationAll measuring ranges of the machine are calibrated within an accuracy of +/- 1% from 20% to 100% of each range as per is 1828 and BS 1610. Computerised Control Panel 1. Load measuring systemThe oil pressure in the main cylinder is also transferred to an electronic pressure transducer which gives a proportionate signal to the data acquisition unit. Both, the motor for hydraulic operation and cross head motion controlled by push button and they have interlocks to prevent simultaneous working of the motors. The electrical panel is fixed on the control panel. Displacement measurement is carried out by means of a rotary encoder. Encoder signal is fed to the data acquisition panel to get displacement in mm.2. Features of data acquisition unit A microcontroller based data acquisition system for data acquisition & indication. Two 16 characters x 2 lines LCD displays for displaying load & crosshead travel value. Auto - detection of over-load, over travel & specimen break. On detection of any of the above conditions, the machine is automatically switched off. Load is indicated with resolution of 0.01% of machine capacity for the entire measurement range (in other words with a resolution of 0.04kN for 400Kn model) Tare load & reset elongation facilities available. Elongation is indicated with a resolution 0.1 mm Storage space to store data of off-line test. 3. Feature of win UTM software The Win UTM software can run a variety of mechanical tests, recall data from previous test & prepare test report. Menu driven software for easy of use Test reports & graph can be sent directly to the printer via parallel port USB port. Storage & retrieval of test parameters. Display of load elongation (stress & strain are optional) at any instant through out the test. On line display of load Vs elongation or stress Vs strain characteristics during conduction of test. The plot is auto scaled & displayed. Selectable units (kN. Kgf, lbf, mm, inch) Variable sample break detection. Load is indicated with a resolution of 0.01% of machine capacity for the entire measurement range of 2% to 100% of machine capacity. Elongation is indicated with a resolution of 0.1 mm Provision of auto- zeroing of elongation at set pre-load. Tare load and reset elongation facilities available. Auto-detection of over load, one travel and specimen break. On detection of any of these conditions, the machine is automatically switched OFF. High precision sensors and encoders used for load and elongation measurement. Large storage capacity for sloring data (upto 50,000) on the computer. Provision for calculations of parameters such as load and elongation at yield, peak load at break. Yield stress, ultimate stress etc. the parameters to be calculated are user selectable. Test conditions, test data and test results are stored in a specific file based on a unique file structure. Built in facility for printing the test results and test graph from PC. A printer copy of consolidated test results conducted on a particular date can also be obtained. Graph of load Vs Crosshead travel, Load Vs Time, Crosshead travel Vs Time, Load Vs Extension, stress Vs strain etc. are available. Specific software for tensile, compression, shear, bend, TOR-Steel and other tests. If an electronic extensometer is used, then proof stress values (from 0.1% to 1.0%) can be determined. If an electronic extensometer is used, software prompts the user to remove extensometer as soon as proof load is crossed. After removal of extensometer, measurement of crosshead travel by the encoder commences and proceeds till completion of test. A combined auto scaled graph using extensometer and encoder is available. The on-line plot shows the graph of load Vs extension (using extensometer) and the plot is continued when measurement is through rotary encoder. The extension Vs elongation axis is appropriately scaled automatically. 4. Accuracy and calibrationEvery machine is calibrated in accordance with procedure laid down in BS 1610-1964 and 1828-1991. Computerized Universal Testing Machine comply with grade A of BS 1610-1964 and grade 1 of IS 1828- 1991. An accuracy of +/- 1% guaranteed from 2% to 100% of capacity of the machine. The Computerized Universal Testing Machine is supplied without the necessary computer, its operating system and the printer; but is supplied with requisite software, conditioning system and the interfaces.

• Capacity: 20, 50, 100, 200, 500, 1000
• Length Indicator Resolution: 0.1 mm

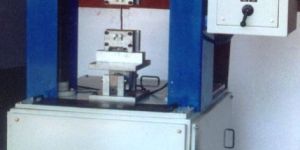

Universal Testing Machine Tare set facility for load indicator to set off dead weights of clamps, springs, etc., and to read actual load directly. Length reset facility for length indicator at any position of moving platen to indicate actual deflection. This equipment is extremely versatile for conducting a variety of tests, on different materials as per national and international standards.Easy to program controller.

Universal Testing Machine Model UTM-40, 40 tons capacity, with following standard accessories for Tension, compression, Bending & Transverse with auto load facility and generally as per the leaflet enclosed. STANDARD ACCESSORIES: Tension Test 10/25 Tension test jaws for ground specimens 25/40 diameter (mm). TENSILE TEST: Tensile Test jaws for flat specimen 0-15 thickness 15-30mm width 65mm. COMPRESSION TEST: Pair of compression plates of diameters 120mm. TRANSVERSE TEST: Table with adjustable rollers of width (mm) 160 diameter of rollers (mm) 30 maximum clearance between supports (mm) 500 radius of punch Tops (mm) 12 and 16.

Universal Testing Machine Microprocessor based electronic panel precision strain gauge type pressure transducer of load measurement. Rotary encoder with rack for crosshead displacement indication with 0.1mm resolution.

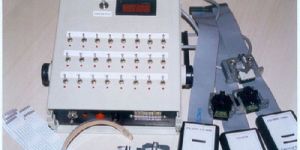

This versatile Jig can be used to test various types of Dot matrix Print heads. The features of the Jig is as given below.Can be used to test the continuity of the all the coils and print head cables simultaneouslyCan be used to check the resistance of each coil of the print head. Can be used to check the firing of individual pins of any print head. CONTINUITY TESTING To test the continuity place the toggle switch on the top of the Unit to the Continuity position. This Jig provides a universal 26-pin male berg connector to which a female berg cable can be connected. Any number of cables can be configured so as to match you print head requirement. The configuration of the Berg connector is 1 to 1 that means pin number 1 of the berg connector represents Pin 1 of print head and LED 1 on the Test Jig. Different cables can be made as per the printer head connector to directly connect the print head to this cable. Once the cable is connected and the Unit is Switched on, all the LEDs on the top of the Unit will light up corresponding to all the coils that are showing continuity. That means if it is a nine pin head then the first nine LEDs will light up, if the head is a 18 pin the first 18 LEDs will light up, if the 24 pin then all the 24 LEDs will light up. NOTE the LED only shows the continuity of the coils not whether the coil impedance is correct, that means even if the coil is electrically short then the LED will light up. For this you have to check the impedance using the digital resistance meter provided. RESISTANCE TESTING To test the Resistance place the toggle switch on the top of the Unit to the Resistance position. Now with the print head connected to the cable depress each micro toggle switch momentarily to display the resistance of that coil. That means if you want to measure the resistance of coil 1 then depress the micro toggle corresponding to 1, this will cause the display meter to display the resistance of that coil. FIRING TESTING To test the Firing place the toggle switch on the top of the Unit to the Continuity position. Now with the print head connected to the cable depress each micro toggle switch momentarily to activate the corresponding PIN. That means if you want to check the firing of PIN 1 then depress the micro toggle corresponding to 1, if you want to check the firing of Pin 2 then depress micro switch no 2 and so on.

We are the leading Manufacturers and Suppliers of Computerised Universal Testing Machine in Maharashtra, India. We manufacture them in accordance with the set industrial standards and norms. Our diligent professionals engineer it with a high level of precision by adopting the pioneering techniques.Features : Completely PC Controlled. Electronic outside PC cabinet. Only one RS 232C Serial on PC is required free for the interface. It is loaded with various attributes like Ease of Commissioning, Maintenance, Calibration, Troubleshooting etc. Neither any specification requirements of PC cabinet size nor any ISA or PCI free slot required. Reduced PC related problems, failures etc. Auto communication port detection on PC. Any latest PC with windows 98/XP installed can be used

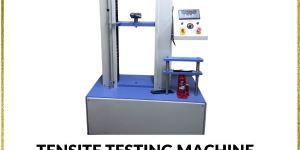

Universal Tensile Testing Machine, Hot Water Bath, Mini Hot Press
