VMC Instruments Ambegaon, Pune, Maharashtra

Our dedicated staff and quality auditors take care of the complete manufacturing of the products, even the raw material sourced at the initial stages are checked on the grounds of quality. We provide customized packaging solutions, as we understand each customer is unique. The packaging we provide is strong, non-toxic, and capable of braving shipping and handling.

VMCVICKSYS is computerized conversion kit for Vickers hardness tester. The conversion kit includes optics, CCD camera, illumination and software. The system we manufacture is very efficient and user friendly. This Vickers Measuring Tube is of high quality and so delivers flawless performance every time. We ensure that the measurement by software that we offer conform to the Industry standards. Used extensively due to their superior features, our Vickers conversion kit offers accurate results every time. We have developed system for various domestic and international machine manufacturers. Kindly contact us for your specific requirements. The unit is USB powered. As you plug in USB video capture, power is sourced by USB port and no other power supply is required. This makes it ideal for measurement with laptop. The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. The software Includes Online indentation setting and focusing on PC monitor. Facility for Auto / semi Auto / Manual modes of operation. Well managed database saves readings w.r.t. batch and certificate. Report generation in the form of certificate and graph with variation and histogram. Facility for calibration and check of calibration. Advance image processing algorithm implemented for automatic measurement. Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading. Measuring scale Calibration / Verification on PC monitor. Scope Of Supply Specially developed tube containing CCD Camera, optics and illumination systems with connecting cable. Interface box External Video capture with USB 2 connectivity and driver software. Software CD. Softdog- Hardware dongle for software Instruction manual PC Requirements 2 gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimum Microsoft Windows 7/8/Vista/XP operating system Display screen resolution minimum 1024 by 768 pixels Two free USB 2.0 ports

Type : Portable

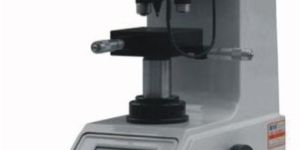

Features Built-in printer RS232 interface High resolution and high brightness LCD display Main accessories Coordinate anvil : 1 pc. Thin shaft anvil : 1 pc. Thin plate anvil : 1 pc Flat nose pliers : 1 pc .Large V-notch anvil : 1 pc. Small V-notch anvil : 1 pc. Diamond pyramid penetrator : 1 pc. Micro-Vickers standardized block : 2 pcs.

The PC conversion kit for Microvickers Hardness Tester is easy to install kit for optical Microvickers Hardness Tester. The system includes High resolution CCD camera with adapter and captures 90% field of view. Put this unit at eyepiece and it is ready to operate. The unit is USB powered. As you plug in USB video capture, power is sourced by USB port and no other power supply is required. This makes it ideal for measurement with laptop. The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. The Software Has Various Features As Magnification Of Image. The Software Includes : Online indentation setting and focusing on PC monitor. Facility for Auto / Remote Auto / semi Auto / Manual modes of operation. Well managed database saves readings w.r.t. batch and certificate. Report generation in the form of certificate and graph with variation and histogram. Facility for calibration and check of calibration. Advance image processing algorithm implemented for automatic measurement. Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading. Measuring scale Calibration / Verification on PC monitor. 4 objectives supported with 4 independent calibrations Multiple impression measurement mode manual measurement. Case Depth analysis with report Scope of Supply CCD Camera and adapter with connecting cable Power supply External Video capture with USB 2 connectivity and driver software Software CD Softdog : Hardware dongle for software Instruction manual PC Requirements 2 gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimum Microsoft Windows 7/8/Vista/XP operating system Display screen resolution minimum 1024 by 768 pixels Two free USB 2.0 ports Also available Illumination System and optics as per customer requirements.

Material : Metal

Application : Industrial

Certification : ISI Certified

Capacity : 12-18kg

Finishing : Polished

Coating : Power Coated

Warranty : 1yrs

Digital Hardness Tester for Rockwell Tests has motorized automatic cycle operation, i.e.. load/dwell/unload. The Preliminary Test Force is 98.07N (10kgf). Total Test Force is 588.4, 980.7, 1471N (60,100,150 kgf). Test Force Selection is by external mechanical dial. The system has bar indication on display for Preload. User can set Preload Dwell time, Dwell time for Total Load and Elastic recovery Dwell. The operation is easy with keyboard entry through reliable membrane switches for scale/HI-GO-LO/Dwell time selection. The scale display is with 0.1 Rockwell Resolution. The system has real time measurement and indication with Digital Dial Indicator of 1 micron resolution. The machine has feature of data export to PC or serial printer. It gives results indicating serial, number of tests, hardness scale, hardness value and high / good / low indication w.r.t limits entered. The Digital Rockwell Hardness Tester (VMCRASNE) covers Rockwell scale A, B, C, D, E, F, G, H, K, L, M, P, R, S, V and confirms IS : 1586, BS EN ISO 6508-1:2005 & ASTM E-18. The Digital Rockwell Superficial Hardness Tester (VMCRSNE) includes all Rockwell scales and 15T, 30T, 45T, 15N, 30N, 45N, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y and confirms IS : 1586, BS EN ISO 6508-1:2005& ASTM E-18. Options Available External serial thermal printer to print reports PC software : To interface machine in PC Export mode

Certification : CE Certified

Voltage : 110V

Power : 1-3kw

Driven Type : Electric

Warranty : 1year

This Rockwell to digital Rockwell conversion kit is easy to install and operate. The Kit Is Available In Two Categories : Manual Loading/Unloading cycle operation : Suitable for manual operating Rockwell hardness tester. Just replace analog dial with digital dial and it is ready to perform. Motorized Loading/Unloading cycle operation : Is with relay switch to operate motor in auto/manual mode. The complete cycle is automatic. Replace analog dial with digital dial, Connect on board relay output to motor, place limit switch for motor position sensing and you are ready for automatic operation of machine. The kit has two variations depending on scale supported. Various models are : Digital Hardness Tester for Rockwell Tests has either automatic digital dial sensing or motorised automatic cycle operation i.e. load/dwell/unload. The Preliminary Test Force is 98.07N (10kgf). This is manually operated by rotating screw up and shown with bargraph indication on display. Test Force Selection is by external mechanical dial. User can set Preload Dwell time, Dwell time for Total Load and Elastic recovery Dwell time. The operation is easy with keyboard entry through reliable membrane switches for scale/HI-GO-LO/Dwell time selection. The scale display is with 0.1 Rockwell Resolution. The system has real time measurement with Digital Dial Indicator of 1 micro resolution. The machine has feature of data export to PC or serial printer. It gives results indicating serial number of tests, hardness scale, hardness value and high / good / low indication w.r.t limits entered. VMCRMK : Rockwell scales manual loading/unloading cycle conversion kit. VMCSMK : Rockwell Superficial scales, manual loading/unloading cycle conversion kit. VMCREK : Rockwell scales, motorized loading/unloading cycle conversion kit. VMCSEK : Rockwell Superficial scales, motorized loading/unloading cycle conversion kit. Comply With The VMCRMK and VMCREK include Rockwell scale A, B, C, D, E, F, G, H, K, L, M, P, R, S, V and confirms IS : 1586, BS EN ISO 6508-1:2005 & ASTM E-18 for measurement. The VMCSMK and VMCSEK includes all Rockwell scales and 15T, 30T, 45T, 15N, 30N, 45N, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y and confirms IS : 1586, BS EN ISO 6508-1:2005 & ASTM E-18 for measurement.

Material : Metal

Application : Machinery Use

Certification : ISI Certified

Finishing : Polished

Coating : Power Coated

Feature : Heat Resistance, Rust Proof

Warranty : 1yrs

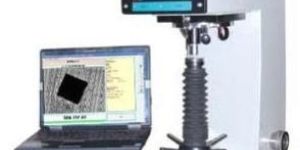

VMC' Computerized Vickers Hardness Tester is a simple and accurate means to automatically measure the diamond indentation and give Vickers hardness number. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard, and their accurate results are widely acclaimed. These tester strictly confirm to IS 1754 - 2002. The operation is automatic with motorized loading/unloading. The weight selection is by mechanicaldial. The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. The Software Includes Online indentation setting and focusing on PC monitor. Facility for Auto / Remote Auto / semi Auto / Manual modes of operation. Well managed database saves readings w.r.t. batch and certificate. Report generation in the form of certificate and graph with variation and histogram. Facility for calibration and check of calibration. Advance image processing algorithm implemented for automatic measurement. Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading. Measuring scale Calibration / Verification on PC monitor. PC Requirements 2 gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimum Microsoft Windows 7/8/Vista/XP operating system Display screen resolution minimum 1024 by 768 pixels Two free USB 2.0 ports Accessories Standard Test Block (1 No.) Diamond indenter (1 No.) Weights (1 Set) Flat Anvil (1 No.) Vee-type anvil (Small & Big) (1 No. each) Spanners (1 Set) Electric Cord & PC interface cord (1 No. each) USB Video Capture (1 No.) Software CD (1 No.) Instruction Manual (1 Book)

Easy to maintain and user-friendliness are the highlights of the Computerized Universal Testing Machine. We are amidst the dependable Manufacturers and Suppliers of the Computerized Universal Testing Machine, located in Pune (Maharashtra). These Computerized Universal Testing Machines have long life and ensure hassle-free performance. Technical description : VMC make TNE series machines are electro mechanical screw driven machines with precision screw and column construction and variable speed drive. Tow option are available mainly VMC threaded screw with DC Motor drive & ball lead screw with servo drive. The machines are suitable for studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines are easy to operate and they offer excellent performance and flexibility to meet the needs of modern testing requirements. The machines confirm to IS, BS & ASTM standards. TNE Series TNE Series machines are available with following options Depending upon test requirements and budget, best combination can be selected. DRIVE  SD : Drive dd is with DC motor with thyrister drive speed ratio As per sample std. Requirement. DRIVE  SD : Drive SD is with servo motor & PWM transister drive to give speed ration As per sample std. Requirement Features Variable speed drive with DC/Servo drive options Provision for automatic identification & thereby interchangeability of load cells Provision of different clamping devices to suit specific test requirement Safety interlock by limit switches & by overload sensing Load Cells We offer universal load cells of following capacities : 50N, 100N, 250N, 500N, 1kN, 10kN, 25kN, 50kN, 100kN, Any other load cell can be offered on requirement. Grips & Clamping Devices: Wedge type grips for flat & round specimens Vise type grips Compression plate Special grip as per requirement Shear Attachment Long travel Extensometer for rubber test Extensometer VMC offers following extensometers with electronic interface & evaluation software M-2 Stain gauge type with 2mm extension and gauge length 25mm & 50mm. It measures important parameter like 0.1%, 0.2% proof stress and usable up to dia/flat 40 mm. Measuring System MP : It is microprocessor based system with digital display of load and displacement / extension it is having members keyboard for entering necessary input data and for reading results, Printout of Load v/s. Displacement or Stress v/s. Strain is available as standard feature. Feature of Measuring System MP Microprocessor based system with state of the art technology Sealed membranes type keyboard with numeric date entry Digital display for load and displacement / extension Graph of Load V/s. Displacement or Stress V/s. Strain available on printer (Printer optional supply) On line real time graph on PC with serial software. Preload selection by keyboard (0.01 % to 1%) to take care of initial slippage of specimen Unit selection by keyboard (T, kN, N). Selection of stop/return of crosshead and direction Selection of type of test like compression / tension / bending / cyclic Test results like peal load, displacement at rapture, % elongation, % reduction in area, yield stress available RS 232 C serial port with following software available as options Basic Evaluation Exhaustive evaluation with 0.2% proof stress Spring Testing Rubber Testing Special Software as per requirement Measuring System PC : Measuring System PC is PC based card system where two PCB's are directly fitted into PC slot; Load & Displacement are shown on computer screen. Input data is feed by means of computer keyboard. Test is automatically completed & test results are displayed on computer screen. Feature of System PC Use friendly 2000 / XP software. Easy to operate and meets all testing requirements. Real time graph with continuous display of load displacement extension. Input data selection. Wide range of output parameter selection Special test programs can be supplied. Unlimited storage of test result dat Unit interchangeability for input and results as per standards. Extensive graphics, Curve fitting, Zooming Batch Testing Facility (Optional) Multi graph load/displacement, stress/strain, load/elongation Software Packages VMC offers following software packages Spring Testing Rubber Testing Torsional testing Bending Testing Statistical evaluation

Certification : ISI certified

Voltage : 110V

Automatic Grade : Automatic

Power : 10-15kw

Warranty : 1 Year

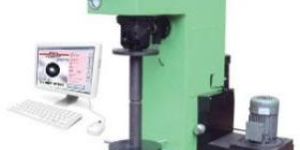

VMC' Computerized Brinell Hardness Tester is a simple and a accurate means to produce brinell impression and automatically measure it. It gives direct display of Brinell hardness number. These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed. These testers strictly confirm to IS : 2281-2005, BS : 10003-2 and ASTM E-10 The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. Technical Data Total Load : 500 to 3000 in stages of 250 kgf Measurement Range : 1-6 mm Max. Test Height : 410 mm Scale least count : 0.01 mm Throat depth : 200 mm Machine Dimension (Approx.) : L 995 x W 400 x H 1178 mm Weight (Approx.) : 450 Kg Power Supply : 415/50/3 V/Cy/Ph The Software Includes Facility for Auto / semi Auto / Manual modes of operation. Well managed database saves readings w.r.t. batch and certificate. Report generation in the form of certificate and graph with variation and histogram. Facility for calibration and check of calibration. Advance image processing algorithm implemented for automatic measurement. Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading. Measuring scale Calibration / Verification on PC monitor. PC requirements 2 gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimum Microsoft Windows 7/8/Vista/XP operating system Display screen resolution minimum 1024 by 768 pixels Two free USB 2.0 ports Standard Accessories Testing table 200 mm dia (1 Piece) Testing table 70 mm dia with "V" groove for round jobs 10 to 80 mm dia. (1 Piece) Ball holder 5 mm (1 Piece) Ball Holder 10 mm (1 Piece) Test Block HB-5/750 (1 Piece) Test Block HB-10/3000 (1 Piece) Allen Spanner (4 Pieces) Telescopic Cover for elevating screw protection (1 Set) Electric Cord & PC interface cord (1 No. each) USB Video Capture (1 No.) Interface box (1 No.) Software CD (1 No.) Instruction manual (1 Book)

Measurement Range : 1-6 mm

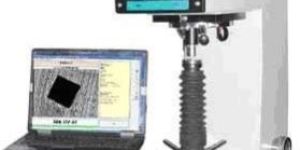

'VMC' Computerised Vickers Hardness Tester is a simple and accurate means to automatically measure the diamond indentation and give Vickers hardness number. The Computerised Vickers Hardness Tester are suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard, and their accurate results are widely acclaimed. These tester strictly confirm to IS 1754 - 2002. The operation of the Computerised Vickers Hardness Tester is automatic with motorized loading/unloading. The weight selection is by a mechanical dial. Technical Data Total Loads : 5, 10, 20, 30, 50, kgf (1Kg optional)Max. Test Height (mm) : 200Diagonal least count (mm)Diagonal measuring range (mm) : 0.001, 0.05 to 0.5Throat depth(mm) : 135Machine Dimension (Approx.)mm : L 585 x W 290 x H 860Weight (Approx.)mm : 70 kg.Power Supply : 220VAC, 50Hz, 1Phase The software includes Online indentation setting and focusing on PC monitorFacility for Auto / Remote Auto / semi Auto / Manual modes of operationWell managed database saves readings W.R.T. batch and certificateReport generation in the form of certificate and graph with variation and histogramFacility for calibration and check of calibrationAdvance image processing algorithm implemented for automatic measurementStatistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum readingMeasuring scale Calibration / Verification on PC monitor PC requirements 2 gigahertz (GHz) or faster processor1 gigabyte (GB) RAM minimumMicrosoft Windows 7/Vista/XP operating systemDisplay screen resolution minimum 1024 by 768 pixelsTwo free USB 2.0 ports Accessories Standard Test Block 1 No.Diamond indentor 1 No.Weights 1 SetFlat Anvil 1 No.Vee-type anvil ( Small & Big ) 1 No. eachSpanners 1 SetElectric Cord & PC interface cord 1 No. eachUSB Video Capture 1 No.Software CD 1 No.Instruction Manual 1 Book.

Brand Name : VMCVM50PC

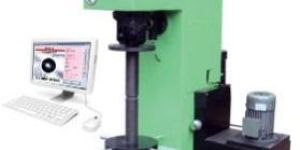

Computerised Brinell Hardness Tester is a simple and an accurate means to produce Brinell impression and automatically measure it. The Computerised Brinell Hardness Tester, which we offer, gives direct display of Brinell hardness number. These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed. These Computerised Brinell Hardness Testers strictly confirm to IS : 2281-2005, BS : 10003-2 and ASTM E-10. Technical Data Total Load : 500 to 3000 in stages of 250 kgfMeasurement Range : 1-6 mmMax. Test Height : 410 mmScale least count : 0.01 mmThroat depth : 200 mmMachine Dimension (Approx.) : L 995 x W 400 x H 1178 mmWeight (Approx.) : 450 mmPower Supply : 415/50/3 V/Cy/Ph The Software Includes Facility for Auto / semi Auto / Manual modes of operation.Well managed database saves readings w.r.t. batch and certificate.Report generation in the form of certificate and graph with variation and histogram.Facility for calibration and check of calibration. Advance image processing algorithm implemented for automatic measurement.Statistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum reading.Measuring scale Calibration / Verification on PC monitor. PC requirements gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimumMicrosoft Windows 7/8/Vista/XP operating systemDisplay screen resolution minimum 1024 by 768 pixelsTwo free USB 2.0 ports Standard Accessories Testing table 200 mm dia (1 Piece)Testing table 70 mm dia with "V" groove for bround jobs 10 to 80 mm dia. (1 Piece)Ball holder 5 mm (1 Piece)Ball Holder 10 mm (1 Piece)Test Block HB-5/750 (1 Piece)Test Block HB-10/3000 (1 Piece)Allen Spanner (4 Pieces)Telescopic Cover for elevating screw protection (1 Set)Electric Cord & PC interface cord (1 No. each)USB Video Capture (1 No.)Interface box (1 No.)Software CD (1 No.)Instruction manual (1 Book)

'VMC' Computerised Brinell Hardness Tester is a simple and accurate means to produce brinell impression and automatically measure it. The Computerised Brinell Hardness Tester gives direct display of Brinell hardness number. These Computerised Brinell Hardness Testers are suitable for measuring the hardness of metallic parts in a wide range - from soft to hard, and their accurate results are widely acclaimed. The Computerised Brinell Hardness Testers, we offer strictly confirm to IS: 2281, BS: 10003-2 and ASTM E-10. Technical Data Total Load kgf : 500 to 3000 in stages of 250 kgfMeasurement Range : 1-6 mmMax. Test Height : 410 mmScale least count : 0.01 mmThroat depth : 200 mmMachine Dimension (Approx.) mm : L 995 x W 400 x H 1178Weight (Approx.) :  450Power Supply V/Cy/Ph : 415/50/3 The software includes Facility for Auto / semi Auto / Manual modes of operation Well managed database saves readings w.r.t. batch and certificateReport generation in the form of certificate and graph with variation and histogramFacility for calibration and check of calibrationAdvance image processing algorithm implemented for automatic measurementStatistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum readingMeasuring scale Calibration / Verification on PC monitor.

Brand Name : VMCB3000PC

We are offering Brinell Microscope. Brinell Impression Measurement System virtually eliminates operator influence. It is found that measuring Brinell indentations can result in measurement errors between operators. This B.I.M.S. can virtually eliminate operator influence on test result. With this handy instrument entire test sequence is simple. Place the CCD camera tube on the work piece and click on 'Auto' in toolbar on computer screen. The B.I.M.S. automatically measures the diameter of indentation with resolution of 0.01mm and display Brinell hardness value with diameter. All data storage functions are automatically performed according to batch parameters. An unlimited number of batches can be created each with its own test parameters and certificates. The operator can select test load and indentor size, party name, address, certificate no. date, batch no. and description, high and low limits for readings etc. The previous batches can be reopened for viewing and address change etc. The software reports include readings, statistical data, frequency distribution and variation graphs and certificate. The export to Excel option is provided and generates Microsoft excel file. The systems includes calibration and check facilities to calibrate scale and for checking of calibration. This eliminates any systems error in measurement. The B.I.M.S. can be configured to meet your needs. Just place and click! Operating B.I.A.S is easy. Software Includes Facility for Auto / semi Auto / Manual modes of operationWell managed database saves readings w.r.t. batch and certificateReport generation in the form of certificate and graphFacility for calibration and check of calibration Specification The range of Measurement is from 1mm to 6 mm of diameter with Resolution of 0.01mm.

Brand Name : BIMS

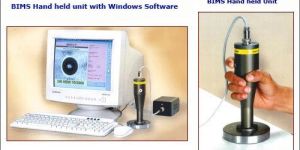

The Brinell Impression Measurement System (B.I.M.S.) is automatic brinell microscope. The specially developed software give reliability, repeatability in Brinell measurement. The B.I.M.S virtually eliminates operator influence It is found that measuring Brinell indentations can result in measurement errors between operators. This B.I.M.S. can virtually eliminate operator influence on test result. Just place and click! Operating B.I.M.S is easy With this handy instrument entire test sequence is simple. Place the CCD camera tube on the work piece and click on 'Auto' in toolbar on computer screen. The B.I.M.S. automatically measures the diameter of indentation with resolution of 0.01mm and display Brinell hardness value with diameter. All data storage functions are automatically performed according to batch parameters. The B.I.M.S. can be configured to meet Yours� needs An unlimited number of batches can be created each with its own test parameters and certificates. The operator can select test load and indenter size, party name, address, certificate no. date, batch no. and description, high and low limits for readings etc. The previous batches can be reopened for viewing and address change etc. The software reports include readings, statistical data, frequency distribution and variation graphs and certificate. The export to Excel option is provided and generates Microsoft excel file. The systems includes calibration and check facilities to calibrate scale and for checking of calibration. This eliminates any systems error in measurement. Mobile measurement system - Use anywhere The unit is USB powered. As you plug in USB video capture, power is sourced by USB port and no other power supply is required. This makes it ideal for measurement with laptop. The BIMS confirm to measurement as per IS : 2281-2005, BS : 10003-2 and ASTM E-10. The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. The Software Includes Facility for Auto / semi Auto / Manual modes of operation. Well managed database saves readings w.r.t. batch and certificate. Report generation in the form of certificate and graph. Facility for calibration and check of calibration. Specification : The range of Measurement is from 1mm to 6 mm of diameter with Resolution of 0.01mm. Applications : To measure Brinell Hardness directly on machine where presently Brinell-Microscope is used. This avoids eye straining of operator and speeds up production testing. In addition it gives far better repeated accuracy. High-low limits selections enables easy acceptance / rejection of components. Can be connected to Laptop or Desktop PC. Easy to carry anywhere and handy for use with easy setup. Scope of Supply One hand held unit containing CCD Camera, optics and illumination systems with connecting cable. External Video capture with USB 2 connectivity and driver software. Brinell Impression Measurement System (B.I.M.S.) software. Softdog- Hardware dongle for software Instruction manual PC or LAPTOP and windows 7/8/Vista/XP operating system is to be procured by customer. PC Requirements 2 gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimum Microsoft Windows 7/8/Vista/XP operating system Display screen resolution minimum 1024 by 768 pixels Two free USB 2.0 ports and one RS232 (serial) interface (9 pin). The external USB to serial converter can be used for RS232 interface.

VMCBRINSYS is computerized conversion kit for optical brinell hardness tester. The conversion kit includes optics, CCD camera, illumination and software. The system we manufacture is very efficient and user friendly. These Brinell Impression Measuring Tubes are of high quality and so deliver flawless performance every time. We ensure that the measurement by software that we offer conform to the Industry standards. Used extensively due to their superior features, our Brinell Impression Measuring Tubes offer accurate results every time. We have developed system for various domestic and international machine manufacturers. Kindly contact us for your specific requirements. The unit is USB powered. As you plug in USB video capture, power is sourced by USB port and no other power supply is required. This makes it ideal for measurement with laptop. The system comprises specially developed image processing software for automatic measurement, Software is proven in industry and is being used since many years to get reliable and accurate readings in less than a second. The software Includes Facility for Auto / semi Auto / Manual modes of operation. Well managed database saves readings w.r.t. batch and certificate. Report generation in the form of certificate and graph. Facility for calibration and check of calibration. Specification : The range of Measurement is from 1mm to 6 mm of diameter with Resolution of 0.01mm. It can be connected to Laptop or Desktop PC. Applications : To measure Brinell Hardness directly on machine with PC software. This avoids eye straining of operator on producing testing. In addition it gives far better repeated accuracy. High-low limits selections enables operator easy acceptance / rejection of components. Scope of Supply Specially developed tube containing CCD Camera, optics and illumination systems with connecting cable. Interface box External Video capture with USB 2 connectivity and driver software. Software CD. Softdog- Hardware dongle for software Instruction manual PC Requirements 2 gigahertz (GHz) or faster processor 1 gigabyte (GB) RAM minimum Microsoft Windows 7/8/Vista/XP operating system Display screen resolution minimum 1024 by 768 pixels Two free USB 2.0 ports

Material : Metal

Application : Industrial

Certification : ISI Certified

Capacity : 12-18kg

Finishing : Polished

Feature : Heat Resistance, Rust Proof

Warranty : 1yrs
