Voltage Protector Dealers in Pune

• Type: Preventive Device
• Brand Name: Ureka
• Body Material: Metal
• Preice: 3200/pcs and 20% discount on 10 Pcs

Our entire range is made to go through to extreme quality control checks to make sure they adhere to standards of global management systems. Backed by a productive network, our company is able to cater to buyers all over Pune(India) and other Pune(India)s with ease.

• Supply voltage: 3 Phase, 415 VAC +-10% 50Hz
• Mounting: DIN RAIL
• Dimensions: 63(W) X 72(H) X 114(D) ,mm.
• Trip Time delay: 50 msec.
• Output: Two Potential free Relay contact of 5A rating
• Output Contacts: Two Change over .( C- NO- NC),Rating 5 A at 230 VAC

Protection of 3 Phase devices against Over voltage, Under voltage,Single Phasing, Reverse Phasing & unbalance supply are one of the major issue in electrical systems. For safe running of 3-phase devices, special protections that keep a continuous watch on supply conditions are very essential. The major cause of maximum load burn-out is overloading which occurs due to unbalance supply, Single Phasing & Reverse Phasing conditions. VMR3P detects such Conditions & protect the load from burn out. 'PROTON's LVM 3P' offer above protections along with 3 digit display showing R-Y,Y-B,BR voltages in scanning mode with precise accuracy. LOW/HIGH voltage tripping to ensure trouble free running of 3-phase Loads. Additional auxiliary supply not required.     Latest micro controller based technology. Wide range of supply variation. Unit also works with one phase is present. Additional auxiliary supply not required. Protection against Under voltage. Protection against Over voltage. Single Phasing & Reverse Phasing protection. Reverse Phasing Protection can be bypased through settings. Trip delays for all protections. Set Parameters are easy to handle with simple trimpot.   LED indication for status of relay & Power.

• Dimension(LxWxH)(mm): 141x78x52

Our Over Voltage Protectors device is low cost, general purpose precision engineered models that are incorporated with high reliability to efficiently deliver as per customer’s needs. We assure you complete satisfaction in all aspects.

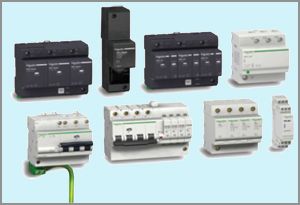

Rated Impulse current Iimp : 12.5kA 25kA & 50100kA for NPE, Maximum discharge current Imax: upto 50kA, Voltage protection level Up < 1.5kV, Compliance with Standards : IEC 61643-1 , Type 1 as well as Type 2 tests, Voltage protection level Up: ≤ 1.5kV.

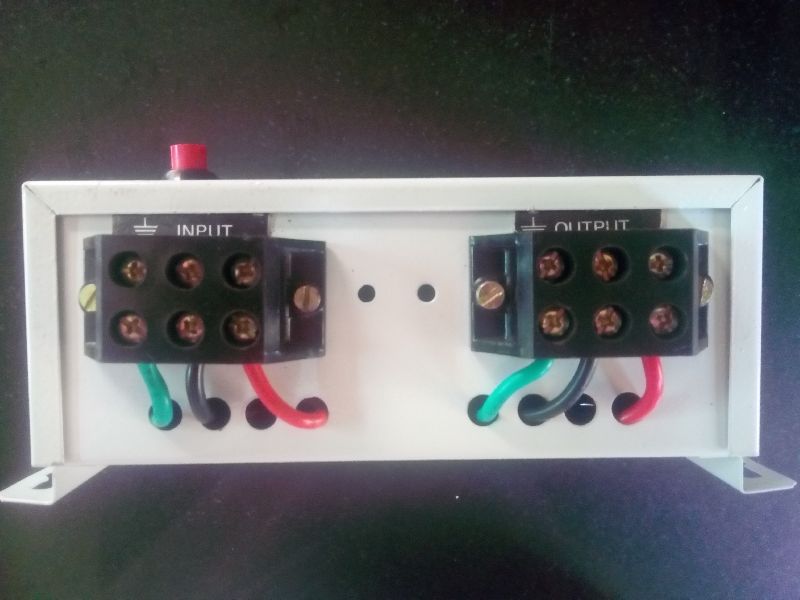

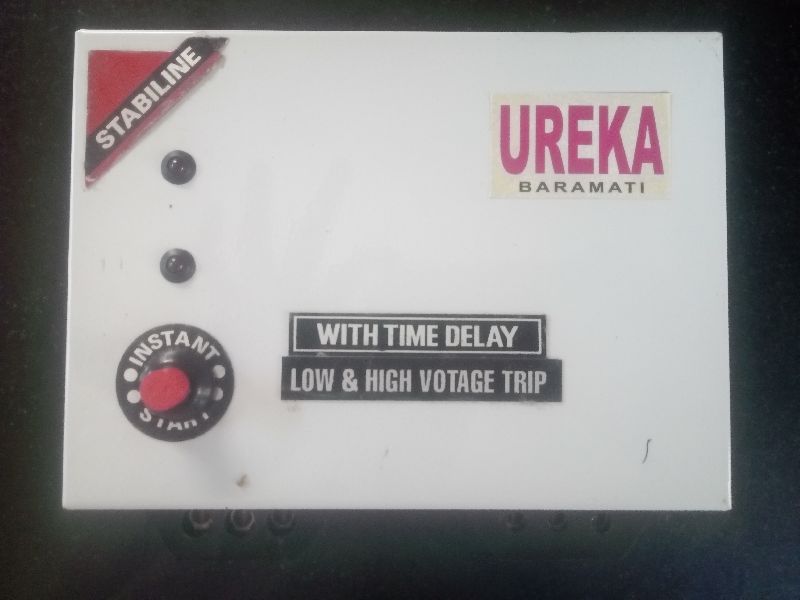

Home Voltage Protector

Three Phase Voltage Protector, Single Phase Home Protector, Clean Air System

Over Voltage Protector, Single Output Battery Charger with DPM

Voltage Home Protector
