Wind Mill Trainer Kit VSET-EG-01
VSET-EG-01 Trainer Kit is designed for study of Renewable energy Source by using Wind Turbine. Scope of Learning:- Study of Wind turbine. Study of Battery Charger. Study of Inverter
...more
VOIP Trainer Kit-VSET-MC-06
VSET-OFC-01 Fiber Optic Communication is one of the most popular technologies in the modern days due to its high transfer capacity and quality, as well as speed and security. VF FOC-1 uses fiber optic as a transmission media for the whole experiment. With four different data transmission ways (self module transmission, module-to-module transmission, PC-to-module transmission, and module-to-PC transmissions) and various different modulation/demodulation methods (AM/FM/PPM/PWM/PAM) introduced in the training system, users can obtain a very clear view of how fiberoptic transmission works. Scope of Learning:- Estimation of Numerical aperture of fiber. Plot the characteristics of various sources and detectors. Measure attenuation of MMSI and SMSI fiber and comment on the result based on Attenuation due to increase in length as well as loss due to bend. Set up a digital link and analyze.
...more
Unregulated DC Power Supply
It comes with unregulated voltage resolution and makes it ideal for testing of load source in your work bench.
...more
UNIVERSAL LOAD BANK -VSET-LB-001
VSET-LB-01 Load Bank Control Panel is designed for study of Varies Type of Loads like Resistive, Inductive, Capacitive, E Load and Battery Load. Scope of Learning:- Study of Resistive (R) Load. Study of Inductive (L) Load. Study of Capacitive (C) Load. Study of PMDC Motor and (E) Load. Study of Battery (B). Study of all above Load in various type of Connection as R+L, R+L+E, R+B, R+L+B etc.
...more
Triple Phase DC Power Supply
It comes with superior voltage/current resolution and makes it ideal for testing of load source in your work bench. These power supplies are for laboratory as well as for industry usage. It is supplied with MS Powder coated panel and front panel is provided with all metering devices and accessories. 30V/200A,120V/200A Series pass linear technology based Over Voltage, Over Current, Over Load, Short Circuit
...more
Sparten 3 FPGA Trainer Kit VSET-VLSI-01
VSET-VLSI-01 The TYRO-FPGASP3 is a low priced, compact prototyping module that can be used for rapid proof of concept or for educational environments. The module is based on the Spartan 3 FPGA from Xilinx along with supporting circuitry to ease prototyping efforts. Designers can use the Spartan-3 kit for general FPGA prototyping, experimenting with multiple FPGA configuration techniques, and proving out low cost design methods. Scope of Learning:- LCD 16x2 Display Interface. 4x4 Matrix Keypad Interface On board LEDs Interface Onboard Switches Interface On board VGA Interface On board UART Interface On board Keyboard Interface On board FIFO Memory Interface On board Universal shift register with mode selection input for SISO, SIPO, PISO, & PIPO modes. On Board 4 bit ALU for add, subtract, AND, NAND, XOR, XNOR, OR, & ALU pass.
...more
Single Phase Full Bridge PWM Based Voltage Source Inverter-VSET-PE-01
VSET-PE-01 Single Phase Full Bridge PWM Based Voltage Source Inverter Trainer Kit is Design to Sturdy Wave Forms and its Characteristics. Scope of Learning:- Study of Different Packages of MOSFET. Study of Constructions of MOSFET. Study of Working Principle of MOSFET. Study of Working Principle of Inverter. Study of Efficiency of the Inverter. Study of MOSFET Switching using PWM Signal.
...more
Single Phase DC Power Supply
It comes with superior voltage/current resolution and makes it ideal for testing of load source in your work bench. These power supplies are for laboratory as well as for industry usage. It is supplied with MS Powder coated panel and front panel is provided with all metering devices and accessories. 32V/20A, 64V/10A, 128V/5A Series pass linear technology based Over Voltage, Over Current, Over Load, Short Circuit
...more
Satellite Trainer Kit-VSET-BC-01
VSET-SC-01 Satellite Communication Trainer Kit has been designed to study completely about satellite communication system i.e. how a Signals transmitted and received using satellite standards. The complete unit consists of three sections; Satellite Uplink Transmitter, Satellite Emulator and Satellite Receiver. The satellite emulator receives signal from satellite uplink transmitter which can be analyzed and emulated using various satellite instruments like spectrum analyzer. The received signal is then retransmitted to satellite downlink receiver where the signal is retrieved. The signals which are used for transmission are Audio, Video, and digital data. A provision to connect function generator is also provided. Using the above setup concepts like baseband analog signal parameters, phenomenon of linear polarization C/N ratio, S/N ratio, fading of a received signal, digital baseband signal parameter propagation delays can be studied. Data sent from one computer can be received on another computer using satellite link. • Simultaneous communication of three different signals at each up-linking frequency. • Communication of external broad band digital and analog data and base band signals. • Choice of different transmitting and receiving frequencies. • Transmission and reception with Helix, Dish Antenna is provided
...more
Relay Chattering Unit
VSOFT provides Test benches and special purpose machine services to the customer from Industrial Automation and Measurement Domain. We develop test benches for particular customer product according to their requirement.
...more
single phase three phase polarity test transformer
VSET-EM-001 Control Panel is designed for study of Polarity and Ratio Testing on Single Phase and Three Phase Transformers Scope of Learning:- Study of Transformation Ratio in a 1 Phase Transformer. Study of Polarity in a 1 Phase Transformer. Study of Transformation Ratio in a 3 Phase Transformer. Study of Polarity in a 3 Phase Transformer.
...more
Percentage Differential Transformer Protection Relay-VSET-PS-050
VSET-PS-050 Control Panel is designed for study of Protection of Transformer against Differential Current due to the Fault and unbalance Load. Scope of Learning:- Study of NO Load Test on Three Phase Transformer. Study of Load Test on Three Phase Transformer. Study of OC & SC Test on Three Phase Transformer. Study of Polarity Test of Transformer. Study of Ratio Test of Transformer. Study of Percentage Differential Transformer Protection Relay. Study of Load Unbalance Protection. Study and Testing of L.L. Fault. Study and Testing of L.G. Fault. Study and Testing of L.L.G. Fault. Study and Testing of L.L.L Fault. Study and Testing of L.L.L.G Fault.
...more
omap l138 audio trainer kit
VSET-DCP-01 is a Trainer Kit designed for experimental study and Implementation of Audio, Image and Video Processing Algorithms. The LAN trainer is supplemented by a set of 4 exhaustive manuals covering the various aspects of LAN's. The unique feature of this trainer is an onboard Hub & Cabling setup via jumpers so as to minimize the loss of expensive cable during training.
...more
Mobile Phone (2G) Trainer Kit-VSET-MC-01
VSET-MC-01 Mobile Phone (2G) Trainer kit has capability of full duplex mobile communication. Provides basic theory and working fundamentals of a 2G hand set . This trainer kit designed with a view to provide network, power supply , charging & user interface circuits for their practical and theoretical study Scope of Learning:- To study and measure frequency band. T o study and measure the GMSK signals such as TX.1/ QRX1/Q. T o study and observe the system CLK. Observation of audio signal. To study and measure the power supply. Study of charging phenomena with fault Insertion. Study and measure PWM signal of UI circuit such as vibrator led buzzer. Measurement of led with fault insertion. Keypad study with fault insertion. Observe and measure the SIM card clk with fault Insertion
...more
Microprocessor 8085 Trainer Kit-VSET-MP-01
VSET-MP-01 Microprocessor 8085 Trainer Kit is designed for experimental study of 8085 Microprocessor. Scope of Learning:- HEX to ASCII and ASCII to HEX Code Conversion. BCD to HEXA DECIMAL Conversion Matrix Addition Separating EVEN and ODD numbers Fibonacci Series Fractional of numbers Largest Number in the Array Ascending and Descending Order DC motor interface Stepper motor interface
...more
LED TV Trainer Kit-VSET-AV-01
VSET-AV-01 LED TV Trainer has been designed with a view to provide theoretical and practical knowledge of a general High Definition TV and Gain the Knowledge about all parts like IC, speaker, PCB Board etc. It Provide a way to fully analyze LED TV. Scope of Learning:- Unit Objective Preventive maintenance of a LED Understanding control panel settings. Hardware Monitoring Study of power supply pin-outs Study and analyze analog signal on speakers Study and analyze signals on keypad interface Study and analyze AV signal with faults Study and analyze VGA signals with faults Study and analyze IR remote signals with faults Study and analyze LVDs signals with faults Study and analyze main board of LED TV Trainer
...more
LAN Trainer Kit-VSET-CN-01
VSET-CN-01 LAN trainer is a versatile desktop system that provides hands on experimentation & understanding of local area Networks. The field being diverse, this trainer has been designed with an aim to touch upon the various aspects of LAN's such as hardware & cabling, software configuration & protocols. The LAN trainer is supplemented by a set of 4 exhaustive manuals covering the various aspects of LAN's. The unique feature of this trainer is an onboard Hub & Cabling setup via jumpers so as to minimize the loss of expensive cable during training.
...more
Klystron Source X Band Test Bench - VSET-MW-01
VSET-MW-01 Klystron Source X Band Test Bench is designed for experimental study of Microwave Engineering. Scope of Learning:- Study of microwave components and equipments. Reflex Klystron as a Microwave source in laboratory and plot its mode characteristics. Measurement of the free space wavelength of the microwave (for TE 10 mode) with the help of the X-band microwave test bench and verify with its theoretical calculation. Verification of Port Characteristics of Microwave components Verification of Port Characteristics of Isolator and Circulator. Also calculation of insertion loss and isolation in dB. Study of slotted section with probe carriage. Measure the VSWR for various values of terminating impedances (open/short/matched termination).
...more

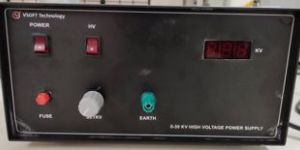

High Voltage Power Supply
It comes with high voltage resolution and makes it ideal for testing of load source in your work bench.
...more
Gantry Robot Trainer Kit VSET-RO-01
VSET-RO-01 Gantry Robot Trainer Kit is designed for experimental study of 3/2 axis Robot. Scope of Learning:- Study and Testing of Gantry Robot. Study and Developed the various type of Programs for Gantry Robot
...more
Fuse and M.C.B. Trainer Kit VSET-SG-001
VSET-SG-001Control Panel is designed for study and Testing All Type Fuse Wire and Characteristics of M.C.B. Scope of Learning:- Study of Working Principle of M.C.B. Study of Characteristics of FUSE Wire. Study of Characteristics of M.C.B.
...more
Bluetooth Trainer Kit VSET-WC-01
VSET-WC-01 Bluetooth Trainer Kit is designed for experimental study of BLUTOOTH Protocol. It provides hardware and Software tools to carry out study in simulation environment and also in real mode. Scope of Learning:- Study of Bluetooth protocol.
...more
Basic 8051 Microcontroller Trainer Kit-VSET-EK-01
VSET-EK-01 Basic 8051 Microcontroller Trainer Kit is designed for experimental study of 8051 Microcontroller and interfacing of peripherals with the Microcontroller Scope of Learning:- 16 x 2 Character LCD Display Interface. 16 x 2 Character LCD Display and 4x1 Keypad Interface. Onboard Buzzer Interface. Onboard LED Interface. Onboard Relay Interface. Onboard Bicolor LED Interface. 4x4 Matrix Keypad Interface Seven Segment Display Interface. Seven Segment Display and 4x1 Keypad Interface. ADC Interface. DAC Interface. DC Motor Interface. Stepper Motor Interface. Traffic Light Interface Onboard UART Interface.
...more

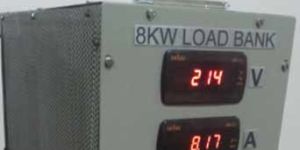

AC Resistive Load Bank
It comes with superior voltage / current resolution and makes ot ideal for testing pf power source in ypour work bench. These load Banks are for laboratory as well as for industry usage. LOAD Bank is supplied with MS Powder coated panel and front panel is provided with all metering devices and accessories. 5KW,8KW,10KW Wire Wound Resistors Short Circuit, Overheating, Over Current, Over Voltage protection Address
...more
RFID Integration Service
VSOFT provides RFID solutions. These solutions are used by various industries for RFID based employee tracking, industrial asset tracking, IT asset tracking, process tracking, store/warehouse management and many other applications. VSOFT provides RFID solutions and integration services, such as Design of RFID system Supply of RFID Readers/Antennas Selection and procurement of appropriate RFID tags. Printing customization of RFID tags as per the customers' requirement. Selection and procurement of RFID data Converters/ Gateways. Complete RFID system installation and commissioning. Design and development of customized GUI as per customers' requirement. Design and development of customized database.
...more
New Electronic Product Design Services:
Vsoft offers services to the customer from industrial automation and measurement domain. The turnkey electronic product design services offered by us are system architecture design capture pcb layout design design analysis embedded software development electronic manufacturing services (pcb fabrication, pcb assembly and testing) for engineering prototype and production. Our expertise in engineering printed circuit board design & development, embedded hardware & software development and product manufacturing provides complete solution to our customer.
...more
Machine Vision Solutions
VSOFT provides Machine Vision solutions. These solutions are used to provide imaging based automatic inspection and analysis in many industrial applications. VSOFT provides software design services such as Machine Vision Libraries etc. Functional Modules GUI VSOFT provides tailor made and friendly GUI according to end customers' requirement VSOFT also provides complete system integration services, such as Selection, Procurement and Integration of optical parts Design, Procurement and Integration of mechanical structure required in Machine Vision application.
...more
