Weight Indicators Dealers in Pune

• Country of Origin: India
• Type: Weight Indicators
• Weight: 10-20kg, 100 Tons
• Color: Blue
• Condition: New
• Display Type: Analogue
• Power: 24V DC

IND 320 is a specialized controller designed for batching & blending Applications. It is a Simple / Smart / Specialized terminal for all kinds of process industries catering to OEM''s / system integrators & end users markets.Key Features 128*32 dot -matrix OLED display, Friendly used Calfree TM 3 Batching recipes Multi Protocols support: MT Continous, Command, Modbus CE certified & UL approvals     Specifications:- · Display: 128x32 dot-matrix OLED display · 304 L stainless steel front: Aluminum frame · Type 4x and type12 protection - comparable to IP65 · Key: 4 flat switch membrane with tactile-feel keys, 1.2 mm polyester(PET) · Overlay Power: 20~30 V DC input · Lower Power Consumption: 8 W · Compliance and Approvals CE & UL · Digital Discrete Inputs/Outputs 1 input and 4 outputs on mainboard · 3 inputs and 8 outputs on extended DIO interface board. · Inputs Type: optoelectronic isolation input, · Status unavailable: 12~24 V DC high-level signal input · status available: 0~3 V DC low-level signal input: Outputs · Status available: High impedance · Status unavailable: Support 5 V-30 V Sinking Current · Max current: 200 mA per channel

• Brand Name: Planet Automation Systems

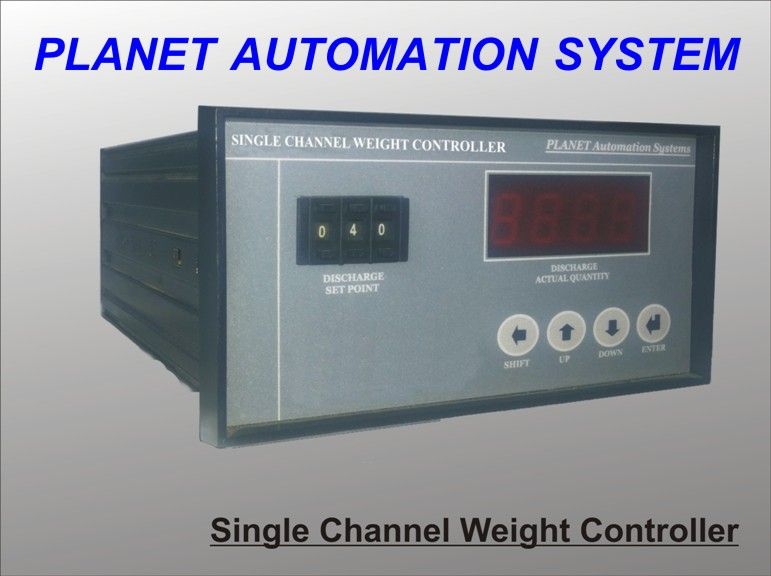

We offer Single Channel Weight Indicator. Single channel weight indicator is panel mounted weight indicator, which can wildly used in industrial as well as construction equipment, it is having good stability on industrial envier mental, and this indicator is made for sites and industrial use. Use 1) Concrete Mixer 2) Conveyor and hopper Weighing 3) Load, pressure, strength checking

Weight indicator (Intelligent Terminal) is a compact and powerful alphanumeric terminal, designed for numerous weighing applications. These weight indicators are available in friendly configuration and operation to meet the most demanding needs. The weight indicators supplied by us are known for providing speedy and accurate measurements. Features Of Intelligent Terminal Advanced micro- controller based technology In-buit line filter Auto zero maintenance 4 line 40 character lcd display with back light Memeory of 5000 tranactions 13 mm red led display, 25 or 50 optional parallel display Rs 232-c port for computer interface

• Type: Weight Indicators
• Shape: Round, Square
• Application: Weighing Goods
• Weight: 10-20kg, 20-30kg, 40-50kg, 50-60kg
• Color: Grey
• Feature: Durable
• Display Type: Analogue, Digital
• Weighing Capacity: 10kg, 20kg, 2kg, 500gm 1kg, 50kg, 5kg

We bring forth a wide range of Belt Weigher Indicator that is fabricated to cater the weighing application with precision. Known for easy operation and accurate measurement, our Belt Weigher Indicator is in huge demand in the market. These weighers display the instantaneous flow rates and the totalized flow. Besides, these systems are available over a wide range of flow rates, right from a few grams per second to hundreds of tons per hour, as per user requirement. We are also counted as one of the leading Manufacturers and Exporters of Belt Weigher Indicator. Popular for : Reliability Accuracy Durability Easy operation Simple design Specifications : Full Software Calibration Stainless steel weatherproof housing User selectable units for flow rate (tph or kg/s) User selectable units for total flow (kg or t) Provision for High Weight and Low Flow Alarms Provision for 4-20 m or 05/10 VDC output Applications : Check weighing systems Packaging /bagging /filling machines Flow measurement of solid material on belt conveyors, with or without closed loop flow Indication Belt speed instead of Encoder speed control

• Display Type: Digital
• Brand Name: Sprint
• Automation Grade: Automatic
• Usage/Application: Concrete Plant and Admix Dispenser
• Battery Voltage: 12V DC
• Operating Voltage: 190 to 260V AC

Weight indicator (Intelligent Terminal) is a compact and powerful alphanumeric terminal, designed for numerous weighing applications. These weight indicators are available in friendly configuration and operation to meet the most demanding needs. The weight indicators supplied by us are known for providing speedy and accurate measurements. Features Of Intelligent TerminalAdvanced micro- controller based technology In-buit line filter Auto zero maintenance 4 line 40 character lcd display with back light Memeory of 5000 tranactions 13 mm red led display, 25 or 50 optional parallel display Rs 232-c port for computer interface

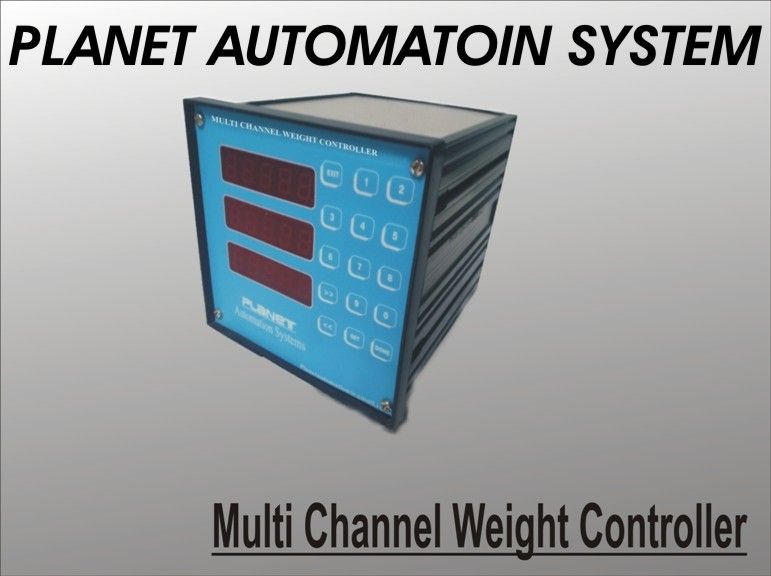

We are offering multi channel weight indicator. Multi channel weight indicator is panel mounted weight indicator, it is having up to 4 channel weighing input , it display 4 weight at the same time , which can wildly used in industrial as well as construction equipment. specifications brand: planet automation systems display: 6-digit, 7-segment, 1"25mm red color x 4 display weight channel: 1 channel, 2 channel, 3 channel, 4 channel weight capacity : calibrated up to 10,000 kg and more enclosure: 138 mm w x 138 mm h x 150 mm d, panel mounted keyboard: numerical keys, up, down, set, done, exit ( 15 keys) units: pounds,, ounces, kilograms, grams etc depend upon calibration display increment: default sample rate: 10 samples per second decimal point : 0.000, 00.00, 000.0, 0000 load cells: up to four load cell of 2vmv multi channel weight indicator is having good stability on industrial envoirmental, this indicator is made for sites and industrial use. Use: 1) concrete mixer 2) conveyor and hopper weighing 3) test bench

• Display Type: Digital
• Power: 24VDC, 6W
• Application: Checking Weighing, Filling, Bagging, Batching
• Material: Aluminum Housing
• Excitation: 10V 160mA

We are the leading supplier of this products.

It is single bin Programmable weight Indicator unit, From 10 kg to 10 Tone and it is used in various Types of Industrial Automation For Displaying Weight and it Control field Relay and other Electrical and mechanical Devises, Such as Relay, Contactor, Solenoid Valves, Electrical motor , etc It is Used In Following Applications     A) Weight Indicator B) Construct ruction line Automation ( Mixer) C) Industrial Weighing Purpose D) Input Device For PLC E) Other Custom Weighing
