Welding Positioner Dealers in Pune

We are counted amongst the foremost entities engrossed in providing a wide array of Welding Positioner. Provided products are used in diverse industries. These are designed under the guidance of our professionals to render maximum customer satisfaction. Our positioner enable better weld seam accessibility creating increased deposition rates. Even less experienced weld operators can safely manipulate our units while concentrating on welding functions. The boxed section design takes up minimal floor space and allows unrestricted movement throughout the work area. Many safety features have been incorporated into the structural, mechanical and electrical components of these positioner to ensure safe, productive operation. Product Details: Sturdy in design Precise dimension Robust construction Long working life Minimal maintenance

• Brand Name: CYCLOTRON
• Color: Red
• Country of Origin: Made in India
• Usage/Application: Welding/ fabrication/ Manufacturing
• Material: steel
• Automation Grade: Automatic
• Shape: Circular plate
• I Deal In: New Only

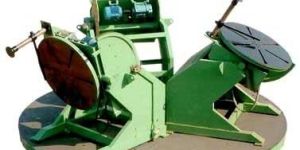

Welding Positioners aling the job to the best position for down hand welding for non circular jobs or for rotating circular jobs. Features : Light Duty Series • Ideally suitable for small jobs in the range of 50kg to 150kg. • Designed to give accurate and controlled movement. • Job can be tilted any side for convenient operation. • Face plate rotates with variable speed. • Available with optional accessories like torch stand, foot switch & operator pendant etc. Medium & Heavy Duty Series Covers wide range of jobs starting from 250kgs to 30000kgs. Designed and Manufactured for trouble free and easy operation. Fabricated with heavy sections which avoids defection under loaded conditions resulting in vibration free and smooth operation. Anti-fall arrangement for face plates gives additional safety. Positive locking tilting arrangement with instant braking arrangement ensures safety and accurate positioning. Rotary drive unit with AC Variable Frequency Drive (VFD) provides steplessely variable speed from 0.1 to Irpm for face plate. Earthing Arrangement with wear compensation gives uninterrupted Welding as well as sefety to the positioner elements. Tilting arrangement from horizontal 0 to 135 degrees ensures approch to all joints.

• Rotational Speed: 0.27 to 4.63 rpm

Gullcos Welding Positioner is a positive drive rotary turn table complete with mounting flange, drive and tilt mechanism and Microprocessor based pulse width modulation motor control. Standard and Programmable models are available. The welding positioner is driven by a low voltage permanent magnet motor and gearhead power unit assembly. The microprocessor motor control enables operator interface of start, stop, clockwise rotation, neutral, counter clock-wise rotation and infinitely variable control of the speed, within the range of the positioner model. The weld positioners rotation speed is electronically controlled using an optical tachometer located on the back of the gear-motor. Speeds within the range of the model are infinitely variable in both clockwise and counter-clockwise directions through a rotary speed adjustment potentiometer located on the remote control. Table tilt is manually set at any desired angle, from 0º through 90º, quickly and easily. Safety while using the positioner is greatly enhanced with Gullco's low voltage (24 V) control and power supply system.

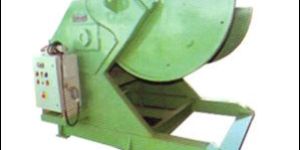

With the help of our proficient experts, we are manufacture high quality Welding Positioners. Our range of Welding Positioners is scrutinized under the experienced eyes of our professionals to ensure excellent quality. Further, we make available our complete range at very affordable price to our treasured clients. Construction : The main machine of positioner includes machine framework, tilting movement, rotation movement and conduct electricity device and control box. The steel plates and channel welding is the foundation of the equipments, all welding seam request to weld accord with one class of intensity Specifications : Face Plate : Circular/ Sq. c/s (with/without extension Arms)Drive : Variable Speed A.C. MotorJob Tilt : 0o to 135o OR +90o / -45o Technical Specifications ModelCapacity /Load W (Kg)Eccentricity e (MM) Centre of Gravity C.G. (MM) Rotational Speed (rpm)Rotational Torque (Nm)Tilet Torque (Nm)Table Diameter (MM)SRT-WP- 252520250.8 to 85Manual250SRT-WP- 505025300.5 to 513Manual300SRT-WP- 10010040500.25 to 2.540Manual500SRT-WP- 15015040500.25 to 2.560Manual500SRT-WP- 25025040500.25 to 2.5100440600SRT-WP- 500500801000.2 to 24001,200750SRT-WP- 100010001001250.1 to 11,0002,9001000SRT-WP- 200020001502000.1 to 13,0007,6001500SRT-WP- 300030001502000.1 to 14,50011,4001500SRT-WP- 500050002002500.1 to 110,00022,5001750SRT-WP- 10000100002002500.5 to 0.820,00048,0002000SRT-WP- 15000150002503000.5 to 0.637,50082,5002500SRT-WP- 20000200002503000.5 to 0.650,0001,000002500SRT-WP- 25000250002503000.5 to 0.662,5001,375003000

We bring forth a unique range of highly efficient Welding Positioner that is specifically designed for manual as well as automatic welding of round items. Available in various technical specifications, models, rotation speeds and capacities ranging from 100 Kgs to 20 tons, the Pipe Welding Positioner that we offer is highly demanded by our clients spread across the nation and thereby making our mark among the prime Exporters from India. Enhancing the quality of welding and work efficiency, our Pipe Bully Welding is supported by a worktable that has adjustable rotation speeds.

welding positioners aligns the job to the best position for down hand welding for non circular jobs or for rotating circular jobs.     features :   • light duty series• ideally suitable for small jobs in the range of 50kg to 150kg.• designed to give accurate and controlled movement.• job can be tilted any side for convenient operation.• face plate rotates with variable speed.• available with optional accessories like torch stand, foot switch &    operator pendant etc.medium & heavy duty series : covers wide range of jobs starting from 250kgs to 250 tons. Designed and manufactured for trouble free and easy operation.   fabricated with heavy sections which avoids deflection under loaded conditions resulting in vibration free and smooth operation. Anti-fall arrangement for face plates gives additional safety. Positive locking for tilting arrangement with instant braking arrangement ensures safety and accurate positioning. Rotary drive unit with ac variable frequency drive (vfd) provides steplessely variable speed from 0.1 to 1 rpm for face plate. Earthing arrangement with wear compensation gives uninterrupted welding as well as safety to the positioner elements. Tilting arrangement from 0 to 135 degrees ensures approach to all joints.     main advantages   • easy positioning of odd shaped jobs for downhand welding.• allows maximum flexibility in job handling.• with minimum handling. Maximum accessibility to joint is assured.• eliminates frequent usage of crane, reducing idle time.• increased production with reduced labour.• single handed job manipulation and welding reduces labour cost.• improved weld quality (even with unskilled operator) reduces weld defects and rejection.• adaptable for automatic of manual welding.• convenient for assembling intricate sub-assemblies.• ideal for in conjunction with column & boom.         special features of our design   • extremely stable and 'free standing' with the rated load. • rugged & robust design / construction. Enhanced 'cg' rating due to specific design,lowering the distance to the 'pivot point' from table. • forced diversion of 'earth return current' off the spindle bearings, avert bearing damage. • activation of mechanical 'stoppers' in case of limit switch failure.

• Color: Blue
• Warranty: 1 Year
• Brand Name: Carmac
• Material: MS
• Max Current: 500 Amp
• Table Diameter: 12 inch
• Capacity: 1 Ton

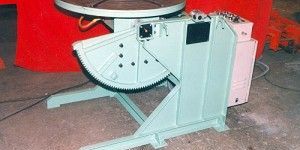

Manufacturing with steel fabrication. Variable or single speed table rotation through 360 degree and tilting fix speed at 135 degree.Positioners provide steel fabrication shops with the most up-to-date equipment for placing bulky fabrications in the 'downhand' position in the shortest possible time without the use of cranes and manpower. The positioners tables rotate at accurate and constant variable speeds and tilt through 135° with a high C.G. load rating covering almost all anglers for welding any angular job placed on it. Positioners can be supplied for interfacing with Column and Boom Manipulator.

Welding Positioners, Welding Accessories, Welding Column, Welding Rotator

Welding Positioner, Self Aligning Rotator, Self Centering Rotator

Special Features of our Design: Extremely Stable and Free Standing with the maximum rated load. Free standing design allows frequent change of site. Rugged and robust Design Construction. Generous Rotational and Tilt torque. Enhanced CG rating due to specific design, lowering the distance to the Pivot point from table top. Over rated, Pre-loaded and dust protected bearing arrangements. Forced diversion of Earth return current off the spindle bearings, averts bearing damage. Activation of mechanical Stoppers in case of limit switch failure.
