YOG ELECTRO PROCESS PVT.LTD Nana Peth, Pune, Maharashtra

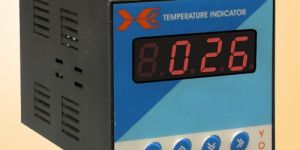

Specifications:- Input: RTD/Thermocouple. Range: For thermocouple- 0 to +999 ºC, For RTD(Pt-100)- 0 to 800 ºC Accuracy: 0.3% ±1ºC Power Supply: 230 VAC/ 24 VDC ±10% Indication: Seven Segment 3.5Digit LED Display. Operating Temperature: -10 to +60 ºC, Humidity: 0 to 90 %Rh Size: 96x96mm, 160x80mm, 72x72mm, 48x48mm, 48x96mm, 96x48mm

Specifications:- Input: RTDThermocouple. Range: For thermocouple- 0 to +999 ºC, For RTD(Pt-100)- 0 to 800 ºC Accuracy: 0.3% ±1ºC Output: 2Relay Output. Control Mode: On-Off control mode, or PID control mode. Power Supply: 230 VAC 24 VDC ±10% Indication: Seven Segment 3.5Digit LED Display. Operating Temperature: -10 to +60 ºC, Humidity: 0 to 90 %Rh

Specification:- Input:- Thermocouple(J,K,R,S) RTD(Pt-100) cj compensation for tc electrical & automatic. Range:- As per application. Indication:-Seven Segment LED 3.5 Digit 12″ size. Accuracy:- ±0.5% of FSD Supply:-230VAC ±10% Cut Out:- 72X72mm, 48X96mm, 96X96

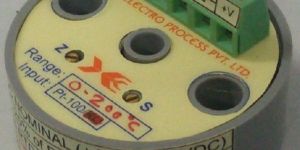

Features: Head mounting Rail Mounting Highly stable Analog design. Built in ‘cold junction compensation’ for Thermocouple. Linearization & 3rd wire compensation for RTD. Wide supply voltage range Compact & cost effective. Technical Specifications Input :- Pt-100 RTD, 2 or 3 Wire. Thermocouple Output :- 2 Wire 4 to 20mA Corresponding to Defined Input Temperature Range. Operating Voltage :- Nominally 24VDC, Can Range from 12V to 36V. Maximum Load in Loop:- Vin-820 Basic Accuracy:- +- 0.25% for RTD , +- 75% for Thermocouple. Linearization Circuitry Error:-

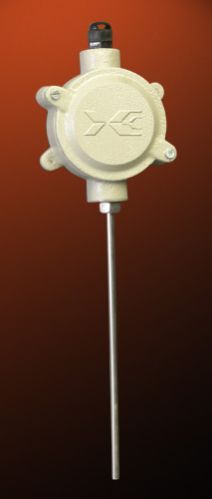

We offer the range of Temperature transmitter having highly stable analog output (Current: 4-20mA) for Thermocouple & Pt-100 Input. Technical Specifications Input :- Pt-100 RTD, 2 or 3 Wire. Thermocouple Output :- 2 Wire 4 to 20mA Corresponding to Defined Input Temperature Range. Operating Voltage :- Nominally 24VDC, Can Range from 12V to 36V. Maximum Load in Loop:- Vin-820 Basic Accuracy:- +- 0.25% for RTD , +- 75% for Thermocouple. Linearization Circuitry Error:-

Tubular Air Heaters provide rapid heat transfer for natural convection or forced air space heating in industrial process air heating systems. Finned tubular heaters start out as a standard tubular heater with the fins being attached on a custom built finning machine. Plain tubular heaters are available in straight lengths or bent as per customer’s requirement with threaded stud connection at both ends. Finned tubular heaters have enlarged surface area to help faster dissipation of heat. Forced air heating Thermal forming machines Direct immersion in liquids Comfort radiant heaters Welde

Specifications:- Types:- RTD (Pt-50, Pt-100, Pt-200, Pt-500, Pt-1000, Cu-2000) Assembly:- simplex, duplex Types of Insulation:- Ceramic Insulation Types of Sheath:- SS304, SS316 etc as per your application. Dimensions:- Diameter of sheath 4.7mm6.35mm etc as per Application. Shapes & Sizes:- As Per Your Requirements or Application. Thermowell : Nipple Union Nippl

Specifications:- Types:- J, K (Selectable) Types of Junction:- Grounded, Ungrounded Types of Sheath:- SS304, SS316 etc as per your application. Dimensions:- Diameter of sheath from 3mm to 6mm Sheath OD:- 3mm to 6.35mm. Shapes & Sizes:- As per the requirement or application Cable:- Tef/Tef, Tef/Tef/SS, Tef/Fg/SS, Fg/Fg/SS as per your requirement. Bush:- Teflon bush

Specifications:- Types:- ‘K’,’J’ (Selectable) Assembly:- Simplex, Duplex Types of Insulation:- Ceramic Insulation, Mineral Insulation Types Of Junction:- Ungrounded. Types of Sheath:- Ceramic Tube Sheath OD:- 12mm to 20mm Shapes & Sizes:- As Per Your Requirements or Application. Termination:- Flameproof Head Weatherproof Head.

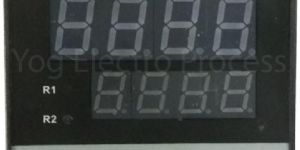

Features:- Micro controller Based design Time range from 0.1msec. to 99hours Multi-start Method imer Modes Programmable Up/Down Counting Software Lock EEPROM Memory No Need of Battery Watchdog Timer For Fail-Safe Operation Compact Design Specification:- 1.Range:999.9sec,9999sec,99.59min,9999min,99.59hour 2.Accuracy: 0.01% or 100ms whichever is greater 3.Mode: ON/OFF delay, Cyclic ON/OFF First 4.Counting Method: Elapsed time (UP)/ Remaining time (Down). 5.Input Signals:Start, Hold, Reset 6.Start I/P metod: Instantaneous/ Pulse/ Gate start. 7.System:Front Key Configurable ...

Timer – Universal Features:- Micro controller Based design Time range from 0.1msec. to 99hours Multi-start Method imer Modes Programmable UpDown Counting Software Lock EEPROM Memory No Need of Battery Watchdog Timer For Fail-Safe Operation Compact Design Specification:- 1.Range:999.9sec,9999sec,99.59min,9999min,99.59hour 2.Accuracy: 0.01% or 100ms whichever is greater 3.Mode: ONOFF delay, Cyclic ONOFF First 4.Counting Method: Elapsed time (UP) Remaining time (Down). 5.Input Signals:Start, Hol

Features:- Micro controller Based design Time range from 0.1msec. to 99hours Multi-start Method imer Modes Programmable UpDown Counting Software Lock EEPROM Memory No Need of Battery Watchdog Timer For Fail-Safe Operation Compact Design Specification:- 1.Range:999.9sec,9999sec,99.59min,9999min,99.59hour 2.Accuracy: 0.01% or 100ms whichever is greater 3.Mode: ONOFF delay, Cyclic ONOFF First 4.Counting Method: Elapsed time (UP) Remaining time (Down). 5.Input Signals:Start, Hold, Reset 6.Start IP metod: Instantaneous Pulse Gate start. 7.System:Front Key Configurable ...

Specification:- Feature:- Thermowells are mainly used on detachable thermocouples and RTDs or on the facilities of high pressure for later installation of thermocouples and RTDs They are also used on thermocouples with double protecting tubes Applicable under the conditions of high pressure and temperature, high flow rate media Thermowells are used to shield thermocouple elements…

Specifications:- Types:- ‘K’,’J’ (Selectable) Assembly:- Simplex, Duplex Types of Junction:- Grounded, Ungrounded Types of Sheath:- SS304, SS316, etc. as per your application. Dimensions:- Diameter of sheath 4.7mm6.35mm12.7mm or as per requirement. Shapes & Sizes:- As per the requirements or Application. Termination:- Weatherproof Head

Specifications:- Types:- ‘K’,’J’ (Selectable) Assembly:- Simplex, Duplex Types of Junction:- Grounded, Ungrounded Types of Sheath:- SS304, SS316, etc. as per your application. Dimensions:- Diameter of sheath 4.7mm/6.35mm/12.7mm or as per requirement. Shapes & Sizes:- As per the requirements or Application. Termination:- Weatherproof Head

Specifications:- Types:- ‘K’, ‘J’ (Selectable) Assembly:- SimplexDuplex Types of sheath:- SS304, SS310, SS316, SS446, Inconel 600 as per your requirement. Sheath OD:- 1.6mm4.7mm6.35mm8mm etc Shapes & sizes:- As per your requirement or Application Termination:- Flameproof Head.

Specifications:- Types:- J, K, T (Selectable) Types of Junction:- Grounded, Ungrounded (Isolated) Dimensions:- As per your requirement. Shapes & sizes:- As per the requirement or application Cable:- Tef/Tef, Tef/Tef/SS, Tef/Fg/SS, Fg/Fg/SS as per your requirement. Block:- Brass/ Copper.

specifications:- types: j, k (selectable) types of junction: grounded, ungrounded (isolated) types of sheath: ss304, ss316 etc. As per your application. Dimensions: diameter of sheath from 3mm to 8mm. (in exceptional case diameter can be increased) shapes & sizes: as per the requirement or application. Cable: fg/fg/ss as per your requirement. Termination: transition type.

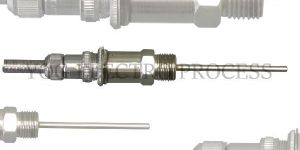

Specifications:- Types:- K Type Types of Junction:- Grounded, Ungrounded Types of Sheath:- SS304, SS316 as per your application. Dimensions:- Diameter of sheath from 0.80mm up to 25.4mm (In exceptional case diameter can be increased) Shapes & Sizes:- As per the requirement or application Connector:- K Type Quick Disconnect

Specifications:- Types:- K Type Types of Junction:- Grounded, Ungrounded Types of Sheath:- SS304, SS316 as per your application. Dimensions:- Diameter of sheath from 0.80mm up to 25.4mm (In exceptional case diameter can be increased) Shapes & Sizes:- As per the requirement or application Connector:- K Type Quick Disconnect.

Specifications:- Type :- ‘K’, ‘J’ (Selectable) Assembly : SimplexDuplex Types of Insulation:- ceramic insulation, Mineral insulation Types of Junction:- Grounded, Ungrounded. Types of Sheath:- SS304, SS310, SS316, SS446, Inconel 600 etc. as per your requirement. Sheath OD :- 1.6mm4.7mm6.35mm etc Shapes & sizes:- As per your requirement or Application. Termination:- Flameproof Head Weatherproof Head

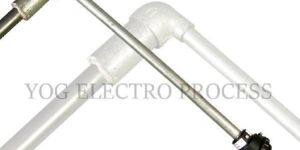

Specifications:- Type :- ‘K’, ‘J’ (Selectable) Assembly :- SimplexDuplex Junction:- Ungrounded. Types of Sheath :- Graphite Sheath OD :- 4.7mm to 25mm (As per application) Shapes & Sizes:- As Per Your Requirement or Application. Termination :- Aluminum head

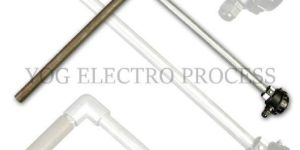

Specifications:- Type :- ‘K’, ‘J’ (Selectable) Assembly :- SimplexDuplex Junction:- Grounded, Ungrounded. Types of Sheath :- Cast Iron Sheath OD :- 4.7mm to 25mm (As per application) Shapes & Sizes:- As Per Your Requirement or Application. Termination:- Aluminium Head

specifications:- types:- k type thermocouple. Types of junction:- grounded, ungrounded range:- can use upto 200°c to 400°c types of sheath:- ss304, ss316 etc. As per your application. Shapes & sizes:- as per the requirement or application. Cable:- tef/tef, tef/tef/ss. Connector:- k type omega miniature connector.
