Zawar Gauges & Tools Private Limited Satara Road, Pune, Maharashtra

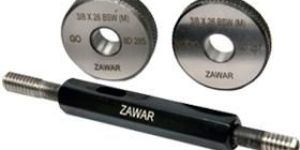

BSW/ BSF/ Whits threads are used where clerance between male & female threads is to be controlled. This uses Imperial system of units. Specification •  Basic Dimensions- BS 84-2007 & Gauging Practice: BS 919 Part II - 2007. Manufacturing Range Thread Plug & Ring Gauges from Diameter 1/8 to 6" , TPI 40 to 2.5

Used for checking wear out gauges For plug gauges wear check ring gauge are used For ring gauges wear check plug gauges are used Specification: as per gauges wear limit gauges are designed

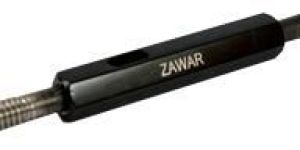

UNJ Threads are used in Aeronautic Industry for Imperial system of units. Specification •  BS 4084-1996 OR ISO 3161-1999 & ISO 15872-2002 Manufacturing Range Thread Plug Gauges & Thread Ring Gauges from No.4 (0.112") to 6" Diameter & TPI 48 to 4 TPI. For more Technical Details on UNIFIED Threads download, Technical Information sheet from link given below. For Unified component dimensions, download Component Dimensions sheet - under development.

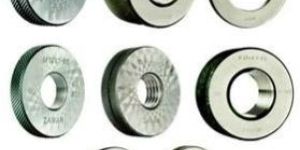

Manufacturer & Distributor of Thread Ring Gauges. Our product range also comprises of Plug Gauges, Ring Gauges and Plain Plug Gauge.   Our clients can avail from us a sophisticated array of thread ring gauges which is available with us in 1 mm to 200 mm diameter and 1:16 taper, as per the requirements of our clients. We manufacture our range of thread ring gauges by using high-grade raw materials which is at par with the quality standards. Developed using advanced technology, these products offer high precision working and durability. Furthermore, our range has gained immense popularity across the country for dimensional accuracy and robust construction. Our range includes the following: Whitworth Metric Unified B.S Cycle B.S.P.T B.S.P N.P.T.F N P T NPSM / NPSF / NPSI Trapezoidal Buttress Acme

We offer to our clients a distinctive range of Plug Gauge which is fabricated according to the prevailing industry standards. These products cater to the needs of automobiles, hydraulic equipment, oils wells and pneumatic equipment.   Thread Plug Gauge   We are engaged in offering a superior range of Thread Plug Gauge to our clients. These products are manufactured by using quality raw material in order to ensure high efficiency. Our range comes in the following dimensions: 1 mm to 200 mm diameter for parallel threads 1:16 taper & diameter 1/8 inch to 8 inch for taper threads These gauges are properly checked by our quality controllers to deliver a flawless and quality end product. Furthermore, we also provide customized options to our clients as per their specific requirements. In our range, we have the following: Metric Whitworth Unified B.S Cycle B.S.P.T B.S.P N.P.T N.P.T.F NPSM / NPSF / NPSI Trapezoidal Acme Buttress Gas Taper Gauges NGT Gauges

We manufacture Dish Thread Gauge, Level Gauge, which is assembled with pair of auto shut off ball check valve arrangement that ensures in them maximum safety standards. Designed for perfection, our range is use in all types of pressure vessels including tanks and boilers. These level gauges can also handle high pressure liquid efficiently.

We are counted among renowned manufacturers and suppliers of Taper Thread Ring Gauges. In order to ensure quality, we check the products at numerous levels of production process. Our range includes BSPT, NPT and metrix taper models and thus, fulfills the demands of varied engineering sectors. These gauges are also tailor made as per customers' requirements and demands.

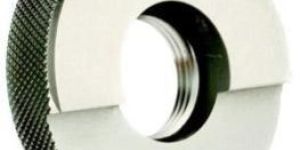

We hold expertise in offering a premier range of Ring Gauge to our clients. These quality gauges are used for checking the external diameter of a cylindrical object. Taper Ring Gauges   We specialize in providing a premier assortment of Taper ring gauges to our clients. Fabricated by using superior raw material, these products are offered in BSPT, NPT, NPTF, NGT and Metric Taper. These products are rigorously tested by our quality controllers in order to maintain high level of quality. Our sophisticated gauges are widely demanded across the country for features like high utility, durability, unmatched quality and high reliability. Moreover, our technologically advanced range is offered in different sizes according to the specifications of our esteemed clients.

Manufacturer & Distributor of Plain Plug Gauge & Plain Plug Gauges. Our product range also comprises of Plug Gauges, Ring Gauges. Taper Plug Gauges   Leveraging on our expertise, we are capable of providing a unique gamut of Taper Plug Gauge. These gauges can be availed from us in sizes ranging from 1/16” to 8 ” in taper 1:16, Taper 3:25 and 1:8. Manufactured by using excellent tungsten based oil-hardened and non-shrinking steel (OHNS), our range is rigorously tested in order to ensure uniform micro structure and hardness. Furthermore, we offer these high quality products as per the specifications stated by our valued clients. This range includes NPT, NGT, NPTF, BSPT and gas cylinder checking gauges.

Leveraging on our expertise, we are capable of providing a unique gamut of Taper Plug Gauge. These gauges can be availed from us in sizes ranging from 116” to 8 ” in taper 1:16, Taper 3:25 and 1:8. Manufactured by using excellent tungsten based oil-hardened and non-shrinking steel (OHNS), our range is rigorously tested in order to ensure uniform micro structure and hardness. Furthermore, we offer these high quality products as per the specifications stated by our valued clients. This range includes NPT, NGT, NPTF, BSPT and gas cylinder checking gauges.

We manufacture and supply a qualitative range of Gas Taper Gauges that are designed using advanced technology. These gas taper gauges are used for checking cylinder neck and valves, measurement as well as inspection. These gauges are manufactured as per IS 7202-1974 & BS 341 - 1991 ( Taper 1:8 ) , IS 9122-1979 DIN 477 - 1984 IS 9122-1979 (Taper 3:25) Made from graded raw material, our range is widely appreciated for its accuracy, reliability and durability and user friendliness. Further, we also quality test our range on varied parameters to meet the prevalent industrial standards.

The Snap Gauges are a form of gauge, which is used to control the flow through. It is a limiting gauge that can be used as temporary or permanently for measuring gaps. These Snap Gauges are installed to check if the apparatus is set in the preset dimension or if it plummets at preferred turbulence. Our offered products are highly applauded in the market and we ensure that only the quality products are delivered to our valued clients. These usually bear a "C" shaped frame with the aperture(s) at the opening of the "C". These are shaped and grounded from a single piece of metal giving it high strength.

We offer to our clients a distinctive range of Plug Gauge which is fabricated according to the prevailing industry standards. These products cater to the needs of automobiles, hydraulic equipment, oils wells and pneumatic equipment.     When it comes for Plug Gauge, we offer a broad variety to our reputed clients for measuring the external diameter of a cylindrical object. The inner diameter of the ring gauges is generally made up of steel which is very standard in quality. It can be ordered in many tolerance grades like English or metric. The Plug Gauges manufactured are broadly applied in automobile industry and is very helpful in determining ‘blind’ holes and ‘through’ holes

We offer to our clients a distinctive range of Plain Plug Gauge which is fabricated according to the prevailing industry standards. These products cater to the needs of automobiles, hydraulic equipment, oils wells and pneumatic equipment. While developing these products, we ensure to use fine raw material which is known to enhance the overall quality and durability of the range. Our range of products offers accurate measurement & reading and are appreciated for high performance, reliability and limited maintenance. Our range comprises the following: Snap gauges Measuring pins Master setting rings OD setting masters Plain Plug Gauges are used for attribute Inspection of Plain Internal Diameter measurement. Specification: Basic Dimensions: ISO 286 Part 1 & 2 - 2010, Gauging Practice: DIN 7164 - 1966 & IS 7859-1975. Manufacturing Range: • Diameter 0.5 mm - 20mm are supplied in reversible pin type Design. Diameter 6 mm - 40 mm are supplied in Taperlock Design. Diameter 40 mm - 100 mm are supplied in Trilock Design. Diameter 100mm - 300mm are supplied in Plate type design.

Specification • ISO Standard:Basic Dimensions: ISO 7/1-1994 & Gauging Practice: ISO 7/2-2000,, BS & European standard: BS EN 10226-3 - 2005 Indian Standard: Basic Dimensions: IS 554 - 1999 & Gauging Practice: IS 8999-2003.   Manufacturing Range Taper Fullform Thread Plug - Gauge No.1 Taper Fullform Thread Plug with relief - Gauge No.2 Parallel Fullform Ring - Gauge No. 3 Taper Plain Ring - Gauge No.4. Taper Modified Thread form Check Plug - Gauge No.5 Parallel Modified Thread form Check Ring - Gauge No. 6 Size Range covered is from pipe diameter 1/16" to 8".

NGT (National Gas Taper) Threads are used to check Gas cylinder valve stems and cylindrical neck threads. (Taper 1 IN 16 on diameter) Specification • American Handbook H-28 Part II - 1957 * 3/4"-14 NGT size is manufacured as per IS 9121-2005 , on customer request. Manufacturing Range Taper Thread Plugs - Gauge L1 & Gauge L9 Plain Taper Plug Gauges to check truncation of Minor diameter - Gauge C1 & Gauge C2 Taper Thread Ring Gauge L1 & Gauge L8 Master Check Plug to check Rings L1 & L8 Plain Taper Ring to check crest Truncation of Major Diameter. Sizes covered are from 1/8 NGT to 1.1/2 NGT.

We are engaged in manufacturing and supplying a very high quality range of NGT Gauges. We manufacture thread plug gauges under continuous inspection and thorough check up from our highly skilled team. Our range is in huge demand among clients across the nation.   The NGT Gauges offered by us are manufactured by us using best grade material and as per the set industrial standards. These NGT gauges are used for the purpose of calibration of gas cylinder threads activities, measurement and inspection in various industries. Engineered with precision, our range of gauges is acknowledged for its optimum performance, accuracy, user friendly operations and better durability standards. In addition, we are also capable to provide our range as per the specific requirements of clients. Features: Quality material used Timely delivered Widely used

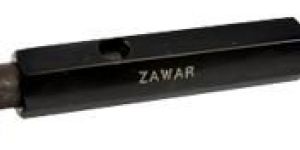

MJ Threads are used in Aeronautical Industry - for Metric system. Specification •  ISO 5855 - Part I, II, III - 1999, OR ANSI B 1.21 M - 1997 & ANSI B1.22 M - 1985. Manufacturing Range Thread Plug Gauges 1.6 mm - 300 mm Thread Ring Gauges : 2 mm - 300 mm.

We are engaged in manufacturing and supplying a very high quality range of Measuring Pins. This product also finds application for the inspection of the micro-meters as well as gear measurements. Our range is in huge demand among our valued clients across the country.       Manufactured by using high-grade raw material, our range of measuring pins offers optimum performance and durability to our clients. Designed as per the set industry standards, our range can be availed form us in varied sizes and designs. Our range of measuring pin boxes is packed in quality wooden case which is treated with rust prevention powder. Furthermore, these products are properly lapped to impart high surface finish. Specifications:   These products are hardened to 60-63 HRC length 40 mm for range below 1.5 mm & length 50 mm for range above 1.5 mm MFG tolerance + 0. 002 mm on diameter carefully packed in plastic cases With wide range in step of 0.1, 0.02, 0.05, 0.01, 0.005 as per client's requirement

Fabricated using high quality raw material, our range of industrial thread ring gauge, thread ring gauges are highly precised and durable. Available in variety of dimensions ranging from 3- 260 mm in diameter and 1:16 taper these are designed and manufactured as per IS, BS, DIN and American standards thus creating huge demand in the global market.

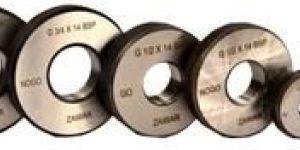

Pipe / G Threads are used for general purpose pipe fittings where pressure tight joints are not required on Threads. Specification • ISO Standard :Basic Dimensions: ISO 228 (1) - 2000 & Gauging Practice: ISO 228 (2) - 1987. • British Standard: BS 2779 - 1986. • Indian Standard : Basic Dimensions: IS 2643 - 2005 & Gauging Practice: IS 10216-1988. • Japanese Standard: JIS B 0202-1999. Manufacturing Range Pipe Diameter 1/16 to 6" Above 6" Diameter sizes (PF) are manufactured as per JIS B JIS B 0202-1999.

We are one of the eminent manufacturers and suppliers of Gauge that includes thread plug gauge, thread ring gauge, taper thread ring gauges, taper thread plug gauge, plain plug gauge, measuring pins, plain ring gauge, snap gauges, taper gauges, concentricity gauge. depth gauges, master gauges, customized gauges as per drawing, and requirement.

We are known as a leading and prominent manufacturer of a very high quality range of Dish Thread Gauge. These products are known for its quality range and durability and due to that these are in huge demand among clients across the country and are available at market leading price.   We manufacture Dish Thread Gauge, Level Gauge, which is assembled with pair of auto shut off ball check valve arrangement that ensures in them maximum safety standards. Designed for perfection, our range is use in all types of pressure vessels including tanks and boilers. These level gauges can also handle high pressure liquid efficiently.

BSPTr Threads can provide pressure tight seal on threads without use of a sealing compound. They are used in pipe assemblies where pressure tight joint is required on threads, without use of sealing compound. Two Types of Gauges are recommended System A & System B. Specification • Indian Standard: Basic Dimensions - IS 554 - 1975 & Gauging Practice - IS 8999-1979. Manufacturing Range Taper Thread Plugs & Rings for Pipe sizes 1/16" to 8" in both System A & System B Design.
