ESP Insulators Dealers in Raipur

• Material: Porcelain, Alumina, Ceramic, FRP
• Application: High-voltage
• Tensile Strength: 125-150Mpa
• Temperature: High Temperature, Medium Temperature
• Surface Treatment: Color Plated
• Usage: Insulation

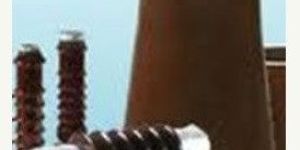

The company is chiefly engaged in the supplying the finest ESP Insulators in all across the country. Our ESP Insulators are provided in a comprehensive range, which is known for its longer working life. This range consists of Cylindrical Support Insulator, Conical Support Insulator, and Shaft Insulator. Description : The hollow supporting ESP Insulators for electrostatic precipitator is majorly used for high-voltage insulation and sealing of the hanging rods for the overhanging frame of the corona electrode, which is passing through the housing of the electrical field. Outer & inner surfaces of the bushing are covered with brown or white glaze, and two end surfaces being ground. The hollow supporting insulators conform to the stipulations of GB/T772-2005: Technical specifications of high-voltage porcelain insulators. They can work at temperature up to 250deg.C with working voltage classes from 72kv to 110kv, and compression failing load not less than 500kn.
