RUDRA UNIVERSAL EXPORTS Kabir Nagar, Raipur, Chhattisgarh

specially developed electrode for multi pass crack free build up for sugar mill rolls, machinery components and bearing areas. Smooth and steady deposition at lower currents. For cladding carbon steels to improve their wear and corrosive resistance that the deposits can resist corrosive attack of sugar can juice, water and other contaminants.  Size - 3.15 x 350 MM, 3.15 x 450 MM, 4×350 MM, 4x450MM

Material : Stainless Steel

Finishing : Non Polished

Current Type : AC

Condition : New

Application : Welding Purpose

Certification : ISI Certified

Length : 0-250mm

Feature : High Clarity, Proper Working, Smooth Texture, Temperature Maintained, Uniform Finish, Water Proof

Has a unique flux formulation for low input welding of MILD STEEL with minimum distortion. It produces excellent weld bend finish at extremely low current finely ripped welds soft and steady arc easily and rrestrike and self detachable slag.  Welding condition - DC(+) OR  AC SIZE(mm) -           2.50x350    3.15x350    4.00x350   5.00x350 CURRENT(AMP) -   50-80         80-120     110-160   140-200     WELDING INSTRUCTION - Keep at dry place.

Surface Finishing : Polished

Color : Silver

Length : 5Ft

Cutting and piercing of manganese steels, cast iron, copper and its alloys, nickel and its alloys, aluminium etc. Excellent for pre pairing rivets, dismantling works at sites cutting out unwanted metal in castings. No need to use oxy-acetylene or compressed air. The electrode is an all position one and operates with both AC and DC(-) using standard electric arc welding equipment.  SIZE(mm) -  3.15            4.0             5.0 AMPS -          150-250     200-300    250-400

Current Type : AC

Application : Welding Purpose

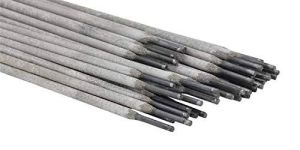

CI (NON-MACHINABLE) hot and cold welding of cast iron parts of grey cast iron, nodular graphite iron, and malleable iron subject to heavy wear. Joining of cost material with steel. The electrode is most suitable for the surfacing of the above materials. Castinng, machinery parts, bearing blocks, frames, foundry castings etc. SIZE - 3.15 x 450 MM, 4×350 MM

Material : Cast Iron

CAST IRON ELECTRODE (MACHINABLE) is low heat input electrode for high strenth, machinable welds and overlay on grey and alloy cast irons. Best suitable for crack free joining of cast iron to steel and to nickel alloys. Weld defect rectification in casting of grey cast iron, malleable and S.G. cast iron. APPLICATIONS - on engine heads, pump casting, mufflers, exhaust manifold ingot moulds and variety of cast iron machine parts. It is very suitable for welding heavy and highly stressed CI sections to repair cracks on CI parts., Maintain inter pass temprature around 1500C. WELDING CONDITIONS - DC(-) or AC SIZE(mm) - 2.50x50    3.15x350     4.00x350     5.00x350 AMPS -          50-70         80-100        100-120      130-150
