Bending Machine Dealers in Vavdi, Rajkot

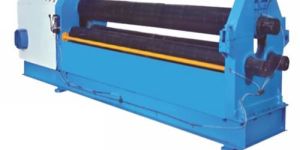

Easy to maintain and useful for various jobs.   Modern design and rigid structure.   So simple mechanism that even semi-skilled worker can do accurate job.   Very useful for g etting Cylindrical shapes and better performance. It works with 3 Rolls pyramid principal. Bottom rolls are fixed and driven by Gears and warm Reduction Gear Box. Top roll rotates in fixed position and can be adjusted up & down manually by adjustable screws, in mechanical version and by Hydraulic system & cylinder In Hydro mechanical version.   Housing are made from M. S. plate of suitable strength and mounted on heavy base frame, Rolls are made from forget steel and perfectly machined for accurate result. For correct feeding and grip axial grooves are provided on botton rolls. Screw jack/extra Hydraulic cylinder is given to keep top roll horizontal when formed shell is to take out.   Our machines are fitted with Electric Brake Motor and Movable Control Panel, so that machine can be stopped at any stage of operation, hence the shape in rolling as per requirement is most possible and due to the movable control panel machine can be operated very easily.   Machine is fitted with total 2 nos. Gear Box, Electric Brake Motor, Push Button Type Movable operating switch board and Electric control panel for easy & safe operation.   We only offer the machine with double Gear box, one is warm Gear box and another is spur reduction gear box, due to this the fatigue in operation and over load on electric motor and warm reduction Gear box is totally avoided even when machine is Working in over capacity and more over bending operation be come more easy.   Whole machine is made out of quality prime materials.   Only Top Roll Pressing (Up-Down) and opening closing of drop end are through hydraulic system & cylinders all other operations are carried out mechanically in hydro-mechanical version. In mechanical version Top Roll Pressing is manually by means of screws and opening/closing of end-dropper is manual or motorized.   Hydro- Mechanical Machine required lees man power compare to mechanical version, the same directly Effect your production rate and finish job value.   Apart from above the rates are more competitive in its range.

• Usage/Application: BENDING
• Brand Name: TECHNEX
• Automatic Grade: Automatic
• Country of Origin: Made in India
• Model Name/Number: TM CNC BEND
• Bending Material: Mild Steel
• Material: Ms

We are offering plate bending machine. Specifications: the pinch cum puramid principle the machine based on this principle combine the advantages of three roll pyramid type, three roll initial pinch type and four roll pinch type machines. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. An error in pre pinching can be corrected even after the shell is completed. It can pre-pinch and roll the plate without removing the plate from machine after first insertion. Inclined movement of bottom rolls provides wider bending span as the plate thickness increases, and better grip in thinner plates. cone bending the machine has inherent feature for conical bending without any extra attachments. The two bottom rolls are inclined by disengaging the dog clutch by lever fitted on the machine. Even pre-pinching of cones can be done. salient features top roll drive for rolling thin plates. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. Plate squaring(aligning) arrangement. Small dia. Top roll for small shell rolling (for reduced capacity).

Specifications:   The Pinch Cum Puramid Principle   The machine based on this principle combine the advantages of three roll pyramid type, three roll initial pinch type and four roll pinch type machines. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. An error in pre pinching can be corrected even after the shell is completed. It can pre-pinch and roll the plate without removing the plate from machine after first insertion. Inclined movement of bottom rolls provides wider bending span as the plate thickness increases, and better grip in thinner plates.   Cone Bending   The Machine has inherent feature for conical bending without any extra attachments. The two bottom rolls are inclined by disengaging the dog clutch by lever fitted on the machine. Even pre-pinching of cones can be done.   Salient Features   Top roll drive for rolling thin plates. Highest degree of pre-bending can be achieved and only the smallest possible width of flat remains. Plate Squaring(aligning) arrangement. Small dia. Top roll for small shell rolling (for reduced capacity).

Standard Accessories:SM Series    : One Set of Roll Tool, Screw Operating Rod, Handle, Nut Spanner & Storage Cabinet.SB Series     : One Set of Roll Tool, Gear Box, Electric Motor, Control Panel, Screw Operating Rod & Nut Spanner.SBH Series  : One Set of Roll Tool, Gear Box, Hydraulic Unit, Electric Motors, Pressure Gauge, Control Panel, Screw Operating Rod & Nut Spanner.SBD Series  : One Set of Roll Tool, Gear Box, Hydraulic Unit, Electric Motors, Pressure Gauge, Control Panel, Screw Operating Rod & Nut Spanner..

• Weight: 1000-2000kg
• Voltage: 230V
• Power: 1-5kw
• Driven Type: Electric
• Durability: Long Life
• Resistivity: Rust Resistant
• Material: Metal

• Brand Name: Ramato,Ramato
• Material: Casting
• Raw Material: Casting
• Driven Type: Hydraulic
• Bending Material: Any
• Color: Blue
• Condition: New
• Automatic Grade: Semi Automatic, Manual, Fully Automatic, Automatic
• Type: Bending Machine

Rajlaxmi Machine Tools Manufacturing HMP And RAMATO Make Pillar Drill Machine, Bench Drilling Machine, Radial Drilling Machine, Drilling Cum Milling Machine, Milling Cum Drilling Machine, Tapping Machine, Welding Machine, ARC Mig TIG Spot Welding Machine, Grinder, Polisher, Belt Grinder, Buff Polisher, Buffing Machine, Shearing Machine, Bending Machine, Winding Machine, Bench Grinder, Pedestal Grinder, Automatic Belt Grinding Machine, Cutoff Machine, Cutting Machine, Air Compressor, Pressure Pump, Car Washer, Wood Working Machine, CNC Machine and All Type of Machienry and Tools From Rajkot Gujarat Bharat (INDIA). Rajlaxmi Machine Tools Offers Manual Pipe Bender, Hydraulic Pipe Bending, Motorised Pipe Bender, Round Ring Type Three Roller Pipe Bending machine From Rajkot Gujarat Bharat (INDIA).

• Type: Automatic
• Certification: CE Certified
• Weight: 100-1000kg
• Voltage: 220V
• Power: 3-6kw
• Warranty: 2 Years
• After-Sales Service Provided: Spare Parts
• Driven: Electric

Jayson Machine's (Impex) is acknowledged amongst reliable Manufacturers & Suppliers of Pyramid Roll Bending Machine. We manufacture Pyramid Roll Bending Machine using premium grade materials and component as per specified technical parameters. Our Pyramid Roll Bending Machine is low in maintenance and high in performance. Due to it less wear and tear quality, our Pyramid Roll Bending Machine is highly demanded by nationwide customers. We are committed to provide Pyramid Roll Bending Machine at very reasonable price.

• length of: 2500mm to 5000mm

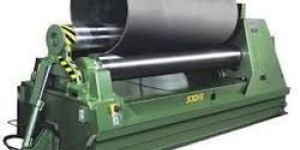

Pyramid base principle 3 & 4 Roll Hydraulic Plate Bending Machine Used for roll bending of plates with pre-pinching Product like Vessel & Tanks, Cone, Silos, Over & Under Storage Tanks, Heavy Transmission Pipe, etc.

The company is a recognized Manufacturer and Supplier of Hydraulic Pipe Bending Machine based in India. Our highly efficient Hydraulic Pipe Bending Machine is widely used for bending different types of pipes of various lengths and thicknesses. Hydraulic Pipe Bending Machine that we offer is automatic and thus very easy-to-operate. Available in different models, our Hydraulic Pipe Bending Machine is highly in demand by the clients owing to their excellent performance and pocket-friendly price.   Specialist : Steel Furniture & Railing, Pipe Bending's Gareda (Hand Bender Gareda), For round ring bending Machine & U Type Bending Machine maker & all kind of pipe bending gared.

We are manufacture & exporter of ring bending machines and these machines is use for channels, angles, flats & pipe. These ring bending machines are made from premium quality of raw materials.

• Automatic Grade: Automatic
• Material: MS
• Power Source: Electric
• Lenght: Up to 10 feet
• Capacity Tonnage: 60 to 125 Ton
• Thickness: Up to 16 mm

Manufacturer of milestone brand high quality hydraulic shearing machine, Press Brake, Shearing Machine and Plate Bending Machine,plate rolling machine,cutting machine,cuff & collar cutting press and all types of Workshop Machinery & Sheet Metal forming machinery with reliable prize.

• Application: Industrial
• Brand Name: RC
• Shape: Round
• Roller Diameter: 50 - 219 mm
• Roller Length: 200-3400 mm
• Surface Coating: Paint Coated

• Type: Bending Machines
• Color: Black, Brown
• Voltage: 110V, 220V, 380V
• Condition: New, Used
• Operating Type: Automatic, Fully Automatic, Manual, Semi Automatic
• Usage: industrial
• Specialities: High accuracy, Durable, High Strength,Energy Efficient

This Gold Silver Platinum Coin Bars Minting Embossing Press Machine is a steel fabricated body hydraulically operated C Type 40 Ton Hydraulic Press Machine. 40 tons press specially designed for minting gold and silver coins bars and medals. This is an upstroke coining press with higher ram travel speed and with extra hydraulic cylinder for return stroke to increase the production. The coin minting press is equipped with hydraulic power pack consisting of piston pump, electric control panel board operated directional control valve, relief valve, pressure gouge and standard hydraulic accessories. Automatic Option Also available.

We are manufacturing and supplying an exquisite range of bangle & banding machine. Features: hassle free operations minimum maintenance long operational life.
