Bharat Pattern Works GIDC, Rajkot, Gujarat

We are offering timing belt driven coiler. Features : completely on timer belt drive. ensures noiseless and maintanance free working. delivery speed 300 mtrsmin. available in can size 600mm dia. & 1000mm dia.

We are offering table calendar roller unit. Features: high speed, noiseless runing, easy maintanance and easy setting between the calandr roller. suitable for lrriter c 11, c 12, c 13, textool, loyal and nse card.

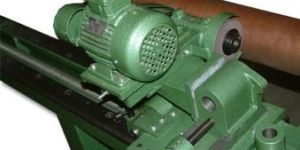

We offer multy roller mounting machine. Features : basic frame working width-from 1600mm at 3000mm lengths on request. suitable for carding cylinder wire and doffer wire, feed roll and re directing roller wire, blow room beater wire, licker-in wire interlocking and grooved type. we provide a. C. Gear motor, driving unit with variable drive unit for give drive to rollers. the machine has grinding attachment for high spot of wire on mounted rollers. interlocking attachment fited on traversing slide with bearing guideance systems. Safty lock one way provided, wire tension indicator with tension plat for cylinder, doffer, interlockong wire for licker-in, for web transfer roller wire.

We offer motorized traverse wheel grinder. Features : replacement of stone is easy and economical. also for riter all model card. motor 0.37kw. l. 1850 x w. 260 x h. 360mm. net weight 50kg. Gross wt. 110kg.

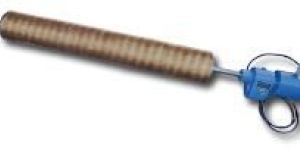

We are offering motorized stripping roller. Motor 0.37kw. L 1850 x w 200 x h 250mm net weight 40kg. Gross wt. 100kg.

We offer metallic wire mounting machine. Features : traversing head with bearing guidance system. safety locked one way traversing head can be lifted end of the cross tube. wire tension indicator with tension plate. harden guide roll enable either front or side mounting of the wire. wore bobbin stand with brake. micro butt welder for welding the joints. soldering iron for solder the wire end on the roller.

We offer manual operated arbour greasing machine. Features : greasing tank having 2 kg capacity. machine is operated by single handle with dual function, arbour is pushed upward to the nozzle and pump the grease.

We offer licker in wire mounting machine. Features : specially design for mounting of licker in wire of all makes 37 45 width cards. Suitable for mounting of interlocking and grooved type licker in roll feed roll stripper roll, mounting of blow room opening roller. grinding unit fitted on traversing screw for grinding off high spots of licker-in wire. burnishing roller to clean bare licker-in rollers and to polish the licker-in wire. and to polish the licker -in wire. soldering iron extra inter locking wire mounting attachment with require tension plate. feed roller ( double wire) mounting attachment.

We are offering flat top tear off machine. Features : easy removal of used flat top from c.i. And aluminium flat bar. quick and simple setting up and quick working cycle for all flats without further setting. prevent bulking of flat due to manual operation.

We are offering flat end milling machine. Features : for milling worn out flat ends, bring the original accuracy of heel & toe by using flat milling machine with fixed cam arrangement. clamping of flat by pneumatic operated clamp. novel arrangement of fix cam for accurate and easy heel & toe milling.

We offer flat drive conversion kit. Features : replacement of cyclogear gear box for flat drive for rieter c-4 card. remove flat drive motor and both cyclogear. install new gear box and drive will be come on cylinder pully.

We offer motorized traverse wheel grinder. Features : replacment of electromagnetic clutch & pneumatic belt shifting system for lr c-12 & c-13 card improve production up to 20% to 25% motor driven from inverter without any maintenance.

We are offering grinding machine. Features : the card bend grinding machine grinds off the variation to +- 11000' ensuring accurate setting between cylinder and flat tops - the critical region where the actual carding actin is performed. leads to improvement in carding quality. motor 0.5kw. l. 1580 x w. 500 x h. 500mm. netweight 140kg. Gross wt. 240kg.

We are offering bare cylinder grinding machine. Features : grinding cylinder & doffer to +- 11000 accuracy. closer uniform setting between cylinder and doffer possible. motor 2.2kw. l. 1990 x w. 305 x h. 600mm. net weight 60kg. Gross wt. 100kg

we are offering Automatic Flat Grinding Machine. Features : 4 Nos Flat Grind At a Time With Help Of Ceramic Grinding Roller or Emery Flat Roller.The Power Full Suction Unit Fitting In Machine For Collection Of Dust Particles. Grinding Accuracy +- 0.02 mm. Centralize Lubri Cutting System. Machine Has One Set Setting Plates Puitable For Any Make Of Card(Required More Set, it Will be Extra. Connecting Load – 1.87 KW. L – 1950 mm x W 860 mm x H – 1365 mm (Approx). Net Wt. – 1100 kgs (Approxi) Gross Wt. – 1800 kgs –(Approxi).

Wea re offering automatic arbour greasing machine. Features : machine working is very simple you can greasing both side beuring at a time co th volumatric quantity setting of ring from and speed frame arbours. machine working capacity 600 to 800 arbours strokehour. prevent extra wastage of grease. Ensure a clean operation. connected load 0.37 kw. 3 phase.

We are offering apron doff units. Features : trouble free performance. easily tension adjustment for apron belt. belt driven heavy duty bearing's & heat treated gears for maintenance free working. we can supply apron doff unit for below carding machine.

We are offering on card flat grinding machine. Features : save the time because flats from the machine need not to be removed. easy to install on card. drive-via motor assembly or via belt from card cylinder drive depending on the type of the machine. holding fixture to be provided by card manufacturer.

Features : CARDING FRONT PLATE, BACK PLATE & LICKER-IN COVER CARDING MOTE KNIFE CARDING UNDERCASING RIETER C-4 CARD CYCLO GEAR TUPE GEAR BOX.
