Bottle Washing Machine Dealers in Rajkot

• capacity: 1500 kg/hr

Boretech China, year 2011, fully automatic, 1500 kghr capacity, pet bottles recycling washing line. For conversion pet bottles scrap into pet flakes. Plant is in excellent condition having environment friendly process. Plant is having complete line from pre washing, bale feeder conveyor, hot and turbo washing, dryer, scrapper to pet storage and up to fully automatic packing system. PLC operated panels for controlling the system

We are offering bottle washing machine, automatic high speed linear (tunnel type) bottle washing machine automatic linear vial washer machine is used for the washing of pharmaceutical glass vials. We are having two different models of vial washer which provided output of 120 vials per minute and 240 vials per minute. These models are most suitable for the online untouched vial filling production line. salient features:- * compact cgmp model. * provides production output up to 250 vials per minute. * all contact parts made from high quality stainless steel aisi ss 316l. * machine structure & other parts made from aisi ss 304 * ss tanks & trays made from ss 316l by argon welded with round corner. * ss pump made from ss 316l with mechanical seal monoblock pump. * ss filter housing made from ss 316l. * all nozzles made from ss 316l. * special pocket system ensures easy and trouble free washing of vials from outer and inner side. * indexing motion makes easier for syringes to move inside vial, when it is in stationery motion. * no change parts are required from 5 ml to 30 ml vial. * washing cycles can be adjusted as per customer requirement. * user friendly machine, even semi skilled operator can operate the machine very easily. * a special clutch device is incorporated for stoppage of machine in the event; vial is over turned or over diameter. * variable a.c. Frequency drive for main drive and conveyor. * pumps with tank (60 litres each) 2 nos. * in feed wire woven belt for feeding of vials. * hdpe material vial pockets. * machine is totally robust and withstands continues operation for long working hours without any trouble. * machine is equipped with plc system & printing facility with passwords. process operation:- vials pushed from in feed tray and then move on wire woven conveyor belt, which align the vial in correct position, to enter in to the carrier pocket with help of oscillating guide rails. Oscillating arm deliver the vial inside pocket in mouth down position over spraying nozzles. Multijet sprayers fixed at the top cause the total external and internal surface to be washed. To avoid any possible cross contamination between two different waters, each washing station is provided with an independent circuit. Carrier pocket is moving with indexing motion. When the baskets have completed their motion the needles are lifted. They penetrate the vials, spraying jets of water or compressed air then return down. The baskets movement then advances by one station. Each station of vials passes through the washing cycles selected. The duly washed vials then delivered to the out feed tray with neck opening upward and then automatically re ordered to sterilizing tunnel with back pressure.

• Model: HMPL–LTBW
• Bottle Size: 10 ml to 500ml (with the help of change parts)
• Output Speed: 3000 to 6000 Bottles/Hour
• No. of Pockets: 10
• Working Height: 850 ± 50mm Adjustable
• Electrical | Main Motor: 1HP / 415 V AC / 50 Hz
• Power Supply: Pump 2 Nos.
• 1HP x 3 = 3HP / 415 V AC / 50 Hz:
• Electric Heater: 3 KW
•  : Conveyor
• 0.5HP / 415 V AC / 50 Hz:
• Tank Capacity: SS 316 60 Liter
• Wash Cycle: 8 Inner + 3 Outer
• Cycle Time: 3.5 Second for each wash + 1.5 Second for travelling
• Water Consumption: 400 Liters / Hour / Cycle
• Air Consumption: 2.5 Kg/cm² / 20 CFM
• Net Weight: 1400 kg Approx.
• Dimensions (LXWXH): 1150 mm (L) x 2500 mm (W) x 1550 mm (H) Approx.
• Change Parts: Bottle Holding Pocket

• Suitable for :: 30ml to 200ml Bottles,
• Bottle Size :: 32mm to 60mm Diameter and 38mm to 180mm Height*
• Washing type :: Linear Continues Motion with Stationery Drive
• Air Consumption :: 25 to 30 CFM
• Water Consumption :: 550 to 700 Litre per hour for each washing zone (depending on bottle size)
• Washing Zone:: Five zone can be set as per required sequence
• Pumps and Water Tank :: 2nos. Each 6000 Ltr. Per Hour capacity Centrifugal Pump and 50 Ltrs. Tank
• Compressed Air :: 30 CFM
• Electrical :: 415 VAC 3 Phase 50Hz and 220 VAC Single Phase Power Supply (50/60 Hz)
• Power :: 5.0 H.P.
• Speed :: Max. 240 Bottles per minute depending on Bottle Size
• Conveyor Height :: 815-940 mm
• Overall Dimensions :: 3250 mm (L) x 2450 mm (W) x 1675mm (H)

• Main Motor: 1 HP / 415 Volts / 50 Hz
• Pump Two Nos.: 1 HP x 2 = 2 HP / 415 Volts / 50 Hz
• Electrical Heater: 3 Kw.
• Conveyor: 0.5 HP / 415 Volts / 50 Hz

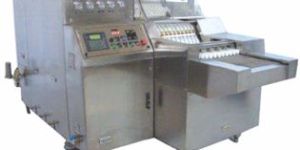

The Pack Well High Speed Linear Bottle Washing Machine is most ideal for Round Bottles and finds wide application in PHARMA, FOOD & BEVERAGES INDUSTRIES. The automatic loading arrangement facilities loading of bottles on to SS wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to Turn Table. Operation : Three-cycle rinsing allows flexibilities of various wash cycles such as fresh water, dematerialized water etc. as per the rinsing requirement of bottle. All the pumps are made of SS and all the water contact parts are made of SS 316 on a heavy base of SS structure. In tunnel design is such that separation is maintained between feeding zone and discharge zone of the cleaned containers. All the mechanical drives are separated and isolated from the washing zone. Approved materials only are used for construction, together with a careful choice of components, thereby taking in to consideration all aspects of sanitation and consequence complying with the pharmaceutical G.M.P. requirements. The quality of rinsing is ensured through 3 sets of inner and 2 sets of outer nozzles accurately placed to direct the jet at center of the bottle and the bottle comes out with water totally drained with minimum droplets of water.   Salient Features : High-pressure spray nozzles ensure perfect wash of Bottles. Interchangeable wash sequences. Totally fabricated from SS Materials, including the basic frame. CNo change parts required for washing of round bottle saving time of change over. (Change Parts require for Flat bottles & if change of neck size). All parts coming in contact with washing zones / jet are made from SS 316 materials. The machine suitable for handling washes of round and flat glass bottle (With help of change parts). Water re-cycling arrangement is possible as per customer’s need. Machine is totally rigid and with stands continuous operation for long working. Hours without any trouble. Higher capacity centrifugal pump to wash bigger container. Third Tank & pump can be fitted (optional).

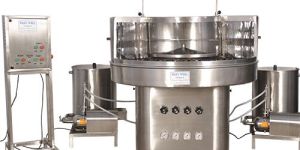

Rotary Indexing Type Bottle Washing Machine is specially designed for the output upto 96 BPM of different sizes of bottles. Machine has provision for 4 types of internal and one external washes, of different media without mixing of wash media. This is GMP model, with water saving, jump protection (for plastic bottles), filters, etc. as optional features. Loading and unloading of bottles is manual.   SALIENT FEATURES No mixing of washing media. Each wash at two stations. Common Neck Holder upto 28 mm. Easy changes over. Material of construction S.S. 304 or S.S. 316. Optional features – Water saving features, filters, hot water wash etc.. No skill required for operating the machine. Suitable for Pet bottles also. For bottle dia. above 90 mm – different model available.

• Capacity: 75 Ltrs. S.S. 304 (2 Nos.)
• Working Height: 860 to 910 mm

Geneva Mechanism. Four inner (included one air wash) & one outer. Sequence of washes to customer's choice. Easy operation. Stationary nozzels eliminate contamination of water cycles. Easy loading and uploading. Bottel guide especially for lightweight bottel.Individual solenoid valve for each washing sequence, that eliminates carbon plate and other accesories reduce leackage and maintenance to minium.Higher capacity centrifugal pumps to wash bigger bottels (500 & 100 ml.).The stationary nozzles avoid chipping of bottle necks.Pumps and tanks are mounted on portable stand for easy maintenance.Seprate panel control to avoid any circuit due to sprayingof water.S.S. glycerin fill pressure meter.

• Machine Dimension: 2740 mm (L) x 1370 mm (W) x 1675 mm (H)
• Case Dimensions: 2950 mm (L) x 1570 mm (W) x 1875 mm (H)

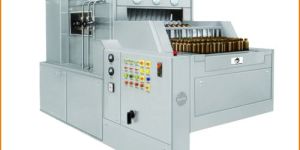

HIGH SPEED LINEAR BOTTLE WASHING MACHINE The automatic loading arrangement facilities loading of bottles on to SS wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to Turn Table (Optional).

• Capacity: 24-30-40-60BPM
• Machine Type: Manual
• Voltage: 440V
• Features: Automatic, Control Panel Included, Can be customized .
• Quantity Per Pack: 12-24 Bottle
• Automation Grade: Automatic
• Bottle Type: Pet
• Packing Material: Plastic Pet

We offer Bottle Washing Machine. Rotary Vial Washing Machine Model ARVW-120 suitable for 2 ml to 30 ml Vials, with in built 2nos. S.S. Tank and 2nos. S.S. Centrifugal Pumps. Fully automatic machine with Mechanical loading platform and vertical collection at outlet. Machine has a series of 13 Jets in each wash to clean each vial with maximum timing unlike other models, which have one nozzle per vial.

Features: Geneva Mechanism. Four inner (Included one air wash) & one outer. Sequence of washes to customer's choice. Easy operation. Stationary nozzles eliminate contamination of water cycles. Easy loading and unloading.
