C Frame Hydraulic Press Dealers in Rajkot

Although Advanced Machine Design has a wide variety of hydraulic presses for many different applications; our hydraulic press designs can be broken down into basic categories to include: two post presses, four post Presses, C-frame presses, vertical presses and horizontal hydraulic presses. The most common press design is the four post hydraulic press. This design is the most versatile as a result of having no size limits, and can be adapted to nearly any process. The four post press design can be configured in a vertical or horizontal position as the process and space available dictate. Precise control Technologies ensures that the four post presses are precise and efficient. Operator access is allowed from all four sides of the hydraulic press so it is very well suited for many different applications. The C-frame press derives its name from the shape of the frame. The primary advantages to the C-frame design are an open work area and increased accessibility. The C-frame press features become even more advantageous when multiple presses are used for progressive operations with automated material handling moving parts from press to press. The C-Frame hydraulic presses, however, are generally limited in maximum tonnage due to the design.The two post hydraulic press is basically a hybrid of the previous two designs. It has good accessibility of the work are for the operator and maintenance personnel while generally allowing for higher tonnage ratings than the C-frame press. Advanced Machine Design Company utilizes over 26 years of engineering knowledge and experience to design and manufacture heavy duty state of the art hydraulic presses. Our presses are available in standard designs or can be customized to individual specifications. Advanced Machine Design Company Hydraulic Presses can be supplied with entry and exit automated material handling with the value added of purchasing an entire turnkey system from one vendor. Standard Press Features: Optional Accessories: 1.  PLC Control with digital operator interface2.  Meets or exceeds OSHA regulations for safety3.  Heavy duty industrial design with 4 to 1 safety factor4.  Guarding to individual specifications with E-Stop circuits5.  Minimal deflection design6.  Overload protection7.  NEMA rated panels8.  Oil cooler9.  JIC/NFPA standard components10. IEC rated electric components11. Full tonnage throughout stroke or cycle 1. Light curtains2. Pressure strips3. Remote system monitoring4. Remote diagnostics5. Die tables6. Die loaders7. Die clamping8. Die storage9. Local or centralized controls Special Feature:  These presses offer maximum access to tool area for tool changing & component feeding Applications Slide guidance can be either twin pillars or face slide. Hydraulic power pack is inbuilt & all valves are manifold mounted for easy & quick maintenance & a pressure relief valve protects against overloading of the press.

• Color: As per requirement
• Product: C frame hydraulic press
• Tons: 40-400 Tons

YUVA’s rigidly guided C-frame designs are engineered to resist deflection or “yawning” using gib-guided ram bolsters or precision graphite impregnated bronze bushings. While three-sided access to the forming area is appealing (or required) for many applications, C-frame presses are typically best suited for applications needing smaller bed sizes and lower tonnages, like assembly.

• Finishing: Polished, Powder Coated
• Machine Weight: 1000-2000kg, 4000-5000kg
• Packaging Type: Wooden Box
• Pressure: Medium Pressure, High Pressure
• Usage: Sheet Bending, PET Bottles
• Specialities: Rust Proof, Long Life, High Performance, Easy To Operate
• Bed Size in mm: 200mm, 300mm, 400mm

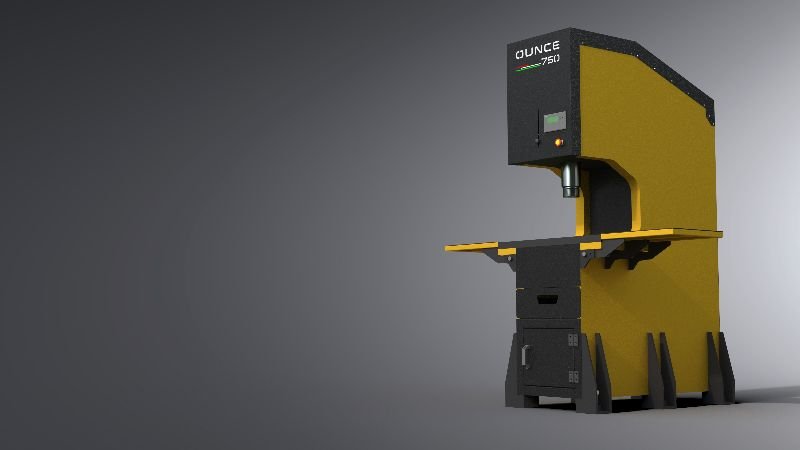

• Brand Name: OUNCE
• Material: Mild Steel
• Shape: Rectangular
• Color: Yellow
• Voltage: 220V
• Condition: New
• Phase: Three Phase
• Country of Origin: India
• Operating Mode: Automatic
• Machine Structure: Vertical
• Type Of Press: C-Type

• Condition: New
• Size: Standard
• MOQ: As Per Client Requirement

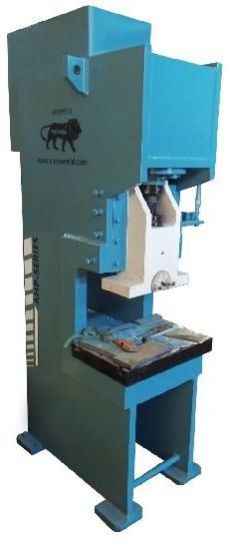

We manufacture and supply C superior quality Frame Hydraulic Press. The C Frame Hydraulic Press provided by us has rigid and sturdy steel welded construction for minimum deflection of the frame. The Frame Hydraulic Press which we are providing is compact with an inbuilt hydraulic power pack for multi productivity. The Frame Hydraulic Press is operated with most advanced Electronic control. Frame Hydraulic Press manufactured by us, is easy to install, economical and operates with high speed. Application Straightening Punching Molding Bending Drawing Assembling Riveting We also Manufacturer on Customer's requirement. (SPM)Operating System with Push Button Penal Control (Standard).Operating System with PLC CNC (Optional) Safety Feature -  Hand Entry Resist Sensor, Body Safety Guards Cover, etc. (Optional) Fast Production. Easy Operation. Heavy Body Structure. Very Low Maintenance. High Durability & Reliability. High Quality & Performance. Very Low Maintenance. With Barcode Scanning Technology. Standard Brand Raw Materials (Available everywhere in World). Pump & Valve Make -  Veljan Denison, Rexroth, Yuken. Hydraulic System Make -  Jacktech, Poly Hydrone. Electric Moto Make -  Siemens, ABB or Havells. IE2 Standard or Higher. Cylinder Hard Chrome Plated, Grinding & Honing. Cylinder Seal -  Chevron Seal, Wiper Seal, ‘O’ Ring, Road Seal, Bore Seal (‘U’ Seal) & Guide Strip. Cylinder Seal Make -  Kastas.

• Capacity: 10 ton to 100 ton
• Phase: Three Phase
• Frequency: 50 Hz
• Voltage: 220-440 V
• Material: Mild Steel
• Power: 2-20 HP
• Brand Name: Perfect
• Automatic Grade: Semi Automatic

Avail from us a quality assortment of C Frame Power Operated Hydraulic Press which is procured from reliable vendors. The C Frame Power Operated Hydraulic Press we offer sis extensively used in varied industries. At rock bottom prices we Supply, C Frame Power Operated Hydraulic Press within the scheduled time frame. Features :  Resistant to adverse conditions Supreme strength Dimensional accuracy Enduring performance

CapacityIn Tonnes Bed Size Throat Day-Light Stroke Motor H.P. 5 235x235 115 210 100 2 15 300x300 150 225 150 3 25 375x375 200 300 175 3 40 450x450 250 350 175 3 60 525x525 300 400 200 5 75 600x600 325 450 200 5 100 675x675 350 500 200 5 150 750x750 375 550 225 7.5 200 750x800 400 600 225 10 OVERALL DIMENSIONS ARE IN mm, APPROXIMATE & MAY BE CHANGED WITHOUT PRIOR NOTICE.

C Frame Press, hydraulic plc machine, Deep Draw Press
