Crane Control Equipments Dealers in Rajkot

Rotary geared type Limit Switch is basically consists of heavy duty worm gear drive. The worm gear unit is built in a cast housing fitted on main body of Limit Switch. The cam shaft which extends from behind the gear in to housing, accommodates the cams adjustable actuators which are fitted on the cams. These actuators strikes the contact finger of respective contacts Function : Limit Switch is to stop the mechanism of drive at the extreme clock wise anti clock wise position. These Rotary Limit Switches are particularly suited for use on reversing drives such as Electric Hoists, Winches, Over Head Cranes, Traversers etc.

Embicon Manufacturing Crane Radio Remote, Pendant station, Anticollission device, Thruster Brake, Crane Panle, Ac Drive panel and All crane control system and Automation system.

• Material: Plastic
• Application: Material Handling
• Brand Name: Top Crane
• IP Rating: IP-65
• Distance Range: 0-100 mtr
• Remote Type: RF Remote Control

• Brand Name: TELECRANE
• Color: ORANGE
• Condition: NEW
• Power Source: 110V AC
• Max. Lifting Height: 100 MTR
• Model Number: F21 E1B

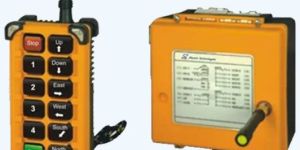

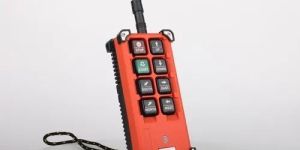

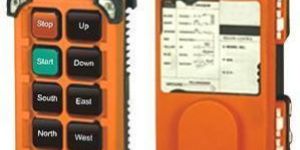

We are offering radio remote control. the radio remote control of electro power is designed with advanced technology these design satisfies all requirements in diverse industries, its programmable systems are suitable for different function settings applied in various equipment. radio remote control can be fitted as standard device for various material handling equipment applications such as overhead crane, bridge crane, jib crane, tow truck, truck tail, concrete pump truck, tower crane, gantry crane, monorail, hoist, lifting equipment, conveyor, furnace door gate, construction machineries. we have a tiny module, designed to reduce user fatigue and to improve operating performance and safety. we ensures that smoothly operation under severe environmental conditions. Especially where there is a serious interference and temperature change. we are design durable, economical and low-maintenance structure the unique outstanding features such as: • low power consumption. • transmitter and receiver are programmable: all the functions can be configured and modified by simply using its program. On windows base to meet a several of applications. (inching, interlock, non-interlock, normal, toggle…etc.). • standard modules with interchangeable parts assembly. • copier makes duplicate an identical transmitter or receiver in a minute, as replacement or repair required. • customized label stickers: including button symbols, changeable languages. • billion unique id codes for maximal security. • self-diagnosis and multi-warning indications, provides quick and easy maintenance and after service. • pre-wire output cable makes installation tasks easier and clearer.

• Country of Origin: India
• Type: Radio Remote Control
• Material: PVC
• Brand Name: SHIV
• Application: EOT CRANE

Low cost, low consumption: 2 AA batteries  Over 4.3 billion unique ID code available  Temperature range: -40 ~ 85  Structure:Glass-Fiber PA  Control distance: up to 100 meters  Transmitter Power: 3V DC  Receiver Power: 440V AC  8 single step push buttons  Up / down, East / west, North / south can be set as to mutual inhibition or not.  Power key can be set to start, acceleration, toggle switch, general or other functions.  Output contact capacity: 5A sealed relay output (AC 250V/10A relays, 5A fuse contacts).

• Phase: Three Phase
• Frequency (Hz): 50 Hz
• Protection Clas: IP 65
• Distance Range: 100 Meters
• Temperature Range: -40 Degree Celcius-85 Degree Celcius

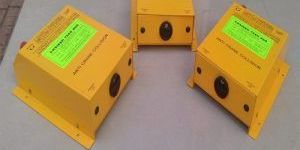

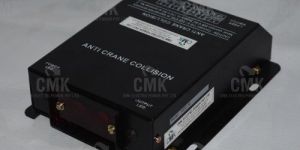

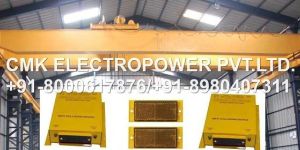

We are offering anti crane collision switch the anti crane collision switch is designed to avoid the collision of two adjacent cranes in the same bay running on the same rails. This system when installed on the two adjacent cranes will avoid the collision of two cranes. The system works on the principle of retro -reflective infrared waves. It consists of an emitter and sensor module and a special reflector. The emitter emits the infrared waves in the direction of the reflector. The reflector reflects these infrared waves back to the sensor. The sensor senses the presence of these reflected infrared waves and activates an alarm signal and stops reduces the speed of the crane . Thus if the two cranes are away from each other then the reflected waves will not reach the sensor and the cranes operate normally. The distance between the reflector and the sensor to detect the presence of infrared waves can be adjusted with the help of the potentiometer provided on the system. The maximum distances between the two cranes to generate the alarm signal can be maximum 10 meters. The anti collision system is specially designed for the crane application and is suitable for the continuous duty. specifications: measuring range: 1 to 10 mtrs sensors at distance: 3 meter alarm signal: 10 meters

• Material: Metal
• Application: In automobiles,cranes
• Power Supply: 110V AC to 230V AC

• Application: Material Handling
• Voltage: 450 V
• Remote Type: RF Remote Control
• Distance Range: 100 MTR/300 MTR

• Material: Aluminium
• Brand Name: CMK
• Voltage: 210V
• Phase: Single Phase
• Frequency: 50 Hz

• Material: Plastic
• Color: Orange
• Warranty: 1 Year
• Usage/Application: EOT Crane
• Model Name/Number: F21-E1B
• Brand: Telrcrane
• Range: 100 Mtr
• Input Voltage: 36V-440V AC
