Deck Cranes Dealers in Rajkot

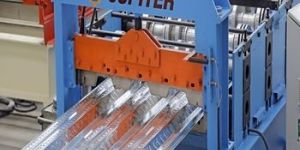

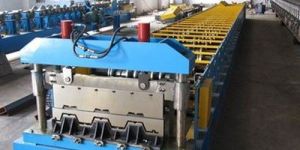

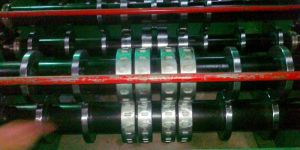

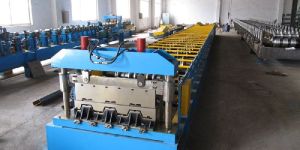

We are known as the prominent Manufacturer, Exporter and Supplier of high quality Decking Roll Forming Machines. Decking Roll Forming Machine can be customized as per the needs of our clients. Decking Roll Forming Machines are highly demanded by our clients due to its superior performance and strength. We offer range of Decking Roll Forming Machines to our clients at reasonable prices. Features Highly durable Quality engineeringTough structureAccurate measurementHigh Performance

• Automatic Grade: Fully Automatic
• Material: CR, HR, GP
• Voltage: 440v-50Hz-3phase
• Number of Forming Stations: 30
• Outer Diameter of Shaft: 90
• Main Motor Power: 25 HP
• Roll Forming Speed: 5-8 meter/min
• Yield Strength: 500 Mpa
• Cutting System: Hydraulic,Automatic
• Weight of Coil: 5000kg
• Length of the Machine: 25 Ft Approx
• Weight of Machine Approx: 10 Ton
• Min. Width of Coil: 200 mm
• Max Width of Coil: 700 mm
• Min. Thickness of Coil: 1.5 mm
• Max Thickness of Coil: 2.5 mm
• Adjust Type: Handwheel
• Automation Level in Performance: P.L.C Controlled Length
• Accuracy Level: Length : +/- 2 M.M.
• Bend / Twist: 1.5 MM/MTR
• DIMN: +/- 2 M.M
• Tank Capacity: 200 Ltr
• Motor: 5 HP, 3phase, 1440 RPM, Flange, ABB
• Direction Control Valve: NG-06-24v-DC
• Pump: 1P series 27 LPM
• Section Filter: SC3-30
• Return Line Filter: T1-F2-08-B25 (Hydro line)
• Level Guage: Lg-03 (hydro Line)
• Working Pressure: 90 kg/cm2

• Automation Grade: Semi-Automatic
• Voltage: 220-440 V
• Brand Name: Sensitive
• Power: 2-10 kW
• Usage/Application: Industrial
• Material: Mild Steel
• Job Thickness: 0.5-1 mm, 0.1-0.5 mm, 1-2 mm
• Max Sheet Width: 200-400 mm, 0-200 mm, 800-1000 mm
• Capacity: 6-10 ton/day
• Phase: 3 Phase
• Frequency: 50 Hz

• Warranty: 1 Year
• Condition: New
• Brand Name: JUPITER
• Port: Mundra Port, Nhava Sheva Port
• Place of Origin: Gujarat, India
• Capacity: 20 Machine Per Month
• Company Name: Jupiter Roll Forming Machine Pvt. Ltd.
• Supply Ability: 20 Unit/Units per Quarter
• Packaging Details: As per customer requirement.
